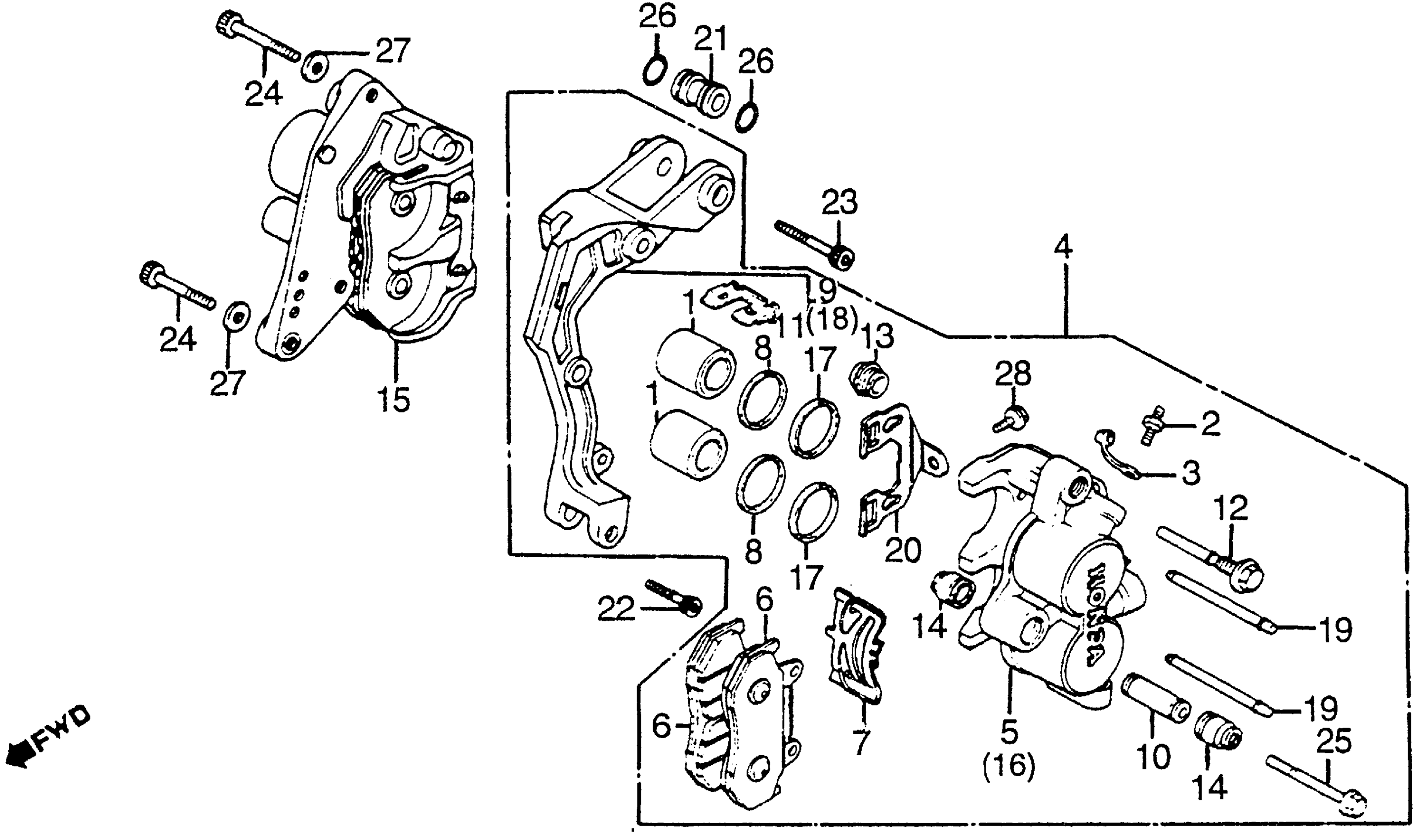

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR.

06455-MJ1-405

Unavailable

NI

PAD SET, FR. This part replaces 451A0-MJ1-670.

06455-MJ1-405

Unavailable

1

PISTON

43107-MA7-006

$45.55

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

CALIPER, L. FR. This part replaces 45100-MB3-007.

45100-MB3-017

Unavailable

4

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-MB3-008

Unavailable

5

CALIPER, L. (NOT AVAILABLE)

45101-MB9-781

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-701.

45105-MJ1-673

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-702.

45105-MJ1-673

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MJ1-672.

45105-MJ1-673

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MJ1-673

Unavailable

7

SPRING, PAD

45108-MA3-006

$6.28

8

DUST SEAL

45109-MA7-006

$5.31

9

BRACKET, L. FR. (NOT AVAILABLE)

45110-MB3-006

Unavailable

10

SLEEVE

45111-MA3-006

$13.38

11

RETAINER, BRACKET

45112-445-631

$8.98

12

BOLT, PIN

45131-MA3-006

$17.59

13

BOOT B

45133-MA3-006

$5.46

14

BOOT, PIN

45133-166-016

$3.85

15

CALIPER ASSY., R. FR. (NOT AVAILABLE) This part replaces 45200-MB3-008.

45200-MB3-018

Unavailable

15

CALIPER ASSY., R. FR. (NOT AVAILABLE)

45200-MB3-018

Unavailable

16

CALIPER, R. (NOT AVAILABLE)

45201-MB4-006

Unavailable

17

SEAL, PISTON

45209-MA7-006

$6.61

18

BRACKET, R. FR. (NOT AVAILABLE)

45210-MB4-006

Unavailable

19

PIN, HANGER

45215-MA3-006

$12.77

20

PLATE

45217-MJ0-006

Unavailable

21

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

22

BOLT, SOCKET (6X25)

90105-MJ1-000

$6.31

23

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

24

BOLT, SOCKET (10X40) (NOT AVAILABLE)

90164-460-840

Unavailable

25

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

25

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

26

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

26

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

27

WASHER, PLAIN (10MM)

94102-10000

$1.49

28

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

28

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
