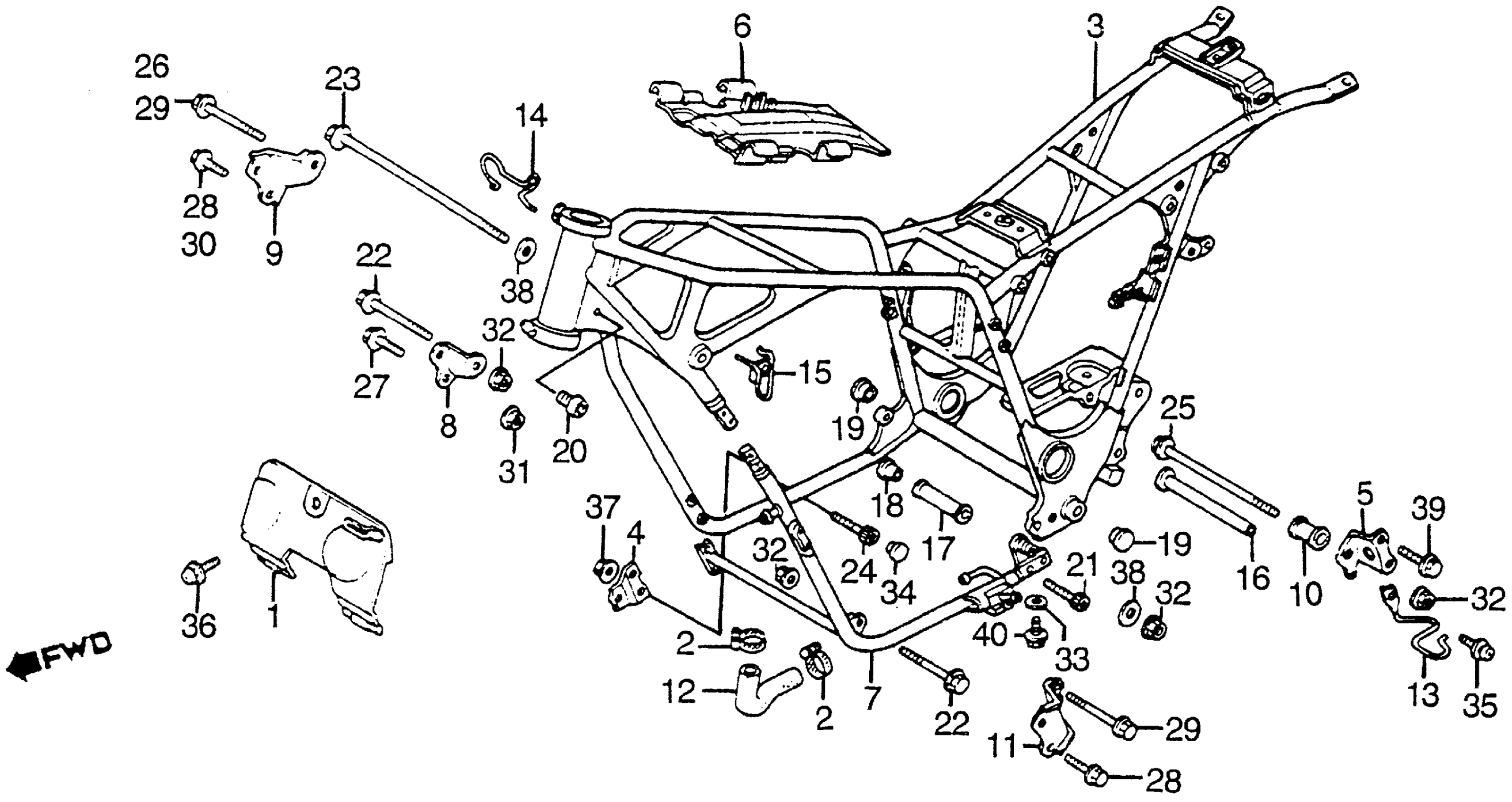

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 FRAME Diagram
#
Description
Price
1
PLATE, CARBURETOR HEAT GUARD (NOT AVAILABLE)
19125-MB3-000
Unavailable
3
FRAME *NH1* (BLACK) (NOT AVAILABLE)
50100-MB3-770ZA
Unavailable
4
STAY, L. RADIATOR (NOT AVAILABLE)
50115-MB3-000
Unavailable
6
PLATE, FUEL TANK HEAT GUARD (NOT AVAILABLE)
50189-MB3-000
Unavailable
7
SUB-FRAME (NOT AVAILABLE)
50210-MB3-770
Unavailable
8
PLATE, R. FR. ENGINE HANGER (NOT AVAILABLE)
50216-MB3-770
Unavailable
10
COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)
50226-MB2-000
Unavailable
12
HOSE, WATER (LOWER) (NOT AVAILABLE)
50242-MB0-000
Unavailable
13
CLAMP, CLUTCH HOSE (NOT AVAILABLE)
50357-MB3-770
Unavailable
14
CLAMP, FR. HARNESS (NOT AVAILABLE)
50358-MB3-000
Unavailable
15
CLAMP, WIRE (NOT AVAILABLE)
50359-MB3-000
Unavailable
16
COLLAR, ENGINE HANGER (UPPER) (NOT AVAILABLE)
50361-MB3-770
Unavailable
17
COLLAR B, ENGINE HANGER (NOT AVAILABLE)
50362-MB3-000
Unavailable
18
COLLAR C, ENGINE HANGER (NOT AVAILABLE)
50363-MB0-000
Unavailable
20
SCREW, PAN (8X8) (NOT AVAILABLE)
90010-MB4-770
Unavailable
21
BOLT, SOCKET (10X25) (NOT AVAILABLE)
90101-MB0-000
Unavailable
22
BOLT, FLANGE (10X50) (NOT AVAILABLE)
90102-MB3-000
Unavailable
23
BOLT, FLANGE (10X455) (NOT AVAILABLE)
90104-MB3-000
Unavailable
24
BOLT, SOCKET (10X35)
90107-MB0-000
Unavailable
25
BOLT, FLANGE (10X280) (NOT AVAILABLE)
90110-MB3-770
Unavailable
26
BOLT, FLANGE (10X78) (NOT AVAILABLE)
90113-MB3-770
Unavailable
29
BOLT, FLANGE (8X62) (NOT AVAILABLE)
90160-MB3-000
Unavailable
30
BOLT, FLANGE (8X65) (NOT AVAILABLE)
90161-MB3-770
Unavailable
31
NUT, FLANGE (8MM)
90208-425-870
Unavailable
