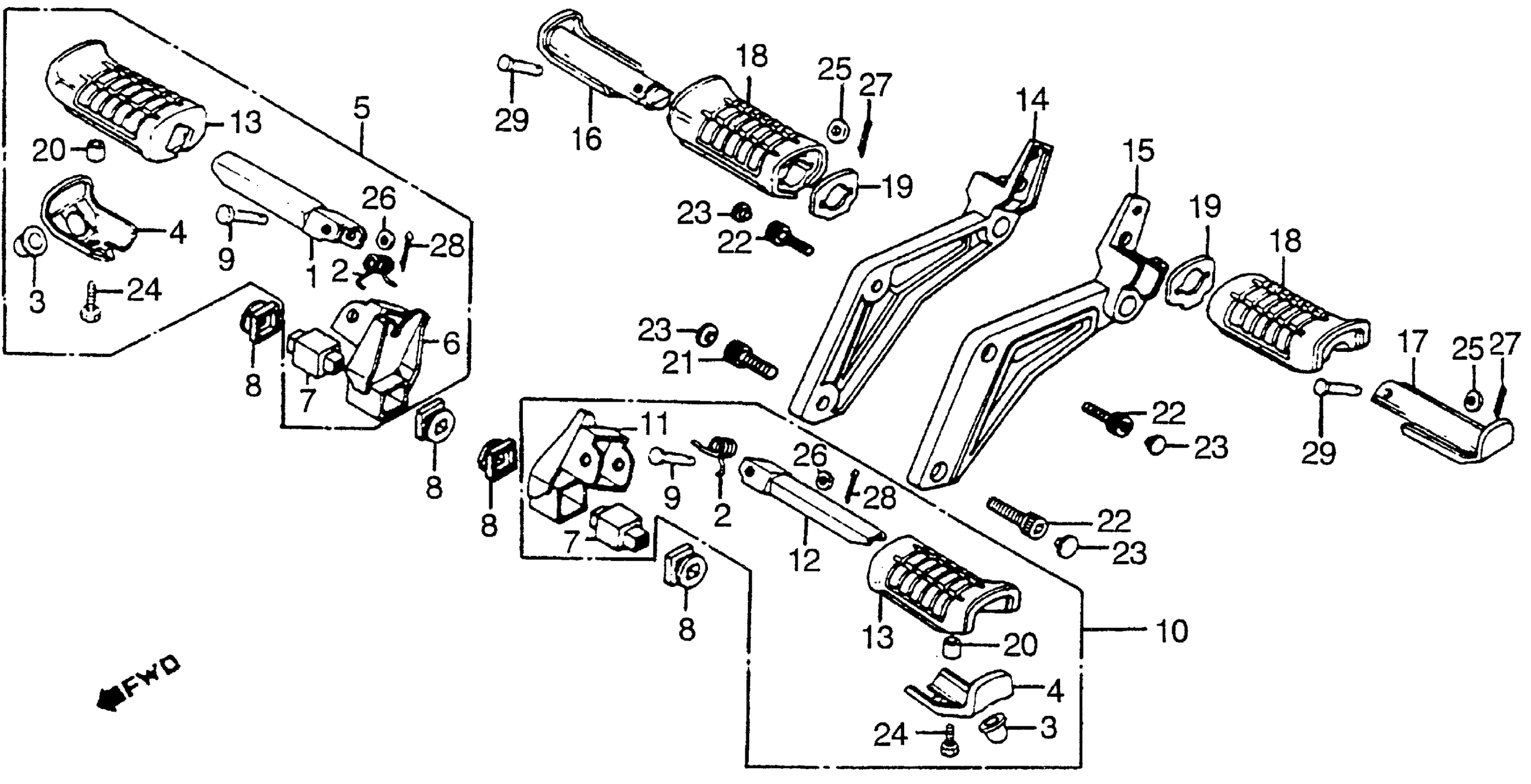

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 FOOTPEGS Diagram

#

Description
Price

1

BAR, R. FOOTPEG (NOT AVAILABLE)

50612-MB3-000

Unavailable

2

SPRING, STEP RETURN

50617-MB2-000

Unavailable

3

SLIDER, STEP (NOT AVAILABLE)

50618-MB1-000

$4.13

4

STOPPER, STEP RUBBER (NOT AVAILABLE)

50619-MB0-000

Unavailable

5

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50630-MB3-000

Unavailable

6

BRACKET, R. FOOTPEG (NOT AVAILABLE)

50631-MB3-000

Unavailable

7

RUBBER A, FOOTPEG MOUNTING (NOT AVAILABLE)

50633-MB3-000

Unavailable

8

RUBBER B, FOOTPEG MOUNTING (NOT AVAILABLE)

50634-MB3-000

Unavailable

9

PIN, FOOTPEG BAR JOINT (NOT AVAILABLE)

50639-MB3-000

Unavailable

10

FOOTPEG ASSY., L. MAIN (NOT AVAILABLE)

50640-MB3-000

Unavailable

11

BRACKET, L. FOOTPEG (NOT AVAILABLE)

50641-MB3-000

Unavailable

12

BAR, L. FOOTPEG (NOT AVAILABLE)

50642-MB3-000

Unavailable

13

RUBBER, FOOTPEG (NOT AVAILABLE)

50661-ME8-000

Unavailable

14

HOLDER, R. PILLION FOOTPEG (NOT AVAILABLE)

50680-MB3-770

Unavailable

15

HOLDER, L. PILLION FOOTPEG (NOT AVAILABLE)

50690-MB3-770

Unavailable

16

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-MB1-000

Unavailable

17

BAR, L. PILLION FOOTPEG (NOT AVAILABLE)

50712-MB1-000

Unavailable

18

RUBBER, PILLION STEP

50713-MB1-000

$15.82

19

WASHER, PILLION STEP

50714-MB1-000

Unavailable

20

COLLAR, BUZZER SETTING

61309-303-810

$5.17

21

BOLT, SOCKET (8X30) (NOT AVAILABLE)

90109-MB3-000

Unavailable

22

BOLT, SOCKET (8X18)

90156-MB3-000

Unavailable

23

CAP, SOCKET BOLT (10MM)

91456-ME1-670

$3.47

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94102-08000

$1.49

27

PIN, SPLIT (1.6X10)

94201-16100

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

PIN C, PILLION STEP

95015-83000

$2.41
