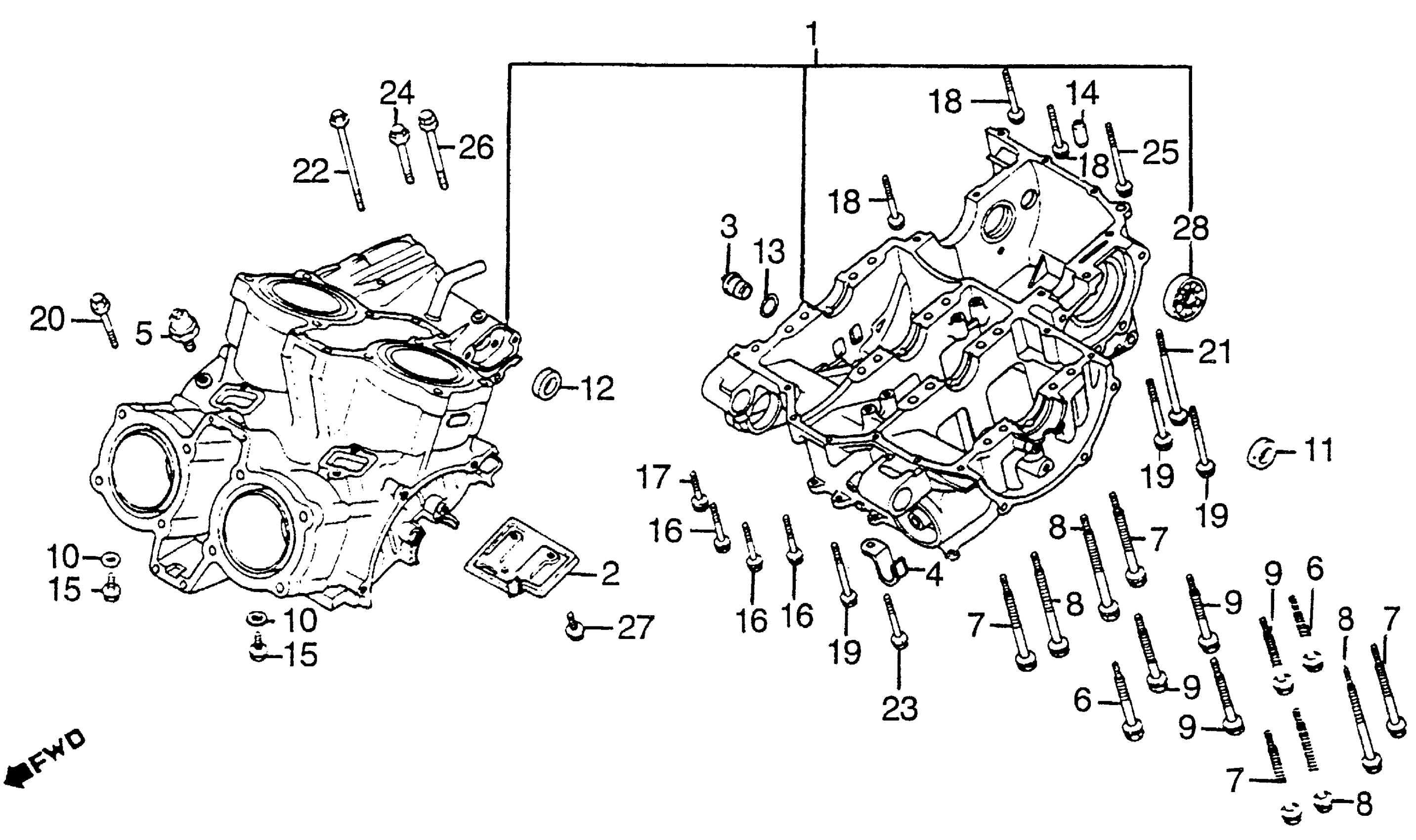

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 CYLINDER BLOCK Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-MB3-000

Unavailable

2

PLATE, OIL SEPARATE (NOT AVAILABLE)

11140-MB4-000

Unavailable

3

CAP, MAIN GALLERY (NOT AVAILABLE)

11207-MB0-000

Unavailable

4

CLIP, IGNITION WIRE

32906-061-000

$4.44

5

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$38.96

5

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.96

6

BOLT, UBS (10X80) (NOT AVAILABLE)

90014-MB4-000

Unavailable

7

BOLT, UBS (10X103) (NOT AVAILABLE)

90015-MB4-000

Unavailable

8

BOLT, UBS (10X113)

90016-MB4-000

Unavailable

9

BOLT, UBS (10X90) (NOT AVAILABLE)

90018-MB4-000

Unavailable

10

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.50

10

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.50

11

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.32

12

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.62

12

OIL SEAL (14X24X6) (ARAI) This part replaces 91210-MB0-003.

91202-444-023

$3.62

12

OIL SEAL (14X24X6) (ARAI) This part replaces 91210-MB0-013.

91202-444-023

$3.62

13

O-RING (18X2.8)

91314-MB0-003

Unavailable

14

PIN, DOWEL (10X16)

94301-10160

$2.80

15

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$2.03

15

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

16

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.88

16

BOLT, FLANGE (6X32)

95701-06032-00

$1.88

17

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.88

17

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

18

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.75

18

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

18

BOLT, FLANGE (6X45)

95701-06045-07

$2.75

19

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.75

19

BOLT, FLANGE (6X50)

95701-06050-00

$2.75

20

BOLT, FLANGE (6X50) This part replaces 95700-06050-07.

95701-06050-07

$1.28

20

BOLT, FLANGE (6X50)

95701-06050-07

$1.28

21

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.87

21

BOLT, FLANGE (6X90)

95701-06090-00

$1.87

22

BOLT, FLANGE (6X100) This part replaces 95700-06100-07.

95701-06100-07

$2.97

22

BOLT, FLANGE (6X100)

95701-06100-07

$2.97

23

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.80

23

BOLT, FLANGE (8X35)

95701-08035-00

$2.80

24

BOLT, FLANGE (8X50) This part replaces 95700-08050-07.

95701-08050-07

$1.40

24

BOLT, FLANGE (8X50)

95701-08050-07

$1.40

25

BOLT, FLANGE (8X65) This part replaces 95700-08065-00.

95701-08065-00

$1.59

25

BOLT, FLANGE (8X65)

95701-08065-00

$1.59

26

BOLT, FLANGE (8X80) This part replaces 95700-08080-07.

95701-08080-07

Unavailable

26

BOLT, FLANGE (8X80)

95701-08080-07

Unavailable

27

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.79

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

28

BEARING, RADIAL BALL (6304)

96100-63040-00

$13.22
