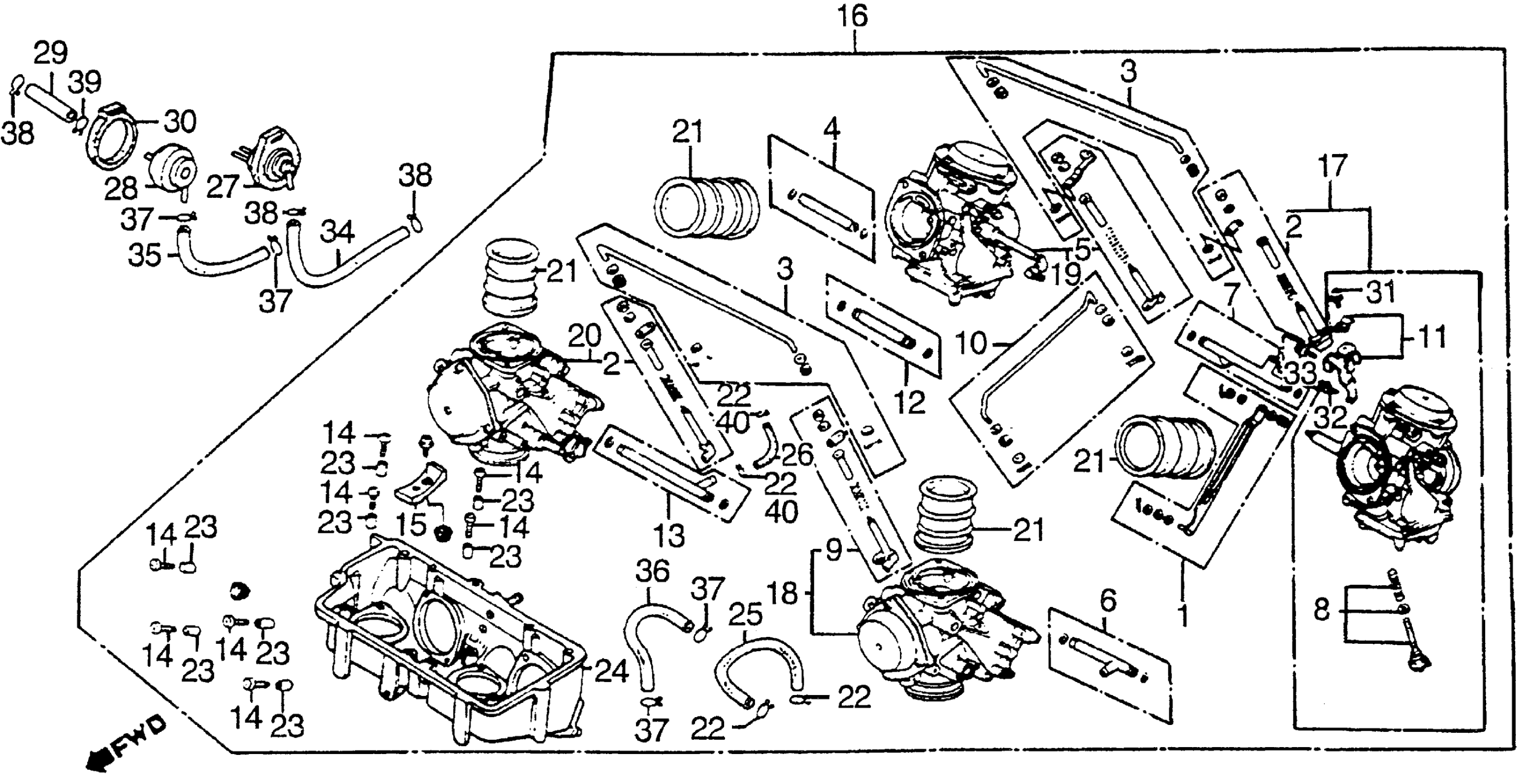

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 CARBURETOR ASSY. + CARBURETOR LINK Diagram

#

Description
Price

1

LEVER SET A, LINK (NOT AVAILABLE)

16017-MB4-671

Unavailable

2

LINK A SET, STARTER This part replaces 16018-MB0-671.

16018-MK3-771

Unavailable

2

LINK A SET, STARTER

16018-MK3-771

Unavailable

3

ROD SET A, STARTER LINK (NOT AVAILABLE)

16019-MB4-671

Unavailable

4

JOINT SET C, FUEL

16022-MB1-771

Unavailable

5

LINK B SET, STARTER (NOT AVAILABLE)

16025-MB4-671

Unavailable

6

JOINT SET A, FUEL

16026-MB0-671

$52.80

7

JOINT SET E, FUEL (NOT AVAILABLE)

16027-MB4-621

Unavailable

8

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

8

SCREW SET This part replaces 16028-MB0-671.

16028-KR3-980

$46.87

9

LINK C SET, STARTER (NOT AVAILABLE)

16031-MB0-671

Unavailable

10

ROD SET B, STARTER LINK (NOT AVAILABLE)

16032-MB4-671

Unavailable

11

PLATE SET, STAY (NOT AVAILABLE)

16035-MB4-671

Unavailable

12

JOINT SET D, FUEL

16042-MB1-771

Unavailable

13

JOINT SET B, FUEL This part replaces 16047-MB0-671.

16047-MB0-771

Unavailable

13

JOINT SET B, FUEL

16047-MB0-771

Unavailable

14

SCREW, PAN

16080-MB0-671

$2.16

15

PLATE, SETTING (NOT AVAILABLE)

16094-MB0-671

Unavailable

16

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 2106323 This part replaces 16100-MB3-671.

16100-MB3-672

Unavailable

16

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 2106324

16100-MB3-672

Unavailable

17

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use up to Engine SN VD71A B

16101-MB3-671

Unavailable

17

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use from Engine SN VD71A C

16101-MB3-673

Unavailable

18

CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use up to Engine SN VD71A B

16102-MB3-671

Unavailable

18

CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use from Engine SN VD71A C

16102-MB3-673

Unavailable

19

CARBURETOR ASSY. 3 (NOT AVAILABLE) | Use up to Engine SN VD71A B

16103-MB3-671

Unavailable

19

CARBURETOR ASSY. 3 (NOT AVAILABLE) | Use from Engine SN VD71A C

16103-MB3-673

Unavailable

20

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use up to Engine SN VD71A B

16104-MB3-671

Unavailable

20

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use from Engine SN VD71A C

16104-MB3-673

Unavailable

21

FUNNEL, AIR

16141-MB4-671

Unavailable

23

PIN, KNOCK

16178-MB0-671

$4.98

24

BASE, AIR CLEANER | Use up to Engine SN VD71A B This part replaces 16188-MB3-671.

16188-MB3-672

Unavailable

24

BASE, AIR CLEANER | Use up to Engine SN VD71A B

16188-MB3-672

Unavailable

24

BASE, AIR CLEANER | Use from Engine SN VD71A C

16188-MB3-672

Unavailable

26

TUBE, AIR VENT (NOT AVAILABLE)

16199-MB4-621

Unavailable

31

SCREW-WASHER (4X10)

93892-04010-00

$1.49

32

SCREW-WASHER (4X12)

93892-04014-00

$1.49

33

SCREW-WASHER (5X12)

93892-05012-00

$1.49

40

CLIP, TUBE (B12)

95002-02120

$2.00
