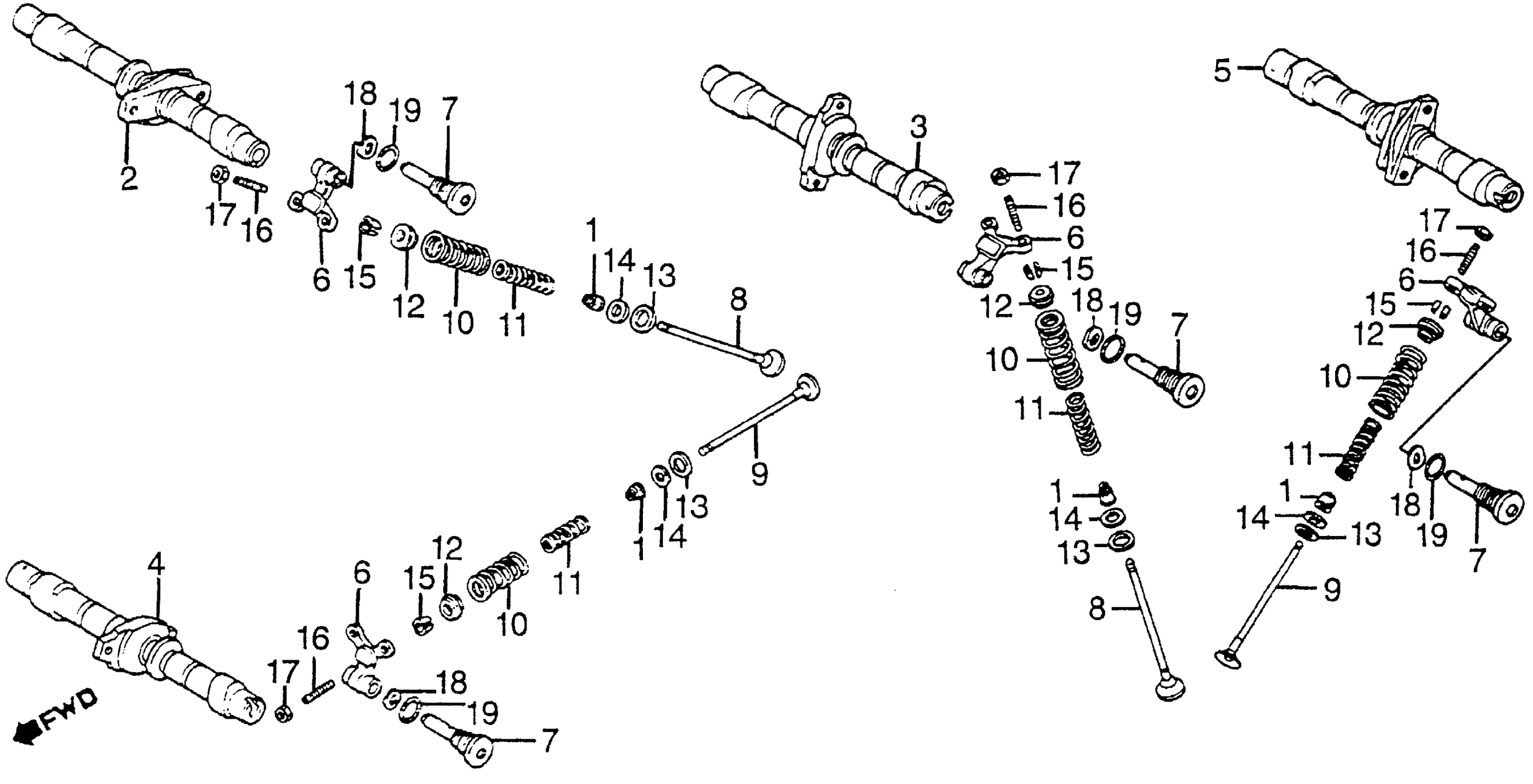

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-422-005

$14.57

2

CAMSHAFT, FR. IN. This part replaces 14111-MB3-000.

14111-MB3-010

Unavailable

2

CAMSHAFT, FR. IN. This part replaces 14111-MB3-305.

14111-MB3-010

Unavailable

3

CAMSHAFT COMP.,RR This part replaces 14121-MB3-000.

14121-MB3-010

Unavailable

3

CAMSHAFT COMP.,RR This part replaces 14121-MB3-305.

14121-MB3-010

Unavailable

4

CAMSHAFT COMP.,FR This part replaces 14131-MB3-000.

14131-MB3-010

Unavailable

4

CAMSHAFT COMP.,FR This part replaces 14131-MB3-305.

14131-MB3-010

Unavailable

5

CAMSHAFT COMP.,RR This part replaces 14141-MB3-000.

14141-MB3-010

Unavailable

5

CAMSHAFT COMP.,RR This part replaces 14141-MB3-305.

14141-MB3-010

Unavailable

6

ARM, VALVE ROCKER (NOT AVAILABLE)

14611-MB6-010

Unavailable

7

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14631-KE8-000

Unavailable

8

VALVE, IN. (NOT AVAILABLE) This part replaces 14711-MB6-000.

14711-MB4-000

Unavailable

9

VALVE, EX. (NOT AVAILABLE)

14721-MB4-000

Unavailable

10

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-MB1-871

Unavailable

11

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-MB1-871

Unavailable

12

RETAINER, SPRING

14771-MB6-000

Unavailable

13

SEAT, VALVE SPRING (OUTER)

14775-422-000

Unavailable

14

SEAT, VALVE SPRING (INNER) (NOT AVAILABLE)

14776-MB0-770

Unavailable

15

COTTER, VALVE

14781-MB4-000

$3.19

16

SCREW, TAPPET ADJUSTING (NOT AVAILABLE)

90002-MB1-870

Unavailable

17

NUT, TAPPET ADJUSTING

90206-590-000

$4.83

18

WASHER, WAVE (12MM)

90402-428-000

$2.20

19

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44
