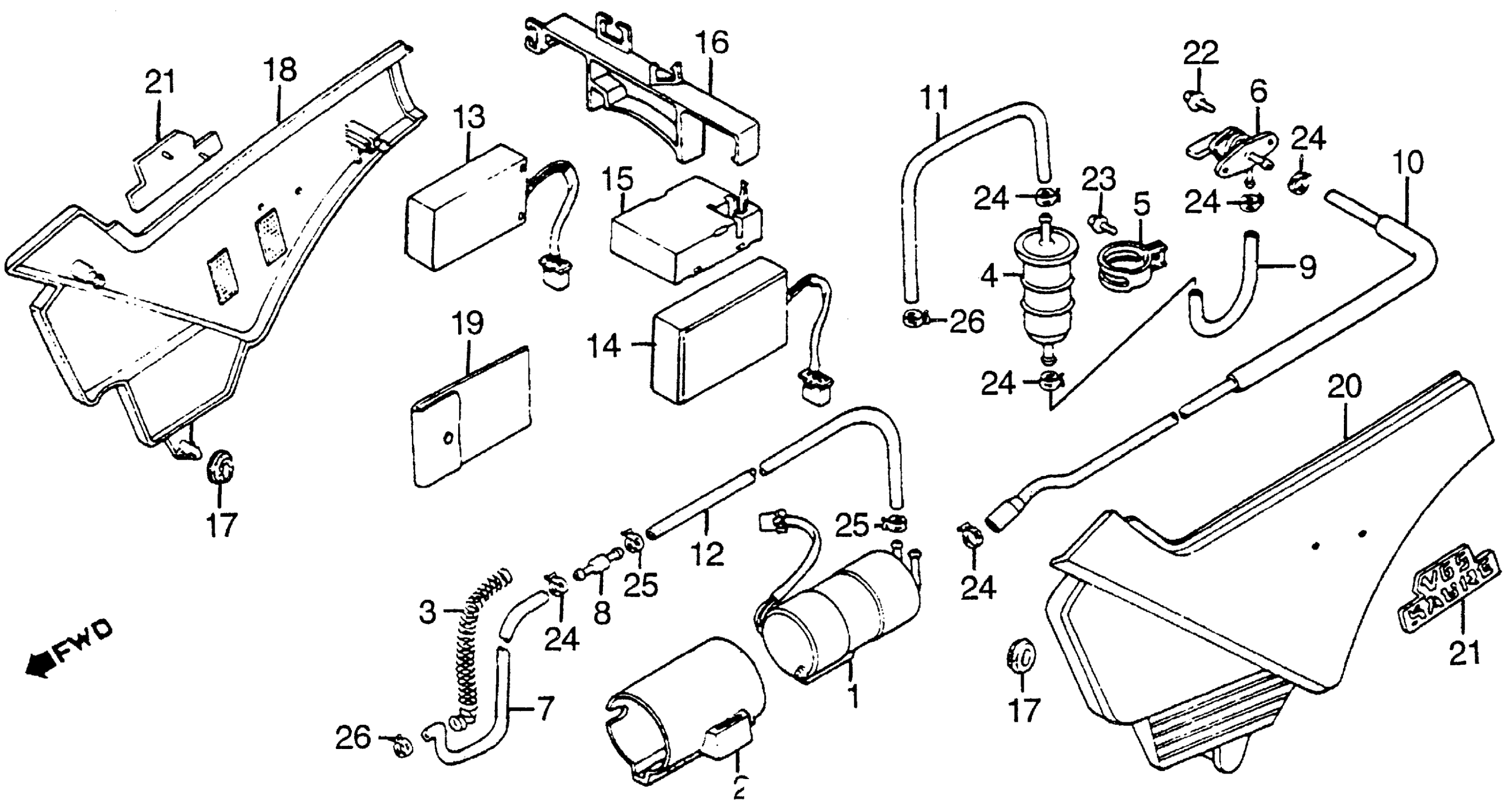

Honda VF1100SA (84) V65 SABRE, USA, VIN# 1HFSC170-EM000001 TO 1HFSC170-EM010029 SIDE COVER + FUEL PUMP Diagram

#

Description
Price

1

PUMP, FUEL (NOT AVAILABLE)

16710-MB3-671

Unavailable

2

RUBBER, FUEL PUMP (NOT AVAILABLE)

16711-MB3-000

Unavailable

3

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

16715-MB3-000

Unavailable

4

FILTER, FUEL

16900-371-004

$30.23

5

HOLDER, FUEL STRAINER (NOT AVAILABLE)

16901-MB4-000

Unavailable

6

PETCOCK ASSY. (NOT AVAILABLE)

16950-MB1-005

Unavailable

7

TUBE D, FUEL (NOT AVAILABLE)

16955-MB3-000

Unavailable

8

JOINT, FUEL TUBE (NOT AVAILABLE)

16959-MB1-000

Unavailable

9

TUBE A, FUEL (NOT AVAILABLE)

17512-MB3-000

Unavailable

10

TUBE B, FUEL (NOT AVAILABLE)

17515-MB3-000

Unavailable

11

TUBE C, FUEL (NOT AVAILABLE)

17516-MB3-000

Unavailable

12

TUBE E, FUEL (NOT AVAILABLE)

17518-MB3-000

Unavailable

13

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE) This part replaces 30400-MB4-004.

30400-MB4-005

Unavailable

13

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-MB4-005

Unavailable

14

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE) This part replaces 30410-MB4-004.

30410-MB4-005

Unavailable

14

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE)

30410-MB4-005

Unavailable

15

SENSOR, STOP & TAILLIGHT (NOT AVAILABLE)

35550-MB2-771

Unavailable

16

HOLDER, SPARK UNIT (NOT AVAILABLE)

50331-MB3-000

Unavailable

17

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

18

COVER, R. SIDE *NH1* (TYPE1) (BLACK) (NOT AVAILABLE)

83610-MB3-000ZA

Unavailable

18

COVER, R. SIDE *NH1* (TYPE2) (BLACK) (NOT AVAILABLE)

83610-MB3-000ZB

Unavailable

19

BAG, OWNER'S MANUAL

83642-355-000

$26.87

20

COVER, L. SIDE *NH1* (TYPE1) (BLACK) (NOT AVAILABLE)

83710-MB3-000ZA

Unavailable

20

COVER, L. SIDE *NH1* (TYPE2) (BLACK) (NOT AVAILABLE)

83710-MB3-000ZB

Unavailable

21

EMBLEM, SIDE COVER (TYPE1) (NOT AVAILABLE) This part replaces 87127-MB3-000.

87127-MB3-770ZA

Unavailable

22

SCREW-WASHER (6X12) (NOT AVAILABLE)

93892-06012-00

Unavailable

23

SCREW-WASHER (5X12)

93893-05012-07

$1.49

24

CLAMP, TUBE (D10)

95002-41000-08

$2.41

25

CLAMP, TUBE (D10.5)

95002-41050-00

$1.85

26

CLAMP, TUBE (D12)

95002-41200-08

$2.34
