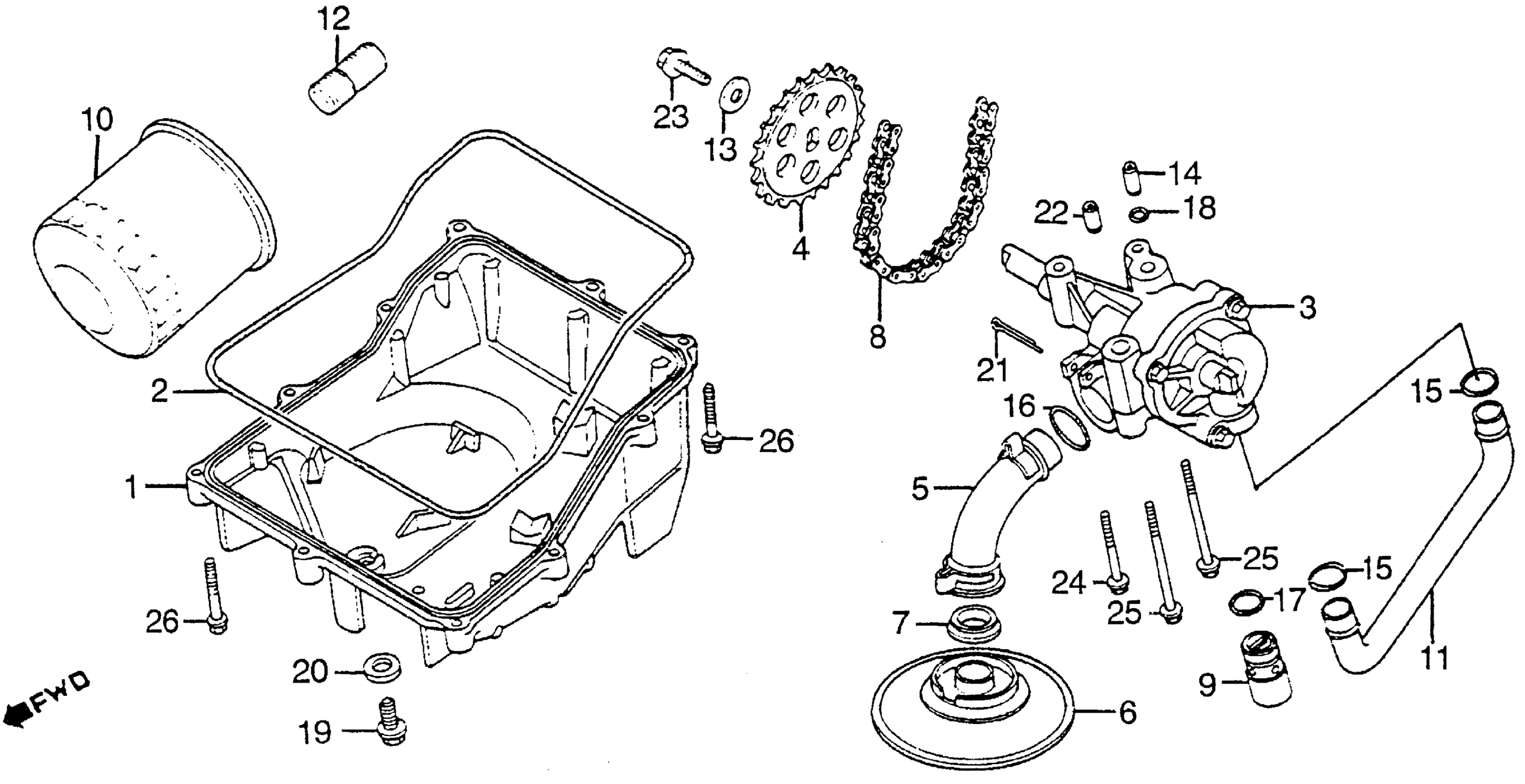

Honda VF1100SA (84) V65 SABRE, USA, VIN# 1HFSC170-EM000001 TO 1HFSC170-EM010029 OIL FILTER + OIL PAN + OIL PUMP Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-MB4-000

Unavailable

2

GASKET, OIL PAN (NOT AVAILABLE)

11315-MB4-000

Unavailable

3

PUMP ASSY., OIL (NOT AVAILABLE) This part replaces 15100-MB4-000.

15100-MB4-010

Unavailable

3

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MB4-010

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (NOT AVAILABLE) | Use up to Engine SN 2101996 This part replaces 15134-MB4-010.

15134-MB6-000

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (NOT AVAILABLE)

15134-MB6-000

Unavailable

5

PIPE, OIL STRAINER (NOT AVAILABLE)

15151-MB4-000

Unavailable

6

STRAINER, OIL (NOT AVAILABLE)

15153-MB3-000

Unavailable

7

GASKET, OIL STRAINER

15154-425-000

$7.99

8

CHAIN, STARTING (56L) This part replaces 15161-ME5-003.

28101-KB4-671

$38.46

8

CHAIN, STARTING (56L)

28101-KB4-671

$38.46

9

VALVE ASSY., RELIEF

15220-MB0-010

$44.08

10

FILTER, OIL | Use up to Engine SN 2103605 This part replaces 15410-MB0-003.

15410-MJ0-405

$13.44

10

FILTER, OIL | Use up to Engine SN 2103605 This part replaces 15410-MB3-003.

15410-MJ0-405

$13.44

10

FILTER, OIL This part replaces 15410-MB3-003.

15410-MJ0-405

$13.44

10

FILTER, OIL | Use up to Engine SN 2103605 This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

10

FILTER, OIL This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

10

FILTER, OIL | Use up to Engine SN 2103605 This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

10

FILTER, OIL This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

10

FILTER, OIL | Use up to Engine SN 2103605

15410-MJ0-405

$13.44

10

FILTER, OIL

15410-MJ0-405

$13.44

11

PIPE, OIL (NOT AVAILABLE)

15511-MB0-000

Unavailable

12

BOSS, OIL FILTER

90019-MB0-000

$8.61

13

WASHER, SHIFT DRUM STOPPER | Use up to Engine SN 2100268

90487-MB0-000

$3.41

13

WASHER (6X2.3) | Use from Engine SN 2100269

90488-MB0-000

$4.37

14

PIN, KNOCK (8X14) (NOT AVAILABLE)

90701-MB4-000

Unavailable

15

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

15

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

16

O-RING (18.5X2.4) (ARAI)

91311-MB0-003

$2.03

17

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

17

O-RING (14.8X2.2)

91313-MG7-004

$3.67

18

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

18

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

18

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

19

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

21

PIN, SPLIT (2.0X35)

94201-20350

$1.49

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

BOLT, HEX. (6X16) | Use from Engine SN 2100269 This part replaces 90021-KE8-000.

90021-KE8-010

$2.28

23

BOLT, HEX. (6X16) | Use from Engine SN 2100269

90021-KE8-010

$2.28

23

BOLT, FLANGE (6X14) | Use up to Engine SN 2100268 This part replaces 95700-06014-08.

95701-06014-08

$1.55

23

BOLT, FLANGE (6X14) | Use up to Engine SN 2100268

95701-06014-08

$1.55

24

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

24

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

24

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

25

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.19

25

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

26

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

26

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
