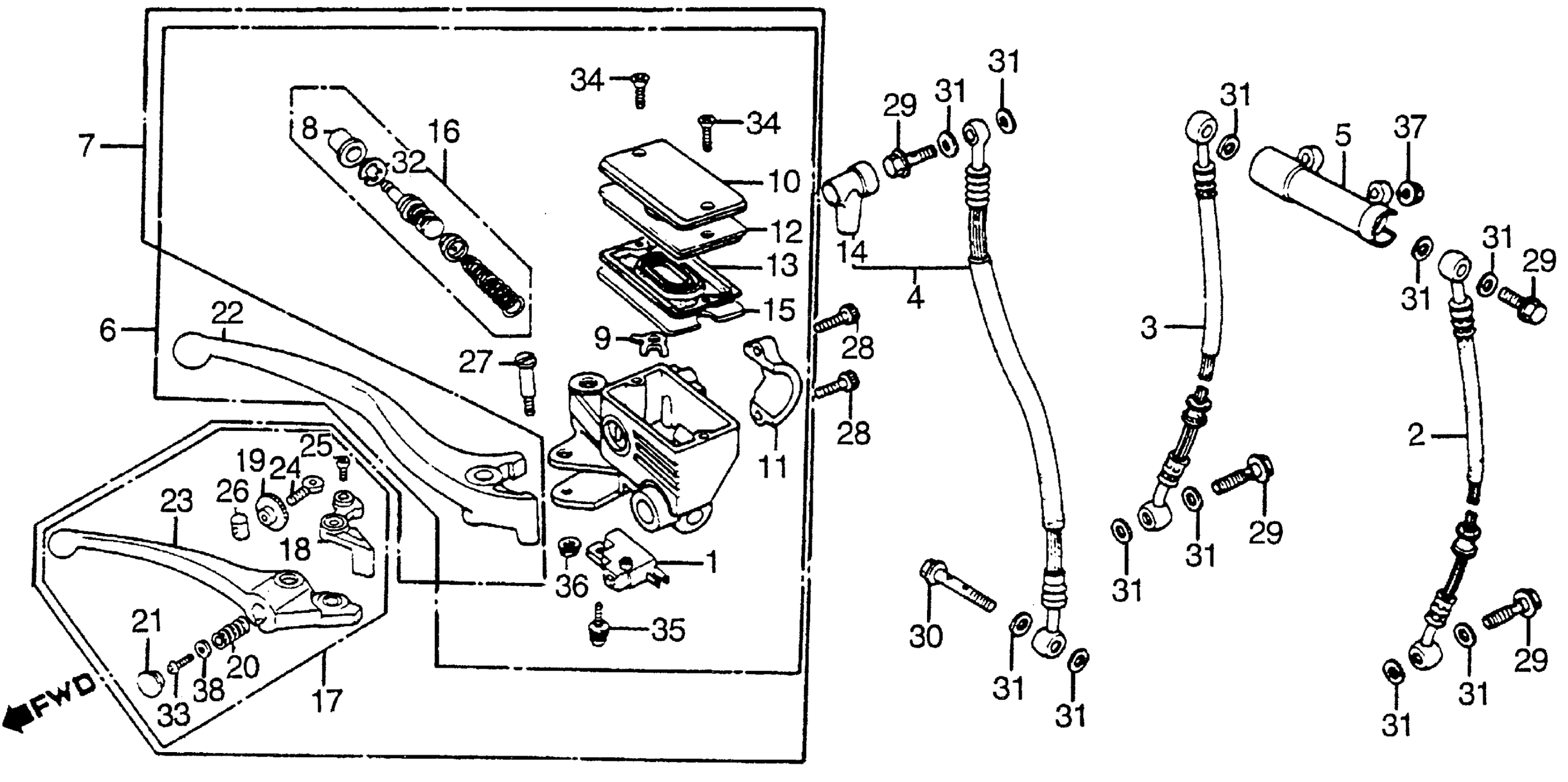

Honda VF1100SA (84) V65 SABRE, USA, VIN# 1HFSC170-EM000001 TO 1HFSC170-EM010029 FRONT BRAKE MASTER CYLINDER + BRAKE CONTROL LEVER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-MB3-003

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45125-MB3-003

Unavailable

4

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-MB3-003

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MB4-405)

45500-MB3-671

Unavailable

8

BOOT

45504-410-003

$12.16

9

PROTECTOR

45512-MA6-006

$4.28

10

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

11

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

12

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

13

DIAPHRAGM

45520-MA5-672

$18.13

14

BOOT, MASTER CYLINDER

45522-422-000

$8.68

15

FLOAT, MASTER CYLINDER (NOT AVAILABLE)

45523-MB4-771

Unavailable

16

MASTER CYLINDER SET

45530-MA5-671

$71.69

22

LEVER, R. HANDLE This part replaces 53175-KE8-006.

53175-MK7-671

$17.88

22

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

22

LEVER, R. HANDLE

53175-MK7-671

$17.88

27

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

28

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

29

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

29

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

29

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

29

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

29

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

30

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

30

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

30

BOLT, OIL (10X34)

90145-MR8-014

$7.28

31

WASHER, OIL BOLT

90545-300-000

$3.99

32

CIRCLIP

90651-MA5-671

$2.66

34

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

34

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

35

SCREW-WASHER (4X12)

93893-04012-08

$1.49

35

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

36

NUT, FLANGE (6MM)

94050-06000

$1.49

37

NUT, FLANGE (6MM)

94050-06080

$1.49
