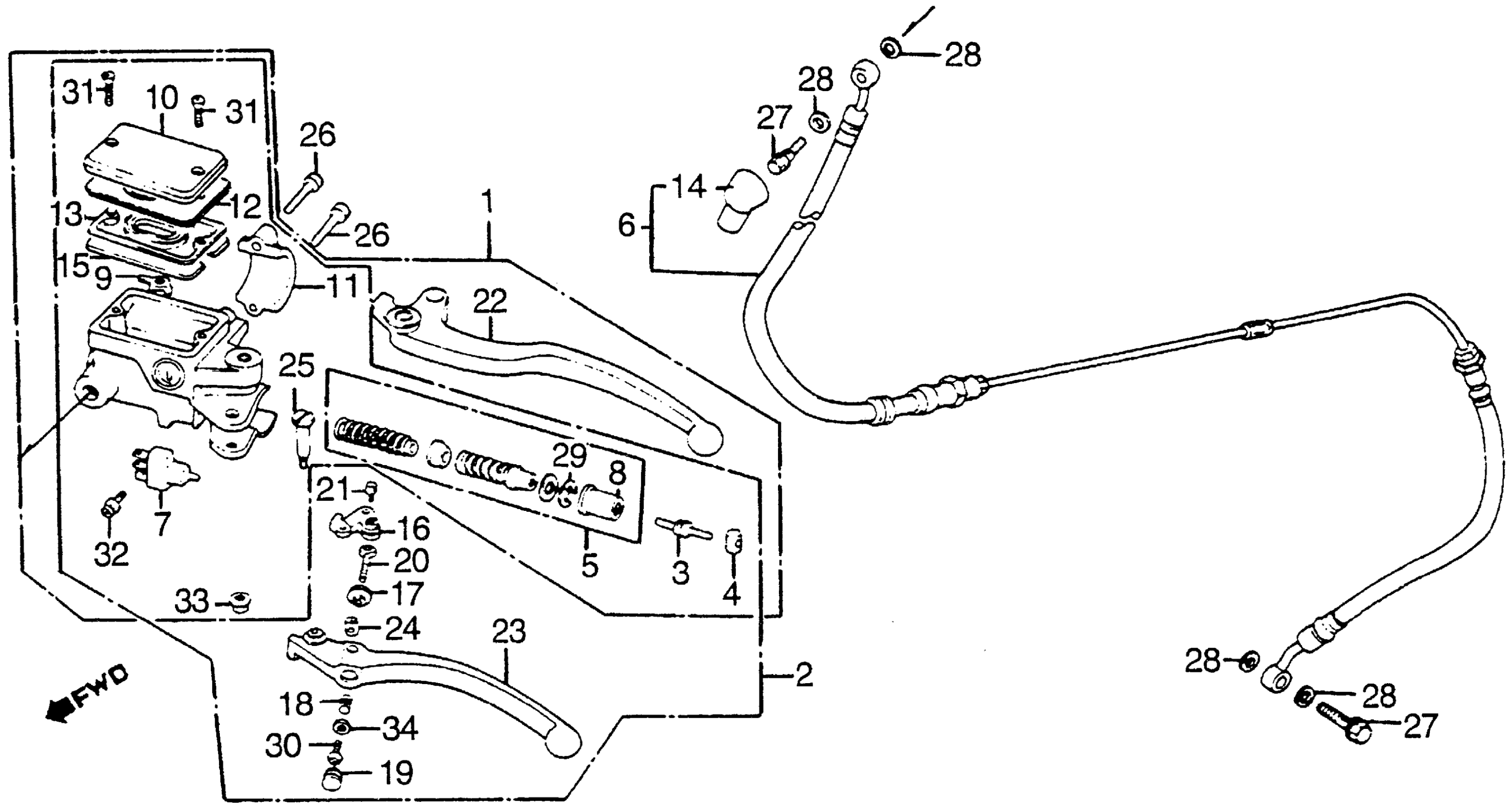

Honda VF1100SA (84) V65 SABRE, USA, VIN# 1HFSC170-EM000001 TO 1HFSC170-EM010029 CLUTCH MASTER CYLINDER + CLUTCH CONTROL LEVER Diagram

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MB3-671

Unavailable

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB4-305

$74.32

PIPE ASSY., CLUTCH (NOT AVAILABLE) | Use up to Frame SN EM006517 This part replaces 22900-MB3-000.

22900-MB3-010

Unavailable

PIPE ASSY., CLUTCH (NOT AVAILABLE) | Use from Frame SN EM006518

22900-MB3-010

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

FLOAT, MASTER CYLINDER (NOT AVAILABLE)

45523-MB4-771

Unavailable

LEVER, L. HANDLE

53178-KE8-006

$24.77

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
