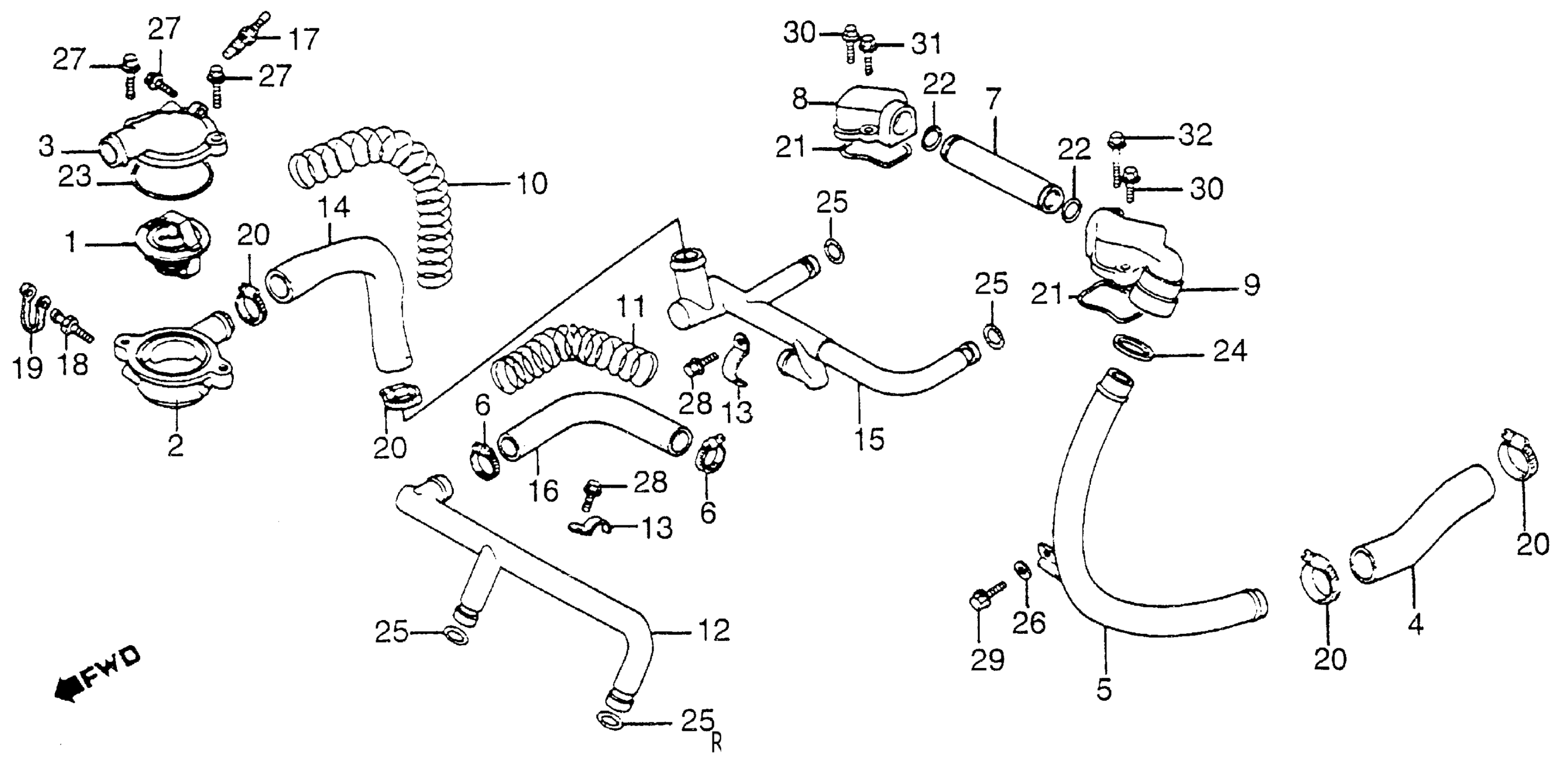

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 WATER PIPE + THERMOSTAT Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$52.78

2

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MB1-000

Unavailable

3

COVER, THERMOSTAT (NOT AVAILABLE)

19315-MB4-000

Unavailable

4

HOSE, CONNECTING (NOT AVAILABLE)

19502-MB4-000

Unavailable

5

PIPE, OUTLET CONNECTING (NOT AVAILABLE)

19504-MB4-000

Unavailable

6

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

7

PIPE, CONNECTING (NOT AVAILABLE)

19507-MB4-000

Unavailable

8

CAP A, CONNECTING

19508-MB0-000

Unavailable

9

CAP B, CONNECTING PIPE

19509-MB0-000

Unavailable

10

CABLE A, GUARD (NOT AVAILABLE)

19511-MB4-680

Unavailable

11

WIRE B, GUARD (NOT AVAILABLE)

19512-MB3-003

Unavailable

12

PIPE A, WATER (NOT AVAILABLE)

19520-MB0-000

Unavailable

13

CLAMP A, WATER PIPE (NOT AVAILABLE)

19524-MB0-000

Unavailable

14

HOSE, WATER (NOT AVAILABLE)

19526-MB4-830

Unavailable

15

PIPE B, WATER (NOT AVAILABLE)

19530-MB0-000

Unavailable

16

HOSE B, WATER (NOT AVAILABLE)

19536-MB0-000

Unavailable

17

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

18

SCREW, BLEEDER (NISSIN) | Use up to Engine SN 2302902

43352-568-003

$7.95

18

SCREW, BLEEDER | Use from Engine SN 2302903

22866-MF2-711

$5.12

19

CAP, BLEEDER

43353-461-771

$5.05

20

CLAMP, WATER HOSE

19503-MB1-870

$12.56

20

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$12.56

21

GASKET, CONNECTING CAP

91301-MB0-000

$4.10

22

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

23

O-RING (54X2) (ARAI)

91307-MB0-003

$3.23

24

SEAL, WATER PIPE

91315-MB0-013

$2.70

25

O-RING (13X2.5)

91335-567-000

$4.01

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

27

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

28

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.49

28

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

29

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

29

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

30

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.85

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

31

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

31

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

32

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

32

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
