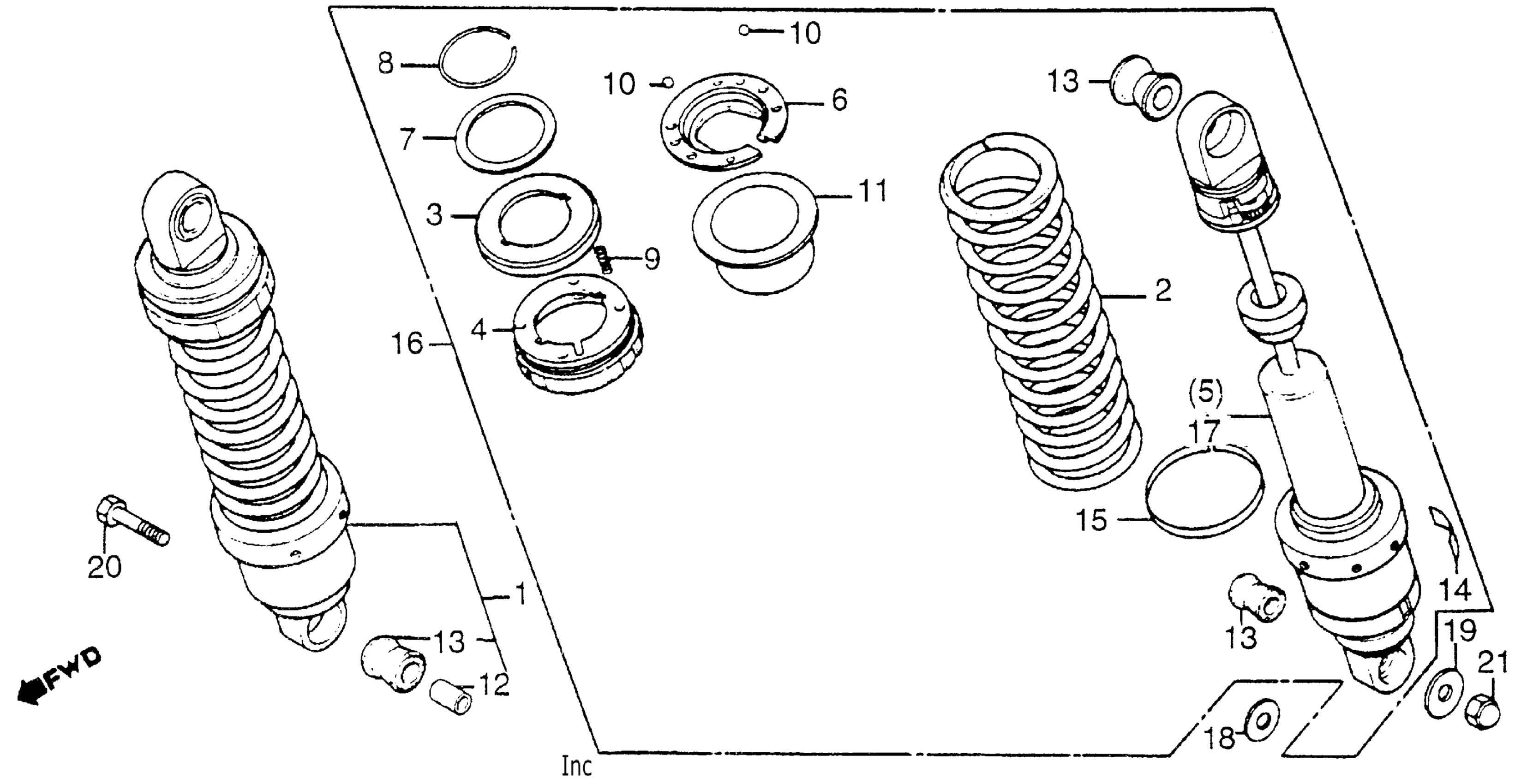

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., R. RR. (NOT AVAILABLE)

52400-MB4-671

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MB4-003

Unavailable

CASE A, ADJUSTER (NOT AVAILABLE)

52402-ME5-003

Unavailable

CASE B, ADJUSTER (NOT AVAILABLE)

52403-ME5-003

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-MB4-003

Unavailable

SEAT, LOCK (NOT AVAILABLE)

52451-ME5-003

Unavailable

STOPPER, SPRING SEAT (NOT AVAILABLE)

52452-ME5-003

Unavailable

RING, STOPPER (NOT AVAILABLE)

52453-ME5-003

Unavailable

SPRING, COIL (NOT AVAILABLE)

52454-ME5-003

Unavailable

BALL (NOT AVAILABLE)

52456-ME5-003

Unavailable

GUIDE, SPRING (NOT AVAILABLE)

52462-ME5-003

Unavailable

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

EMBLEM, RR. SHOCK (NOT AVAILABLE)

52495-MB1-670

Unavailable

LABEL A

52496-MB4-003

$7.56

SHOCK ABSORBER ASSY., L. RR. (NOT AVAILABLE)

52500-MB4-671

Unavailable

DAMPER, L. RR. (NOT AVAILABLE)

52510-MB4-003

Unavailable

WASHER, PLAIN (16MM)

90439-463-000

$1.50

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, HEX. (10X35) This part replaces 93200-10035-0B.

93201-10035-0B

Unavailable

NUT, CAP (10MM)

94021-10020-0S

$2.08
