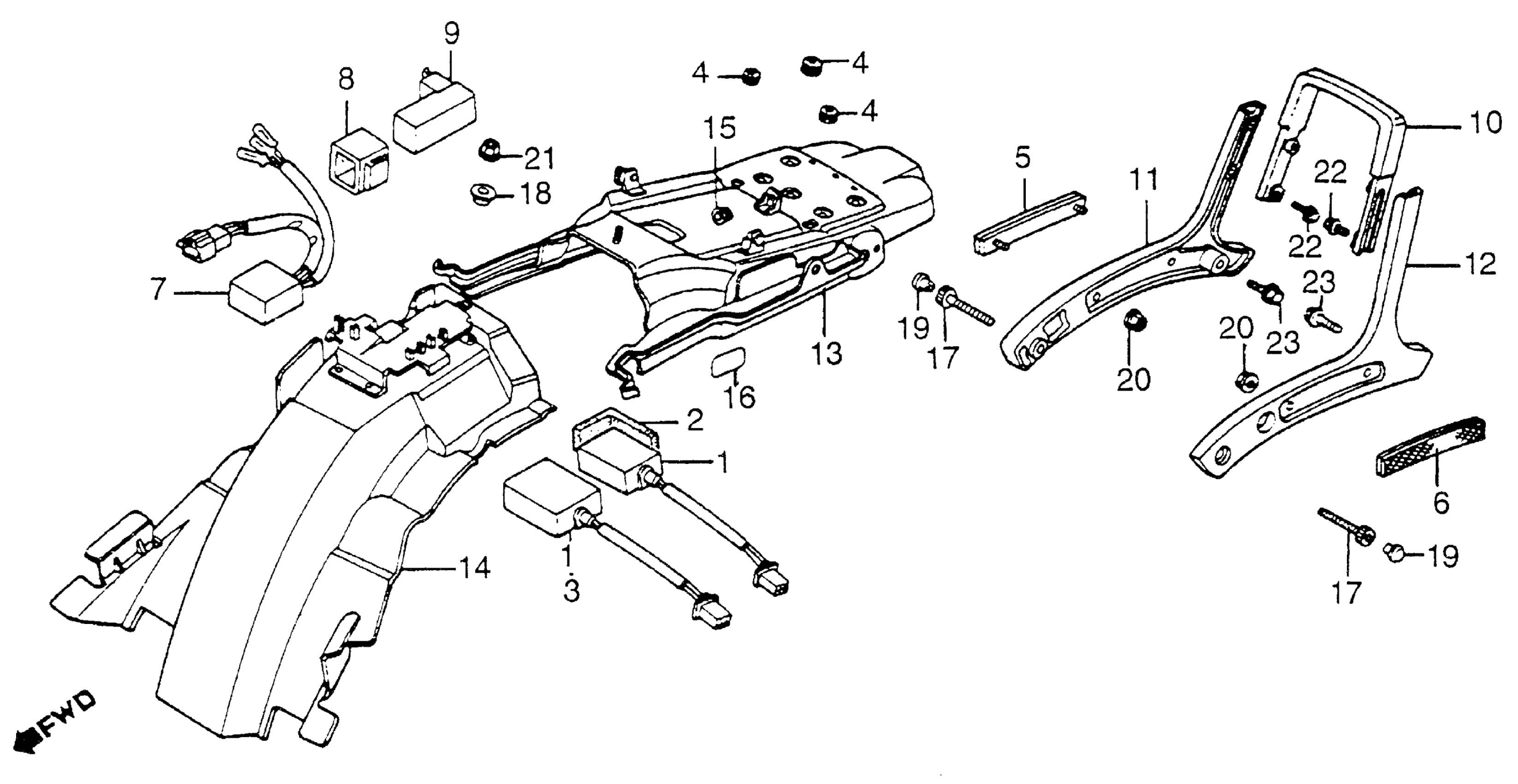

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 REAR FENDER + SPARK UNIT Diagram

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE) This part replaces 30400-MB4-004.

30400-MB4-005

Unavailable

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-MB4-005

Unavailable

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE) This part replaces 30410-MB4-004.

30410-MB4-005

Unavailable

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE)

30410-MB4-005

Unavailable

GROMMET, WIRE HARNESS

32983-011-000

$3.31

REFLECTOR, R. RR. REFLEX (NOT AVAILABLE)

33742-ME4-671

Unavailable

REFLECTOR, L. RR. REFLEX (NOT AVAILABLE)

33743-ME4-671

Unavailable

SENSOR, STOP & TAILLIGHT (NOT AVAILABLE)

35550-MB1-771

Unavailable

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

CHECK UNIT, PILOT LAMP

37640-MB1-701

Unavailable

GRAB RAIL, RR. (NOT AVAILABLE)

77320-MB4-000

Unavailable

BRACKET, R. GRAB RAIL (NOT AVAILABLE)

77330-MB4-000

Unavailable

BRACKET, L. GRAB RAIL (NOT AVAILABLE)

77340-MB4-000

Unavailable

FENDER A, RR. (NOT AVAILABLE)

80100-MB4-000

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80105-MB4-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, SOCKET (8X22)

90119-KV0-000

Unavailable

BOLT, SOCKET (8X22) This part replaces 90119-MB4-000.

90119-KV0-000

Unavailable

WASHER (6X20)

90512-300-000

$3.08

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

NUT, FLANGE (5MM)

94050-05080

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

BOLT, FLANGE (8X25)

95701-08025-08

$1.49
