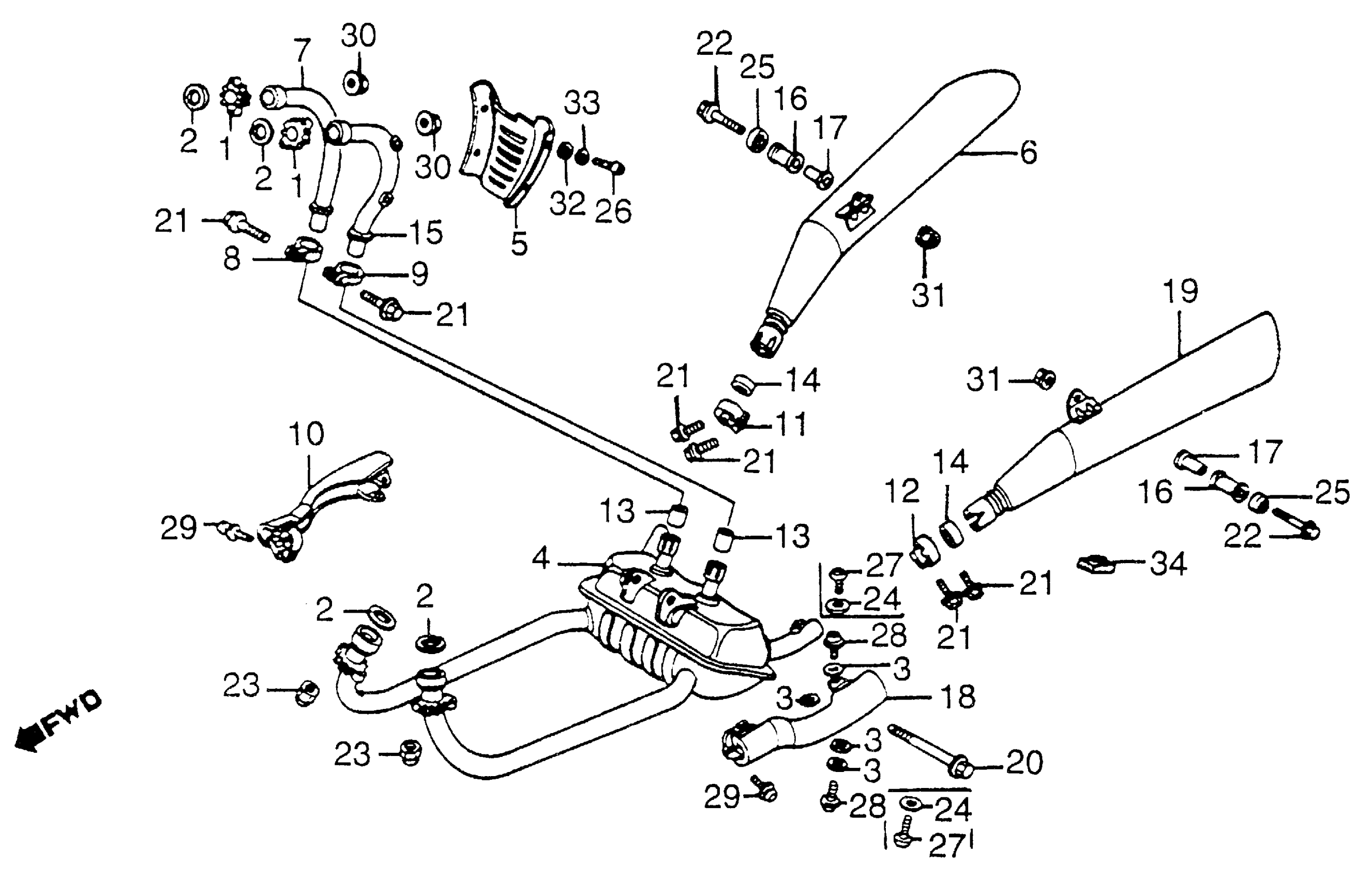

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-MB4-000

$48.93

2

GASKET, EX. PIPE

18291-MN4-920

$5.31

2

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

3

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

3

GASKET, PROTECTOR

18292-MM9-740

$3.03

3

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

4

MUFFLER, EX. This part replaces 18300-MB4-830.

18300-MB4-405

Unavailable

5

PROTECTOR, RR. EX. PIPE (NOT AVAILABLE)

18316-MB4-003

Unavailable

6

MUFFLER, R. (NOT AVAILABLE)

18330-MB4-003

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-MB4-771.

18330-MB4-003

Unavailable

7

PIPE, R. RR. EX.

18370-MB4-003

Unavailable

8

BAND, R. EX. PIPE (NOT AVAILABLE) This part replaces 18373-MB4-003.

18373-ML8-003

Unavailable

8

BAND, R. EX. PIPE (NOT AVAILABLE)

18373-ML8-003

Unavailable

9

BAND, L. EX. PIPE (NOT AVAILABLE) This part replaces 18374-MB4-003.

18374-ML8-003

Unavailable

9

BAND, L. EX. PIPE (NOT AVAILABLE)

18374-ML8-003

Unavailable

10

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18375-MB4-003

Unavailable

11

BAND, R. MUFFLER

18376-MB4-003

$41.21

12

BAND, L. MUFFLER

18377-MB4-003

$41.16

13

GASKET, MUFFLER

18391-ML8-000

$9.49

14

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

15

PIPE, L. RR. EX. (NOT AVAILABLE)

18420-MB4-003

Unavailable

16

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.34

17

COLLAR, MUFFLER SETTING

18422-MB0-000

$6.61

18

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18425-MB4-003

Unavailable

19

MUFFLER, L. (NOT AVAILABLE)

18430-MB4-003

Unavailable

19

MUFFLER, L. (NOT AVAILABLE) This part replaces 18430-MB4-771.

18430-MB4-003

Unavailable

20

BOLT, FLANGE (8X70) (NOT AVAILABLE)

90112-MB4-000

Unavailable

21

BOLT, FLANGE (8X37) This part replaces 90118-MB4-000.

90118-471-000

$3.19

21

BOLT, FLANGE (8X37)

90118-471-000

$3.19

22

BOLT, SPECIAL FLANGE (8X45)

90158-MB1-000

$5.13

23

NUT, CAP (6MM)

90304-438-000

$7.14

25

WASHER, SPECIAL (8MM)

90557-MB0-000

Unavailable

26

SCREW, PAN (6X8)

93500-06008-4J

$2.30

28

SCREW-WASHER (6X12)

93891-06012-00

$1.49

29

SCREW-WASHER (6X16)

93891-06016-00

Unavailable

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

NUT, FLANGE (8MM)

94050-08000

$1.49

32

WASHER, PLAIN (6MM)

94101-06200

$1.49

33

WASHER, SPRING (6MM)

90401-MB2-000

Unavailable

34

RUBBER A, STAND STOPPER

95011-61000

$1.49
