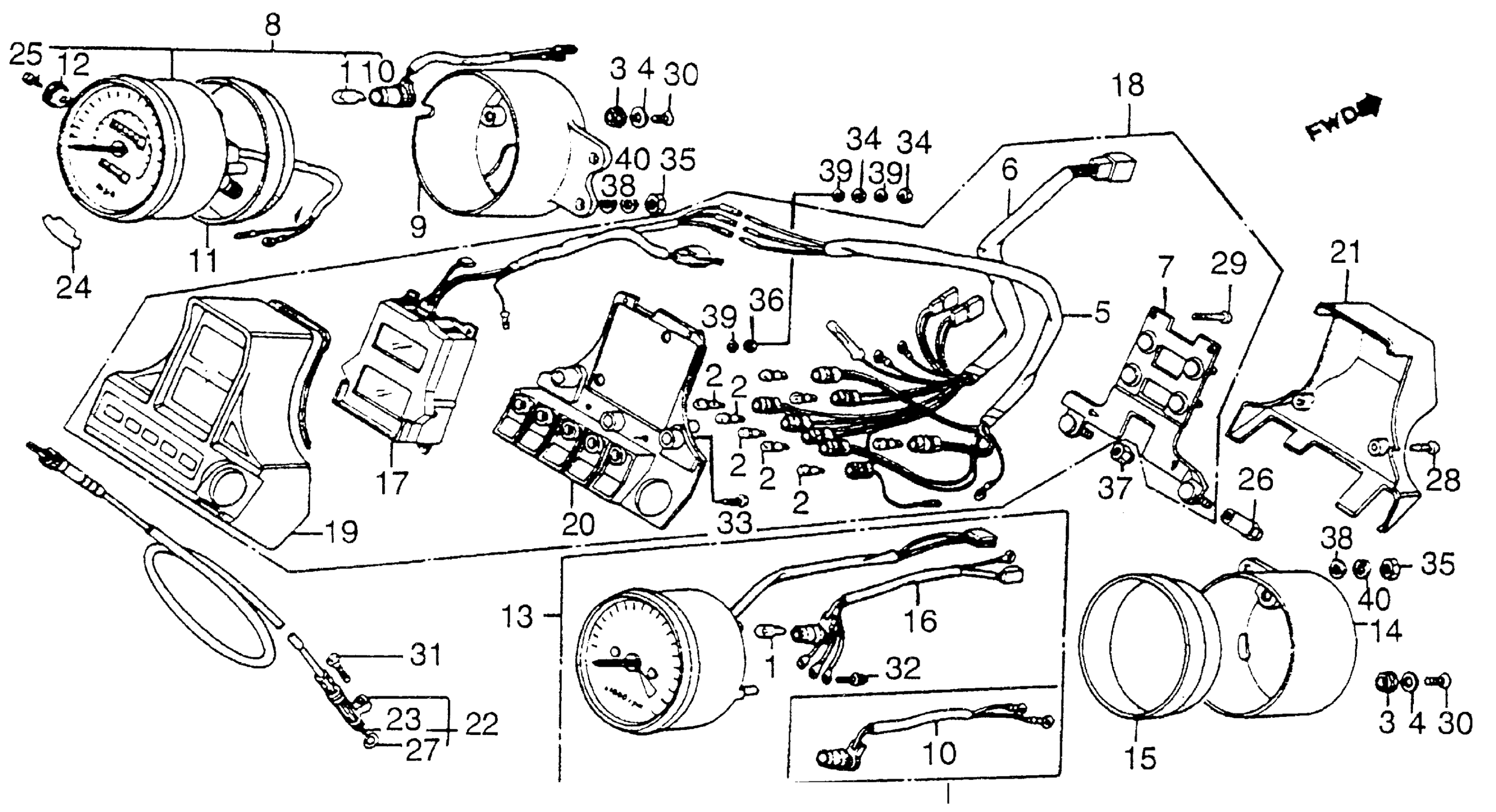

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 INSTRUMENTS Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

RUBBER, METER SETTING

37101-MB1-008

$2.92

4

WASHER

37102-MB1-008

$2.92

5

SOCKET A (NOT AVAILABLE)

37105-MB4-771

Unavailable

6

SOCKET B (NOT AVAILABLE)

37106-MB4-771

Unavailable

7

STAY ASSY., INSTRUMENT (NOT AVAILABLE)

37120-MB4-671

Unavailable

8

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-MB4-831

Unavailable

9

COVER, SPEEDOMETER (NOT AVAILABLE)

37202-MB4-671

Unavailable

10

SOCKET, ILLUMINATION (NOT AVAILABLE)

37203-MB4-671

Unavailable

11

RUBBER, SPEEDOMETER

37204-MB1-008

Unavailable

12

KNOB (NOT AVAILABLE)

37220-MK3-671

Unavailable

13

TACHOMETER ASSY. (NOT AVAILABLE)

37250-MB4-831

Unavailable

14

COVER, TACHOMETER (NOT AVAILABLE)

37252-MB4-671

Unavailable

15

RUBBER, TACHOMETER (NOT AVAILABLE)

37254-MB1-008

Unavailable

16

SOCKET, ILLUMINATION (NOT AVAILABLE)

37255-MB4-830

Unavailable

17

INSTRUMENT, TEMPERATURE & GEAR POSITION (NOT AVAILABLE)

37450-MB4-773

Unavailable

18

BOX ASSY., PILOT (NOT AVAILABLE)

37600-MB4-683

Unavailable

19

BOX ASSY., PILOT (UPPER) This part replaces 37610-MB4-671.

37610-MB4-611

Unavailable

20

BOX ASSY., PILOT (LOWER) (NOT AVAILABLE)

37617-MB4-681

Unavailable

21

COVER (LOWER) (NOT AVAILABLE)

37618-MB4-671

Unavailable

22

CABLE ASSY., SPEEDOMETER

44830-MB4-000

Unavailable

23

CABLE (INNER) (NOT AVAILABLE)

44831-MB4-300

Unavailable

25

SCREW, PAN (2X6) This part replaces 90102-434-671.

90600-KJ9-700

Unavailable

25

SCREW, PAN (2X6)

90600-KJ9-700

Unavailable

26

NUT, INSTRUMENT SETTING (NOT AVAILABLE)

90303-MB1-610

Unavailable

27

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

27

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

27

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

28

SCREW, PAN (3X10)

93500-03010-0G

Unavailable

29

SCREW, PAN (3X20) (NOT AVAILABLE)

93500-03020

Unavailable

29

SCREW, PAN (3X20)

93500-03020-0A

$1.49

29

SCREW, PAN (3X20) (NOT AVAILABLE) This part replaces 93500-03020-1A.

93500-03020

Unavailable

30

SCREW, OVAL (4X8)

93700-04008-0B

$1.49

31

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

32

SCREW-WASHER (3X12)

93893-03012-08

Unavailable

32

SCREW-WASHER (3X12) This part replaces 93893-03012-18.

93893-03012-08

Unavailable

33

SCREW, TAPPING (3X10)

93901-32220

$1.49

34

NUT, HEX. (3MM)

94001-03000-0S

$1.49

35

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

35

NUT, CAP (6MM)

94021-06020

$1.73

35

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

35

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

36

NUT, HEX. (3MM)

94002-03000-0S

Unavailable

37

NUT, FLANGE (8MM)

94050-08000

$1.49

38

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

38

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

38

WASHER, PLAIN (6MM)

94101-06800

$1.49

39

WASHER, SPRING (3MM)

94111-03800

$1.49
