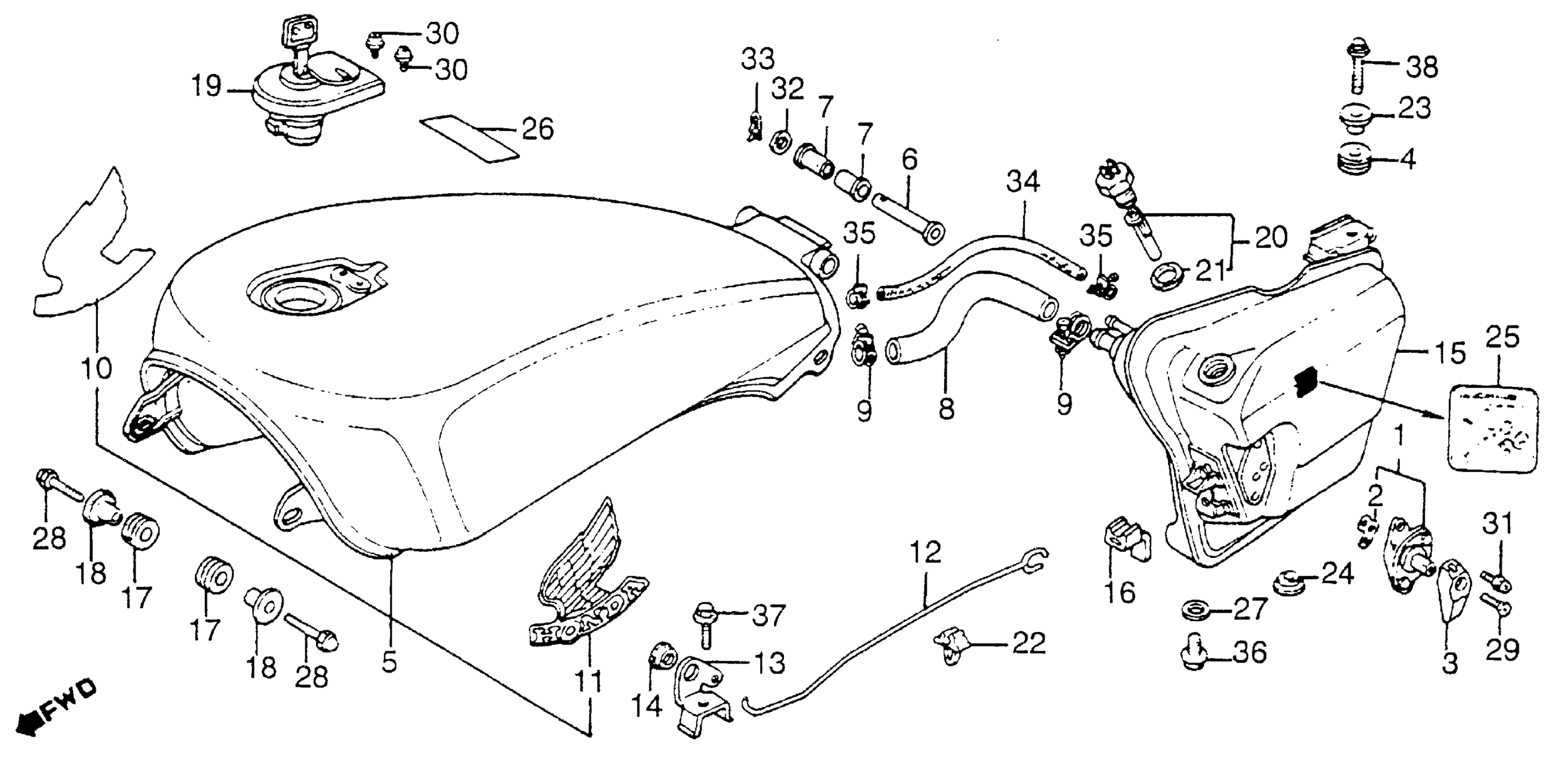

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-MB4-015

Unavailable

2

GASKET

16958-MB4-005

$5.44

3

LEVER, PETCOCK (NOT AVAILABLE)

16963-MB4-000

Unavailable

4

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

5

TANK SET, FUEL *NH1Z* (BLACK-Z) (NOT AVAILABLE)

175A1-MB4-830ZA

Unavailable

5

TANK SET, FUEL *R101CU* (CANDY GLORY RED-U) (NOT AVAILABLE)

175A1-MB4-830ZB

Unavailable

6

SHAFT, FUEL TANK PIVOT (NOT AVAILABLE)

17505-MB1-000

Unavailable

7

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.40

8

TUBE A, FUEL

17511-MB4-770

$49.52

9

BAND, FUEL TUBE (NOT AVAILABLE)

17519-MB1-000

Unavailable

10

MARK, R. FUEL TANK

17531-MB4-680

Unavailable

10

MARK, R. FUEL TANK This part replaces 17531-MB4-830ZA.

17531-MB4-680

Unavailable

10

MARK, R. FUEL TANK This part replaces 17531-MB4-830ZB.

17531-MB4-680

Unavailable

11

MARK, L. FUEL TANK

17532-MB4-680

Unavailable

11

MARK, L. FUEL TANK This part replaces 17532-MB4-830ZA.

17532-MB4-680

Unavailable

11

MARK, L. FUEL TANK This part replaces 17532-MB4-830ZB.

17532-MB4-680

Unavailable

12

STAY, FUEL TANK SUPPORT (NOT AVAILABLE)

17540-MB4-000

Unavailable

13

PIVOT, FUEL TANK SUPPORT STAY (NOT AVAILABLE)

17545-MB4-000

Unavailable

14

GROMMET (NOT AVAILABLE)

17548-MB1-000

Unavailable

15

SUB-TANK, FUEL (NOT AVAILABLE)

17550-MB4-000

Unavailable

16

RUBBER, FUEL TANK MOUNTING (NOT AVAILABLE)

17552-MB1-000

Unavailable

17

CUSHION, FR. FUEL TANK

17611-MB1-000

$3.67

18

COLLAR, FR. FUEL TANK MOUNTING

17612-MB1-000

$19.34

20

SENSOR, FUEL RESERVE (NOT AVAILABLE)

37810-MB4-008

Unavailable

21

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

22

CLIP S, BRAKE PIPE (NOT AVAILABLE)

46391-692-003

Unavailable

23

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

23

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

23

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

24

RUBBER, BATTERY BOX

83618-323-000

$2.47

26

MARK, DRIVE CAUTION (TYPEG)

87560-ME9-670ZA

$5.22

27

WASHER, SEALING (6MM)

90441-028-010

$2.92

28

BOLT, CAP (6X25) (NOT AVAILABLE)

92600-06025-0B

Unavailable

29

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

30

SCREW-WASHER (4X6)

45319-634-003

$2.48

31

SCREW-WASHER (6X12) (NOT AVAILABLE)

93892-06012-00

Unavailable

32

WASHER, PLAIN (8MM)

94101-08800

$1.93

33

PIN, LOCK (8MM)

94251-08400

Unavailable

34

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

35

CLIP, TUBE (A14)

95002-01140

Unavailable

36

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

36

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

37

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

37

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

38

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

38

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
