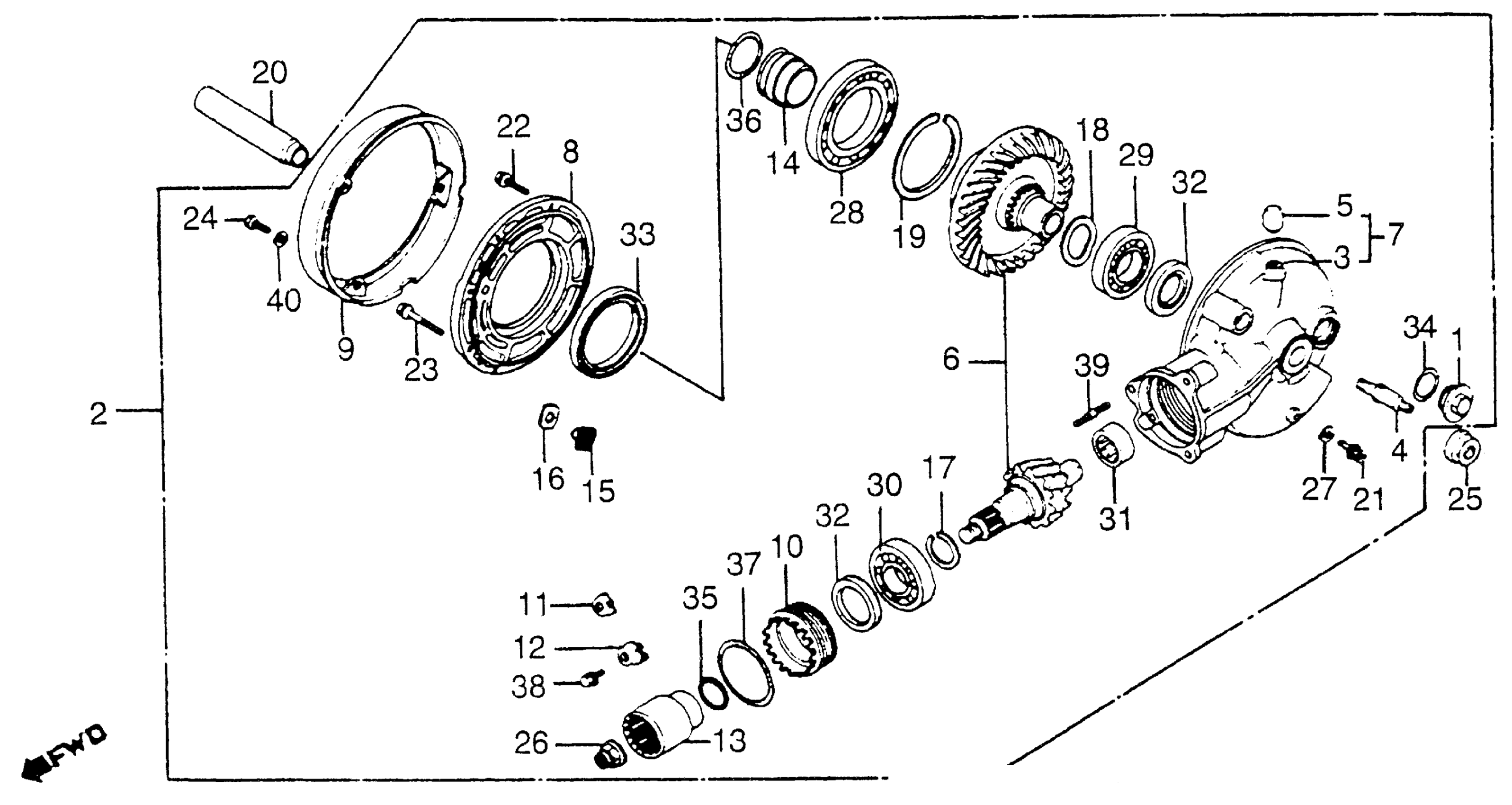

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL DRIVEN (NOT AVAILABLE)

41300-MB4-774

Unavailable

3

CASE, FINAL DRIVEN GEAR (NOT AVAILABLE)

41301-MB4-774

Unavailable

4

STAY, RUBBER (LOWER) (NOT AVAILABLE)

41303-ME4-300

Unavailable

5

CAP, BREATHER This part replaces 41306-MB0-010.

41306-MB0-020

$9.24

5

CAP, BREATHER

41306-MB0-020

$9.24

5

BREATHER ASSY.

41306-ME5-305

Unavailable

6

GEAR SET, FINAL (NOT AVAILABLE)

41310-MB4-305

Unavailable

7

CASE SET, FINAL GEAR (NOT AVAILABLE)

41311-MB4-773

Unavailable

8

COVER, GEAR CASE This part replaces 41321-ME5-770.

41321-ME5-771

$148.38

8

COVER, GEAR CASE

41321-ME5-771

$148.38

9

PLATE, DUST GUARD

41324-MB0-010

$135.82

10

RETAINER, BEARING

41331-MB0-000

Unavailable

11

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

12

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

13

JOINT, PINION

41410-ME5-000

Unavailable

14

HOLDER, O-RING

41433-MB0-010

$12.90

15

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

16

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

16

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

17

SHIM A, PINION GEAR (1.82) (NOT AVAILABLE)

41450-MB0-000

Unavailable

17

SHIM B, PINION GEAR (1.88) (NOT AVAILABLE)

41451-MB0-000

Unavailable

17

SHIM C, PINION GEAR (1.94) (NOT AVAILABLE)

41452-MB0-000

Unavailable

17

SHIM D, PINION GEAR (2.00) (NOT AVAILABLE)

41453-MB0-000

Unavailable

17

SHIM E, PINION GEAR (2.06) (NOT AVAILABLE)

41454-MB0-000

Unavailable

17

SHIM F, PINION GEAR (2.12) (NOT AVAILABLE)

41455-MB0-000

Unavailable

17

SHIM G, PINION GEAR (2.18) (NOT AVAILABLE)

41456-MB0-000

Unavailable

18

WASHER, SPECIAL (35X40)

41510-MB0-003

$12.26

19

SPACER A, RING GEAR (1.82)

41530-MB0-000

$16.64

19

SPACER B, RING GEAR (1.88)

41531-MB0-000

$16.64

19

SPACER C, RING GEAR (1.94)

41532-MB0-000

$16.64

19

SPACER D, RING GEAR (2.00)

41533-MB0-000

$16.64

19

SPACER E, RING GEAR (2.06)

41534-MB0-000

$16.64

19

SPACER F, RING GEAR (2.12)

41535-MB0-000

$16.64

19

SPACER G, RING GEAR (2.18)

41536-MB0-000

$16.64

19

SPACER H, RING GEAR (2.24)

41537-MB0-000

$16.64

19

SPACER I, RING GEAR (2.30)

41538-MB0-000

$16.64

20

COLLAR B, RR. DISTANCE

42625-MAH-000

$36.84

20

COLLAR B, RR. DISTANCE This part replaces 42625-MB4-000.

42625-MAH-000

$36.84

21

BOLT, SEALING (8MM)

90109-371-000

$2.58

22

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

23

BOLT, FLANGE (10X38) (NOT AVAILABLE)

90134-371-000

Unavailable

24

BOLT, HEX. (6X16)

90170-MB0-000

$2.54

25

NUT, U (18MM)

90305-MB4-003

$12.52

26

NUT, HEX. (16MM)

90381-MB0-010

$6.90

27

GASKET (8MM)

90471-580-000

$2.92

28

BEARING, RADIAL BALL (16012C3)

91051-MB0-005

$120.87

29

BEARING, RADIAL BALL (57/34C3)

91052-MB0-003

$46.23

30

BEARING, RADIAL BALL (6305)

91061-MB0-005

$125.16

31

BEARING, NEEDLE (19/18) (KOYO) This part replaces 91062-MB4-773.

91062-MG8-005

$46.33

31

BEARING, NEEDLE (19/18) (KOYO) This part replaces 91062-MB4-774.

91062-MG8-005

$46.33

31

BEARING, NEEDLE (19/18) (KOYO)

91062-MG8-005

$46.33

32

OIL SEAL (34X50X7) (ARAI) This part replaces 91261-MB0-000.

91261-MB0-003

$12.13

32

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$12.13

32

OIL SEAL (34X50X7) (ARAI) This part replaces 91261-MB0-005.

91261-MB0-003

$12.13

33

OIL SEAL (60X80X8) (ARAI) This part replaces 91265-MB0-000.

91265-MB0-003

$15.95

33

OIL SEAL (60X80X8) (ARAI)

91265-MB0-003

$15.95

34

O-RING (30.8MM)

91302-001-020

$3.75

35

O-RING (22.1X2)

91305-679-003

$4.67

35

O-RING (22.1X2) This part replaces 91355-MB0-003.

91305-679-003

$4.67

35

O-RING (22.1X2) This part replaces 91355-MB0-005.

91305-679-003

$4.67

36

O-RING (35.2X2.4) (NOK) This part replaces 91356-MB0-000.

91356-MB0-005

$3.35

36

O-RING (35.2X2.4) (NOK)

91356-MB0-005

$3.35

37

O-RING (58.5X3.5) (NOT AVAILABLE)

91353-MB0-003

Unavailable

37

O-RING (58.5X3.5)

91359-MB0-000

$5.25

38

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

38

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

38

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

39

BOLT, STUD (10X50)

92700-10050-0E

Unavailable

40

WASHER, PLAIN (6MM)

94101-06800

$1.49
