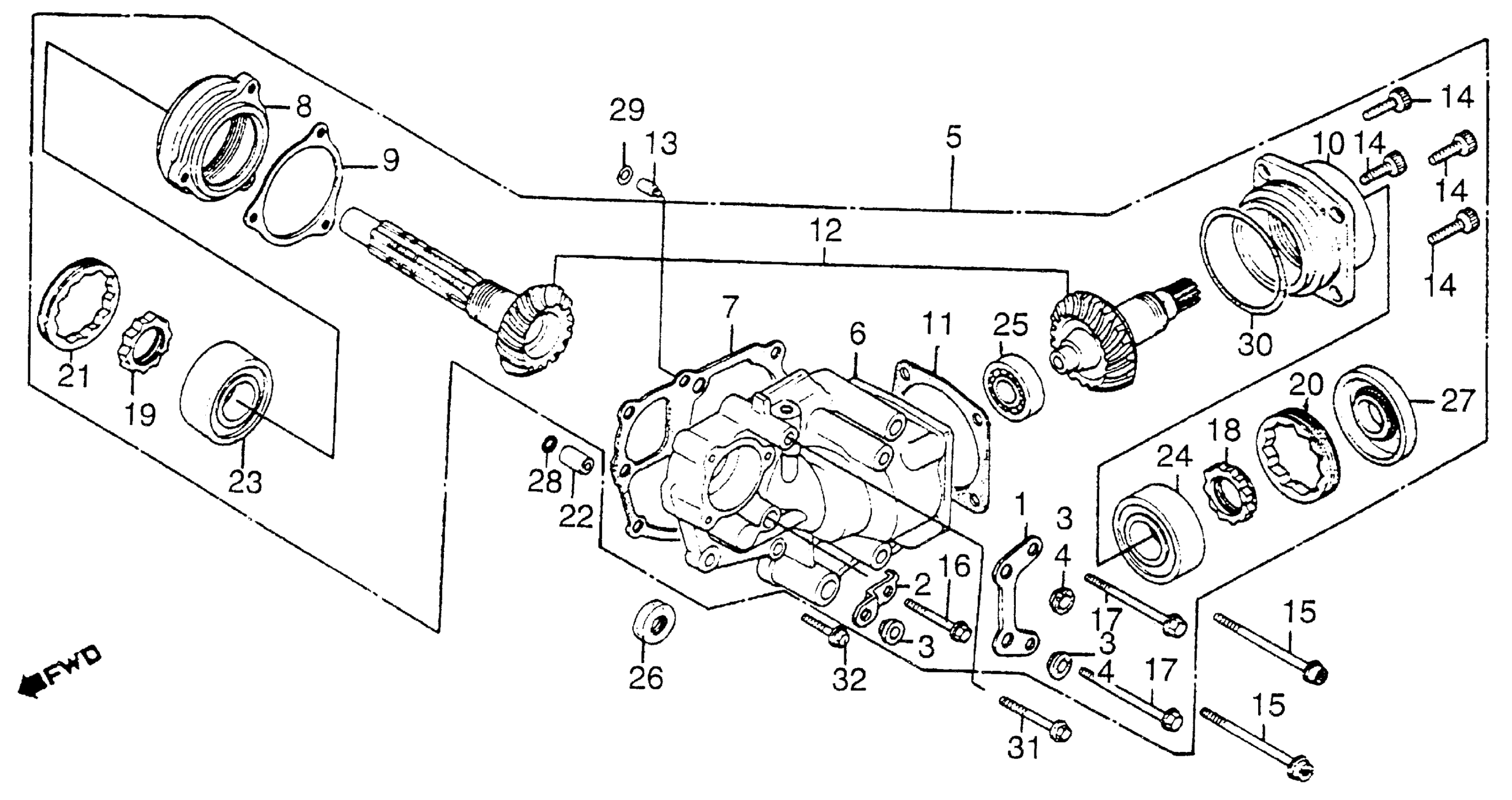

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 CROSS SHAFT Diagram

#

Description
Price

1

STAY, RR. COVER (A) (NOT AVAILABLE)

11342-MB4-770

Unavailable

2

STAY B, RR. COVER (NOT AVAILABLE)

11343-MB4-000

Unavailable

3

GROMMET B, RR. COVER

11345-MB0-000

$4.06

4

GROMMET, RR. COVER (A)

11346-MB4-770

Unavailable

5

CASE ASSY., SIDE GEAR (NOT AVAILABLE)

21100-MB4-830

Unavailable

6

CASE, SIDE GEAR (NOT AVAILABLE)

21200-MB4-000

Unavailable

7

GASKET, SIDE GEAR

21291-MB0-306

Unavailable

7

GASKET, SIDE GEAR This part replaces 21291-MB0-770.

21291-MB0-306

Unavailable

8

HOLDER, COUNTERSHAFT BEARING (NOT AVAILABLE)

21301-MB3-000

Unavailable

9

SHIM, COUNTERSHAFT (0.4) (NOT AVAILABLE)

21321-MB4-000

$14.10

9

SHIM, COUNTERSHAFT (0.45) (NOT AVAILABLE)

21322-MB4-000

Unavailable

9

SHIM, COUNTERSHAFT (0.5) (NOT AVAILABLE)

21323-MB4-000

Unavailable

9

SHIM, COUNTERSHAFT (0.55) (NOT AVAILABLE)

21324-MB4-000

Unavailable

9

SHIM, COUNTERSHAFT (0.6) (NOT AVAILABLE)

21325-MB4-000

Unavailable

10

HOLDER, CROSS SHAFT BEARING

21371-MB0-000

Unavailable

11

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

11

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$25.25

11

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$25.25

11

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$25.25

11

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$25.25

12

SHAFT SET, CROSS (NOT AVAILABLE)

23200-MB4-830

Unavailable

13

ORIFICE, OIL CONTROL (NOT AVAILABLE)

90049-MB0-000

Unavailable

14

BOLT, SOCKET (8X22)

96700-08022-17

$2.02

15

BOLT, FLANGE SOCKET (8X90)

90062-MB4-000

Unavailable

16

BOLT, UBS (8X65) (NOT AVAILABLE)

90063-MB4-000

Unavailable

17

BOLT, HEX. (8X104) This part replaces 90104-360-000.

90104-360-405

Unavailable

18

NUT, LOCK (30MM)

90241-MB0-000

$21.10

19

NUT, LOCK (35MM) (NOT AVAILABLE)

90241-MB4-000

Unavailable

20

NUT, LOCK (64MM)

90242-MB0-000

$32.52

21

NUT, LOCK (75MM) (NOT AVAILABLE)

90242-MB4-000

Unavailable

22

ORIFICE, PIN (10X16) (NOT AVAILABLE)

90703-MB0-000

Unavailable

23

BEARING, BALL (5207) (NOT AVAILABLE)

91004-MB3-003

Unavailable

24

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

24

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

24

BEARING, RADIAL BALL (5206) This part replaces 91012-MB0-003.

91012-MG7-003

$95.20

25

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

25

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

26

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

26

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

27

OIL SEAL (25X66X8.5) (ARAI) This part replaces 91205-MB0-771.

91205-MG7-003

$18.78

27

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

28

O-RING (9.8X2.4)

91305-422-000

$2.47

29

O-RING (5.7X2.2) (ARAI)

91308-MB0-003

$2.22

30

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

30

O-RING (69.5X3) (ARAI) This part replaces 91314-MJ0-000.

91314-MG7-003

$9.24

30

O-RING (69.5X3) (ARAI) This part replaces 91314-300-000.

91314-MG7-003

$9.24

31

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

31

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

32

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

32

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
