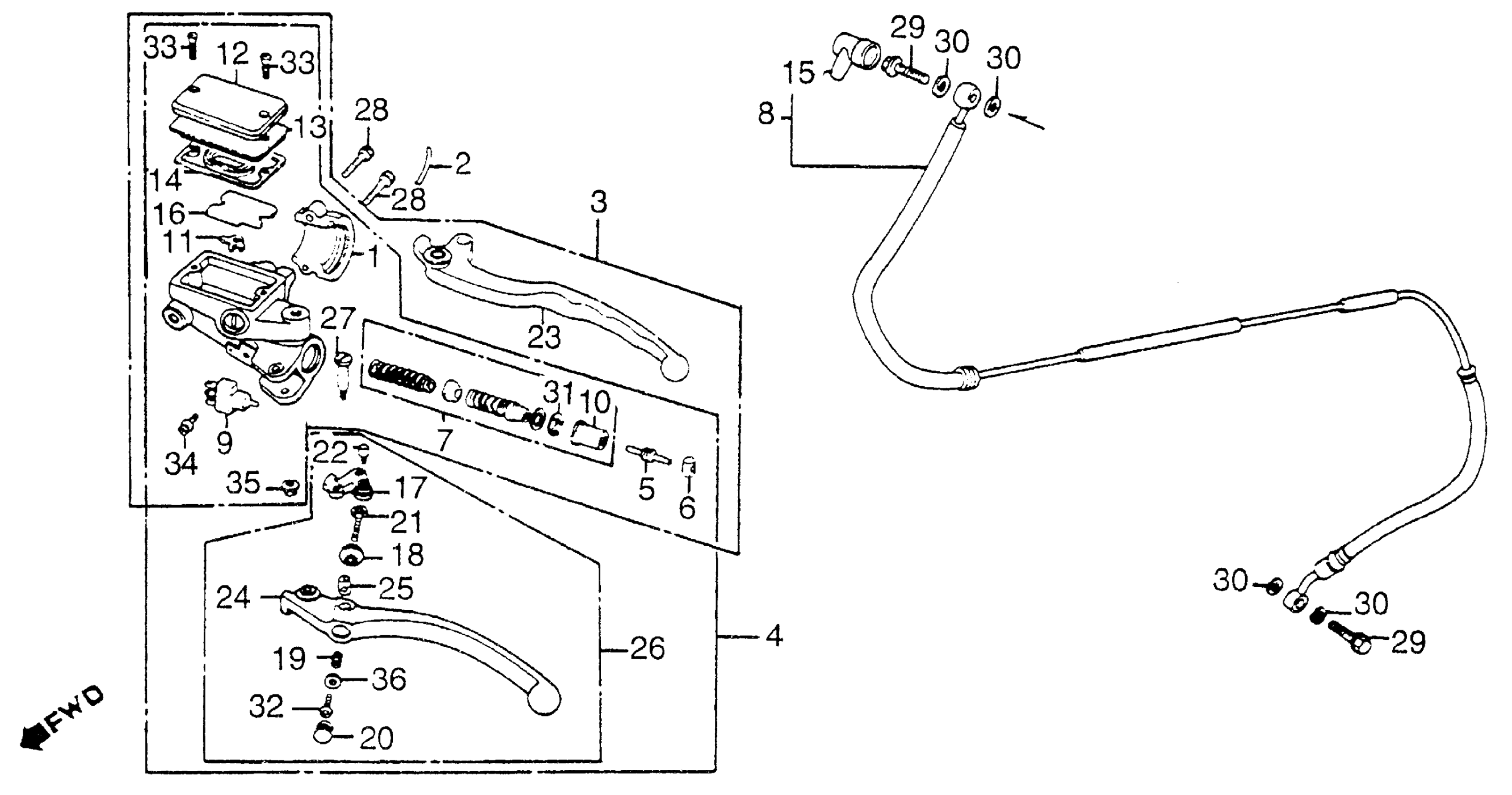

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 CLUTCH MASTER CYLINDER + CLUTCH CONTROL LEVER Diagram

#

Description
Price

1

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

4

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MB4-681

Unavailable

5

ROD, PUSH

22884-MB0-006

$20.66

6

BUSH

22885-MB0-006

$12.95

7

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB4-305

$74.32

8

PIPE ASSY., CLUTCH (NOT AVAILABLE)

22900-MB4-770

Unavailable

9

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

10

BOOT

45504-410-003

$12.16

11

PROTECTOR

45512-MA6-006

$4.28

12

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

13

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

14

DIAPHRAGM

45520-MA5-672

$18.13

15

BOOT, MASTER CYLINDER

45522-422-000

$8.68

17

KNOCKER, CLUTCH (NOT AVAILABLE)

53171-MB4-681

Unavailable

18

ADJUSTER, R. CONTROL LEVER (NOT AVAILABLE)

53172-MJ4-006

Unavailable

19

SPRING, CONTROL LEVER

53173-MJ4-006

Unavailable

20

CAP, CONTROL LEVER (NOT AVAILABLE)

53174-MJ4-006

Unavailable

21

BOLT, ADJUSTING (NOT AVAILABLE)

53176-MJ4-016

Unavailable

22

BOLT, CONTROL LEVER SOCKET (5X5) (NOT AVAILABLE)

53177-MJ4-006

Unavailable

24

LEVER, L. HANDLEBAR (NOT AVAILABLE)

53178-MB4-681

Unavailable

25

JOINT, CONTROL LEVER

53179-MJ4-016

Unavailable

26

CONTROL LEVER ASSY., L. HANDLEBAR (NOT AVAILABLE)

53180-MB4-681

Unavailable

27

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

28

BOLT, SOCKET (6X22)

96600-06022-17

$1.93

28

BOLT, SOCKET (6X22) This part replaces 96700-06022-17.

96600-06022-17

$1.93

29

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

29

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

29

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

30

WASHER, OIL BOLT

90545-300-000

$3.99

31

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

32

SCREW, PAN (3X6)

93500-03006-0A

$1.49

33

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

33

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

34

SCREW-WASHER (4X12)

93893-04012-07

$1.49

34

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
