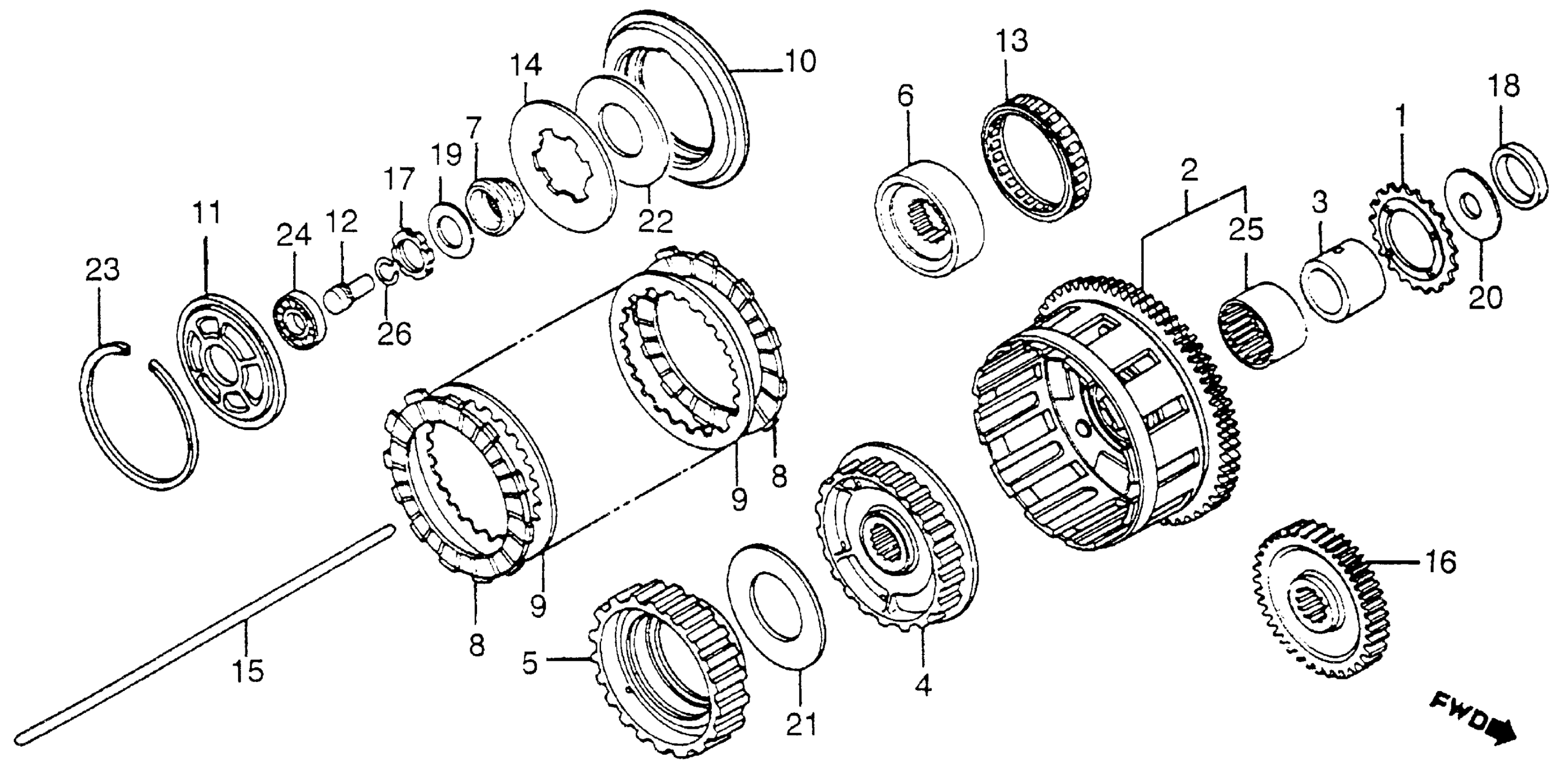

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVEN (NOT AVAILABLE)

15131-MB6-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MB4-830

Unavailable

3

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-MB4-000

Unavailable

4

CENTER A, CLUTCH (NOT AVAILABLE)

22120-MB4-013

Unavailable

5

CENTER B, CLUTCH (NOT AVAILABLE)

22131-MB4-010

Unavailable

6

INNER, ONE-WAY CLUTCH (NOT AVAILABLE)

22141-MB4-000

Unavailable

7

PLATE, SPRING SETTING (NOT AVAILABLE)

22151-MB6-010

Unavailable

8

DISK A, CLUTCH FRICTION

22201-MT8-000

$20.25

8

DISK A, CLUTCH FRICTION This part replaces 22201-425-000.

22201-MT8-000

$20.25

9

PLATE, CLUTCH

22321-425-000

$28.37

10

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22351-MB4-013

Unavailable

11

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22352-MB0-770

Unavailable

12

PIECE, CLUTCH JOINT (NOT AVAILABLE)

22366-MB3-000

Unavailable

13

CLUTCH, ONE-WAY (NOT AVAILABLE)

22425-MB4-003

Unavailable

14

SPRING, CLUTCH (NOT AVAILABLE)

22441-MB4-003

Unavailable

15

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MB4-000

Unavailable

16

GEAR, PRIMARY DRIVE (41T) (NOT AVAILABLE)

23103-MB4-770

Unavailable

17

NUT, LOCK (25MM) (NOT AVAILABLE)

90050-MB6-000

Unavailable

18

COLLAR (30.2X9.2)

90203-MB4-000

Unavailable

19

WASHER (25MM) (NOT AVAILABLE)

90434-422-000

Unavailable

20

WASHER, THRUST (30MM) (NOT AVAILABLE)

90459-MB4-000

Unavailable

21

WASHER (44X85X1.6)

90461-MJ0-000

Unavailable

22

WASHER (48X78X3.2) (NOT AVAILABLE)

90462-MB6-000

Unavailable

23

CIRCLIP (INNER) (95MM)

90601-MB0-771

$11.30

24

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

24

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

24

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

24

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

25

BEARING, NEEDLE (40X47X31) This part replaces 91024-MB4-000.

91024-MM5-003

$86.62

25

BEARING, NEEDLE (40X47X31)

91024-MM5-003

$86.62

26

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
