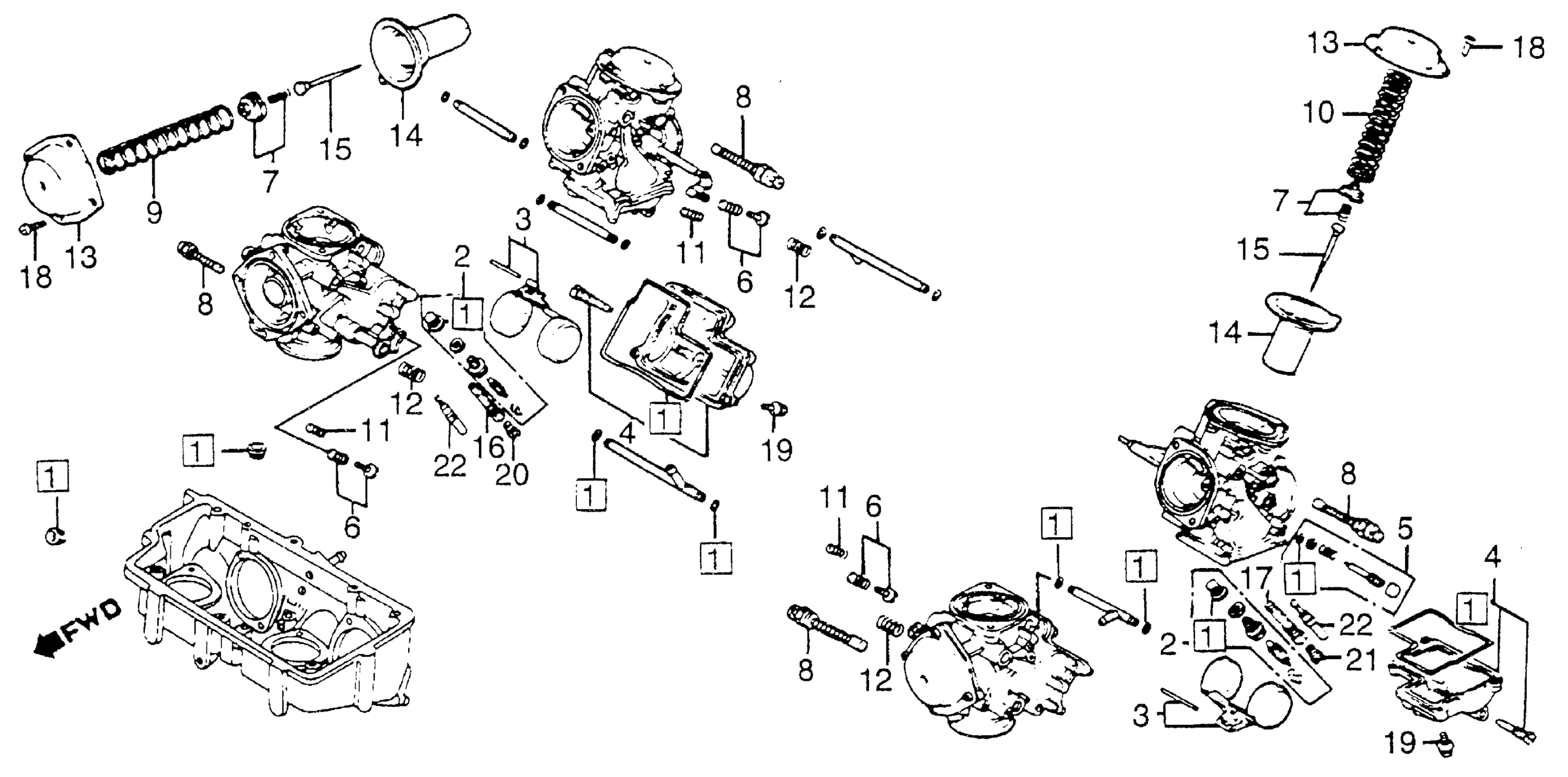

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MB4-622.

16010-MB6-305

$57.49

1

GASKET SET

16010-MB6-305

$57.49

1

GASKET SET This part replaces 16010-MB6-681.

16010-MB6-305

$57.49

2

VALVE SET, FLOAT | Use up to Engine SN VD70C E This part replaces 16011-MB0-671.

16011-MR6-671

$63.64

2

VALVE SET, FLOAT | Use up to Engine SN VD70C E

16011-MR6-671

$63.64

2

VALVE SET, FLOAT | Use from Engine SN VD70C F

16011-MR6-671

$63.64

2

VALVE SET, FLOAT | Use from Engine SN VD70C F This part replaces 16011-MG8-671.

16011-MR6-671

$63.64

3

FLOAT SET

16013-MB0-671

$55.07

4

CHAMBER SET, FLOAT

16015-MAH-750

$131.75

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-871.

16015-MAH-750

$131.75

4

CHAMBER SET, FLOAT This part replaces 16015-MN2-631.

16015-MAH-750

$131.75

5

SCREW SET

16016-MAH-670

$26.48

5

SCREW SET This part replaces 16016-MF5-671.

16016-MAH-670

$26.48

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-MAK-000

$17.18

7

PLATE SET, VALVE This part replaces 16037-MB4-671.

16037-MAK-000

$17.18

7

PLATE SET, VALVE This part replaces 16037-MN9-004.

16037-MAK-000

$17.18

8

VALVE SET, STARTER | Use up to Engine SN VD70C E

16046-MA6-003

$78.81

8

VALVE SET, STARTER | Use from Engine SN VD70E F

16046-MG9-681

$69.54

9

SPRING, FR. VACUUM PISTON (NOT AVAILABLE)

16050-MB4-671

Unavailable

10

SPRING, RR. VACUUM PISTON (NOT AVAILABLE)

16051-MB4-671

Unavailable

11

SPRING

16052-ME9-672

$5.67

12

SPRING

16053-MB0-671

$10.30

13

TOP (NOT AVAILABLE) This part replaces 16107-MB4-671.

16107-ME9-671

Unavailable

13

TOP (NOT AVAILABLE)

16107-ME9-671

Unavailable

14

PISTON, VACUUM (NOT AVAILABLE) | Use up to Engine SN VD70C E This part replaces 16111-MB4-771.

16112-MB4-771

Unavailable

14

PISTON, VACUUM (NOT AVAILABLE) | Use up to Engine SN VD70C E

16112-MB4-771

Unavailable

14

PISTON, VACUUM (NOT AVAILABLE) | Use from Engine SN VD70C F

16112-MB4-771

Unavailable

15

NEEDLE, JET (NOT AVAILABLE)

16131-MB4-771

Unavailable

16

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-MB0-771

Unavailable

17

HOLDER, RR. JET NEEDLE (NOT AVAILABLE)

16167-MB0-771

Unavailable

18

SCREW, PAN (4X10)

93500-04010-0A

$1.49

19

SCREW-WASHER (4X16)

93892-04016-00

$1.49

20

JET, MAIN (#118) This part replaces 99101-GHB-1180.

99101-MBZ-1180

$10.56

20

JET, MAIN (#118)

99101-MBZ-1180

$10.56

20

JET, MAIN (#118) This part replaces 99101-393-1180.

99101-MBZ-1180

$10.56

21

JET, MAIN (#120) This part replaces 99101-GHB-1200.

99101-MBZ-1200

$9.11

21

JET, SECONDARY MAIN (#120)

99101-MBZ-1200

$9.11

21

JET, MAIN (#120) This part replaces 99101-393-1200.

99101-MBZ-1200

$9.11

21

JET, MAIN (#120) This part replaces 99102-393-1200.

99101-MBZ-1200

$9.11

22

JET, SLOW (#38) This part replaces 99103-437-0380.

99103-MV9-0380

$11.73
