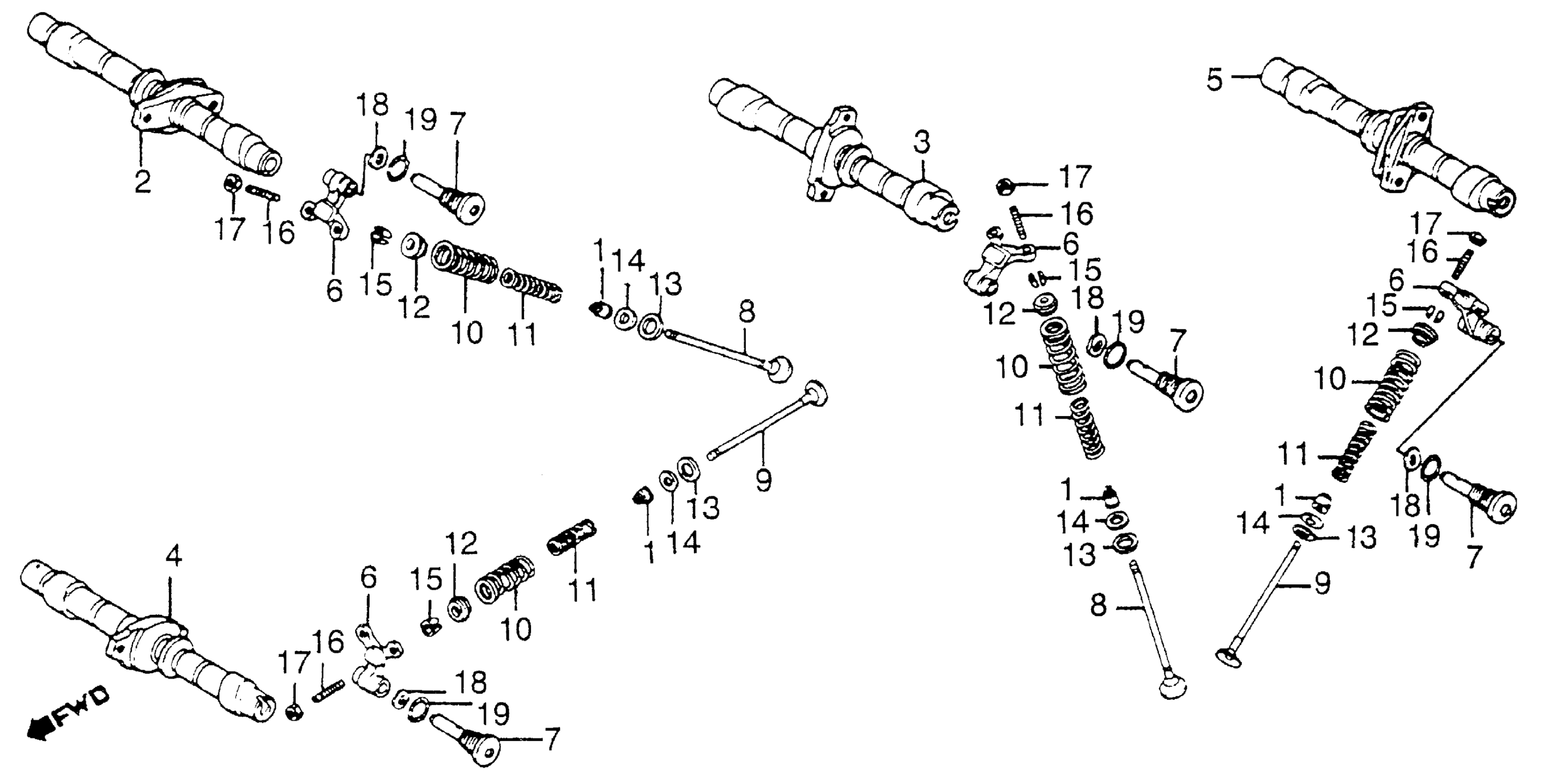

Honda VF1100CA (86) V65 MAGNA, JPN, VIN# JH2SC120-GA300101 TO JH2SC120-GA304425 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM

12209-422-005

$14.57

CAMSHAFT, FR. IN. (NOT AVAILABLE)

14111-MB4-830

Unavailable

CAMSHAFT, RR. IN. (NOT AVAILABLE)

14121-MB4-830

Unavailable

CAMSHAFT, FR. EX. (NOT AVAILABLE)

14131-MB4-830

Unavailable

CAMSHAFT, RR. EX. (NOT AVAILABLE)

14141-MB4-830

Unavailable

ARM, VALVE ROCKER (NOT AVAILABLE)

14611-MB6-010

Unavailable

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14631-KE8-000

Unavailable

VALVE, IN. (NOT AVAILABLE) This part replaces 14711-MB6-000.

14711-MB4-000

Unavailable

VALVE, EX. (NOT AVAILABLE)

14721-MB4-000

Unavailable

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-MB1-871

Unavailable

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-MB1-871

Unavailable

RETAINER, SPRING

14771-MB6-000

Unavailable

SEAT, VALVE SPRING (OUTER)

14775-422-000

Unavailable

SEAT, VALVE SPRING (INNER) (NOT AVAILABLE)

14776-MB0-770

Unavailable

COTTER, VALVE

14781-MB4-000

$3.19

SCREW, TAPPET ADJUSTING (NOT AVAILABLE)

90002-MB1-870

Unavailable

NUT, TAPPET ADJUSTING

90206-590-000

$4.83

WASHER, WAVE (12MM)

90402-428-000

$2.20

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44
