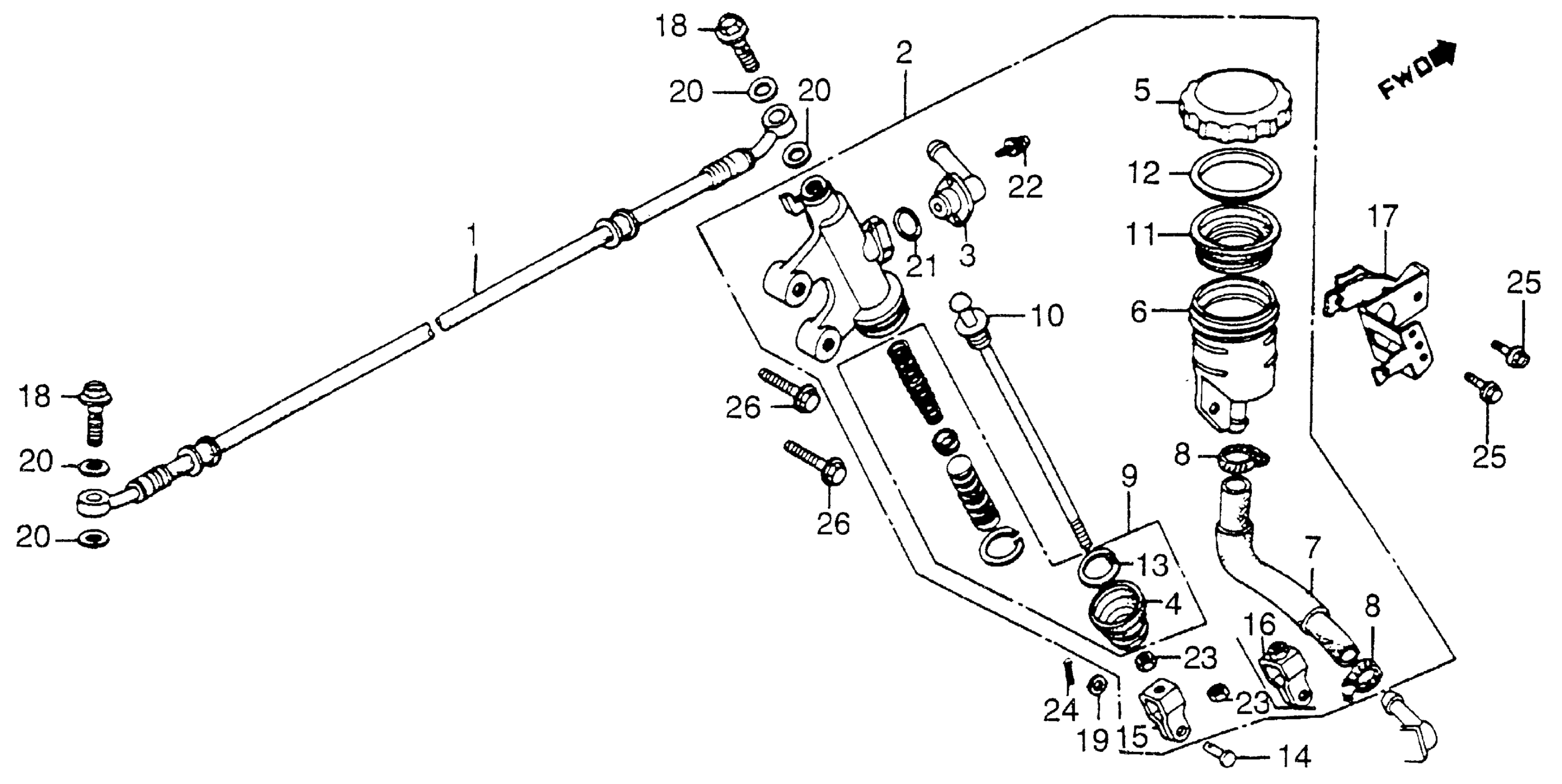

Honda VF1100CA (85) V65 MAGNA, JPN, VIN# 1HFSC120-FA200006 TO 1HFSC120-FA208465 REAR BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MB4-013

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE)

43500-MB4-010

Unavailable

3

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43503-422-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$9.54

5

CAP, OIL CUP

43510-MB4-671

Unavailable

6

CUP, MASTER CYLINDER OIL (NOT AVAILABLE)

43511-443-761

Unavailable

7

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-MB4-010

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

MASTER CYLINDER SET

43520-461-771

Unavailable

10

ROD, PUSH (NOT AVAILABLE)

43530-MB4-000

Unavailable

11

DIAPHRAGM

45520-300-000

$9.05

12

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

12

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

13

CIRCLIP

46182-500-013

$4.90

14

PIN, BRAKE ROD

46503-371-000

Unavailable

15

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

17

STAY, MASTER CYLINDER OIL CUP (NOT AVAILABLE)

50195-MB4-000

Unavailable

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

18

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

19

WASHER (7X12)

90501-310-000

$1.74

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (14.8X2.4)

91212-422-006

$2.56

22

SCREW-WASHER (4X12)

93893-04012-08

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

23

NUT, HEX. (8MM)

94002-08000-0S

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

26

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78
