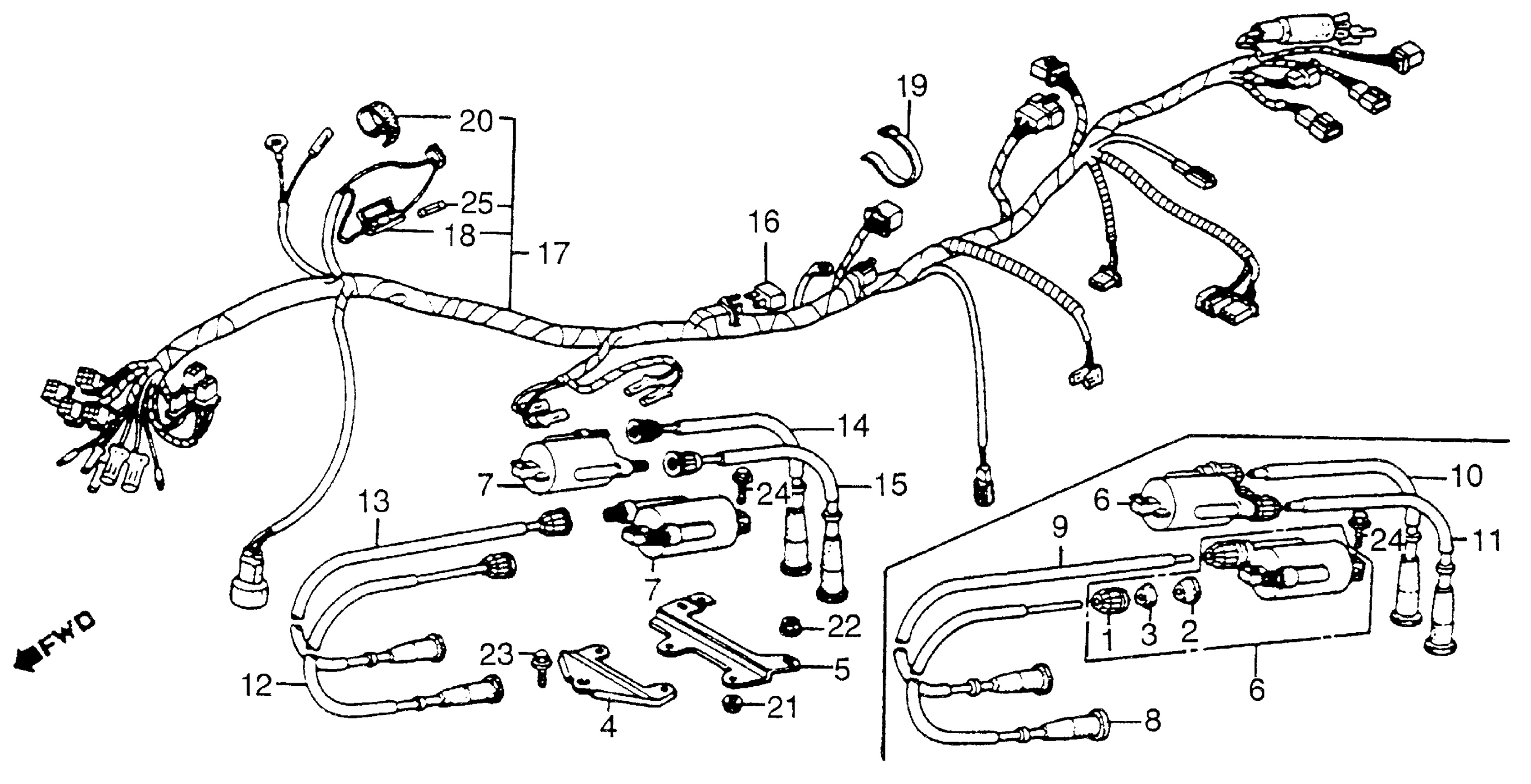

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 WIRE HARNESS + IGNITION COIL Diagram

CAP, SCREW (NOT AVAILABLE)

30501-428-003

Unavailable

SEAL, RUBBER (NOT AVAILABLE)

30502-428-003

$1.49

WASHER, CAP (NOT AVAILABLE)

30503-428-003

$1.52

BRACKET A, IGNITION COIL (NOT AVAILABLE)

30506-MB4-000

Unavailable

BRACKET, IGNITION COIL (B) (NOT AVAILABLE)

30507-MB4-000

Unavailable

COIL, IGNITION This part replaces 30506-MA6-003.

30510-MA6-013

$168.34

COIL, IGNITION This part replaces 30510-MA6-003.

30510-MA6-013

$168.34

COIL, IGNITION

30510-MA6-013

$168.34

CAP 1, IGNITION (NOT AVAILABLE)

30731-MB4-000

Unavailable

CAP 2, IGNITION (NOT AVAILABLE)

30732-MB4-000

Unavailable

CAP 3, IGNITION (NOT AVAILABLE)

30733-MB1-153

Unavailable

CAP 4, IGNITION (NOT AVAILABLE)

30734-MB1-153

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-MB4-770

Unavailable

CASE, FUSE (10A)

32126-463-770

$10.51

BAND, WIRE

32161-438-000

$4.13

BAND, FUSE (NOT AVAILABLE)

32213-MB4-770

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

FUSE B (10A)

98200-21000

$1.49
