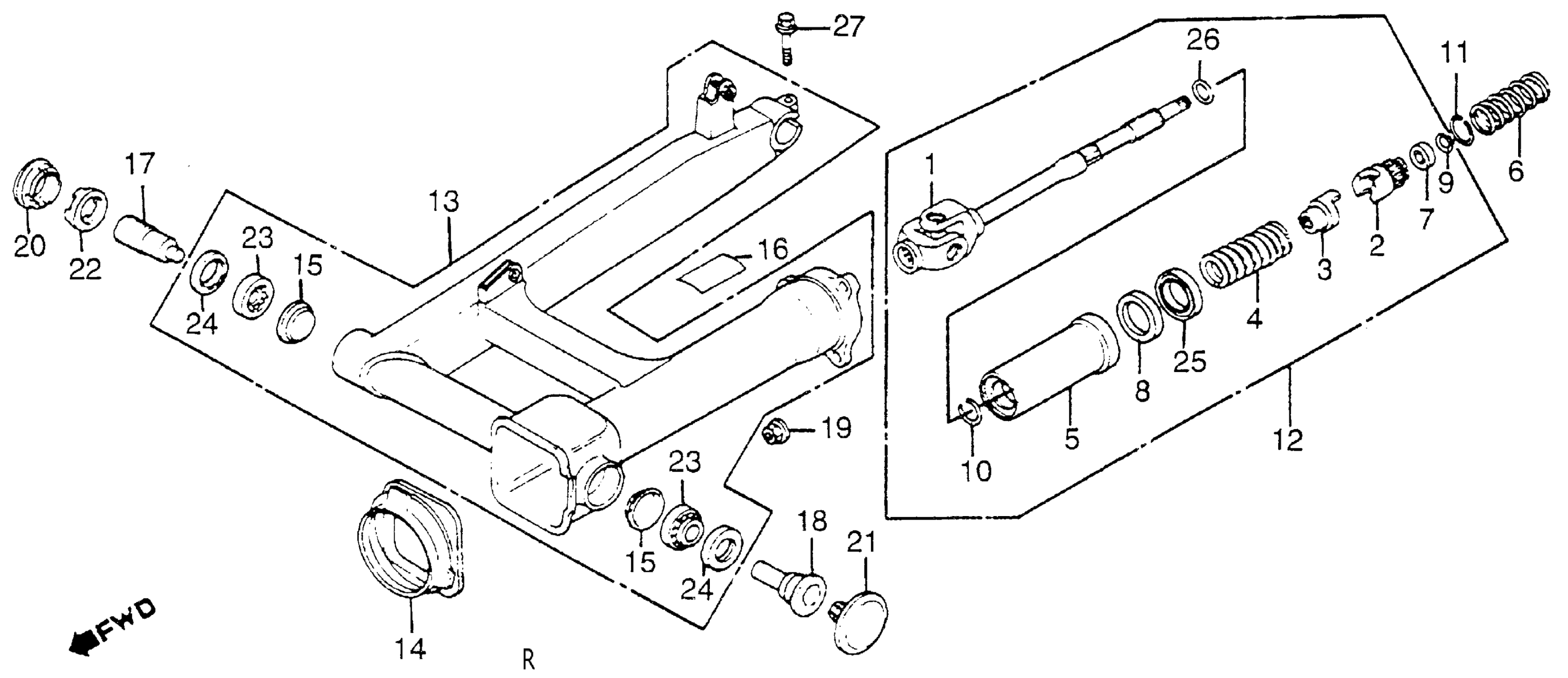

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 SWINGARM + DRIVE SHAFT Diagram

#

Description
Price

1

JOINT, YOKE (NOT AVAILABLE) This part replaces 40200-MB4-013.

40200-MB4-033

Unavailable

1

JOINT, YOKE (NOT AVAILABLE) This part replaces 40200-MB4-023.

40200-MB4-033

Unavailable

1

JOINT, YOKE (NOT AVAILABLE)

40200-MB4-033

Unavailable

2

CAM, DAMPER (NOT AVAILABLE)

40211-MB0-000

Unavailable

3

LIFTER, DAMPER (NOT AVAILABLE)

40212-MB0-000

Unavailable

4

SPRING, DAMPER CAM

40213-MB0-010

$56.59

5

COVER, DAMPER (NOT AVAILABLE)

40214-MB0-010

Unavailable

6

SPRING, PROPELLER SHAFT (NOT AVAILABLE)

40215-MB0-003

Unavailable

7

STOPPER, SPRING (NOT AVAILABLE)

40216-MB0-000

Unavailable

8

GUIDE, OIL SEAL

40217-MB0-010

Unavailable

9

RING, SPRING STOPPER (NOT AVAILABLE)

40218-MB0-000

Unavailable

10

RING, DAMPER COVER

40219-MB0-000

$3.48

11

RING, STOPPER

40221-MB0-000

$4.53

12

SHAFT ASSY., DRIVE (NOT AVAILABLE) This part replaces 40250-MB4-010.

40250-MB4-030

Unavailable

12

SHAFT ASSY., DRIVE (NOT AVAILABLE) This part replaces 40250-MB4-020.

40250-MB4-030

Unavailable

12

SHAFT ASSY., DRIVE (NOT AVAILABLE)

40250-MB4-030

Unavailable

13

SWINGARM ASSY., RR. (NOT AVAILABLE)

52100-MB4-000

Unavailable

14

BOOT, JOINT (NOT AVAILABLE)

52105-MB0-000

Unavailable

15

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

16

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-MB4-671

Unavailable

17

BOLT, R. RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-MB0-000

Unavailable

18

BOLT, L. SWINGARM PIVOT

90122-MB0-000

Unavailable

19

NUT, HEX. (10MM)

90308-357-000

$4.85

20

CAP, R. LOCK NUT

90312-MB0-700

$18.22

21

CAP, L. LOCK NUT

90313-MB0-000

Unavailable

22

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

23

BEARING (30203J)

91066-MC7-004

Unavailable

24

DUST SEAL (26X40X5)

91268-463-003

$6.61

25

OIL SEAL (47X56X7) This part replaces 91271-MB0-000.

91271-MB0-013

$12.43

25

OIL SEAL (47X56X7) This part replaces 91271-MB0-003.

91271-MB0-013

$12.43

25

OIL SEAL (47X56X7) This part replaces 91271-MB0-004.

91271-MB0-013

$12.43

25

OIL SEAL (47X56X7)

91271-MB0-013

$12.43

25

OIL SEAL (47X56X7) This part replaces 91271-MK3-003.

91271-MB0-013

$12.43

26

O-RING (19X1.9)

91361-MB0-000

Unavailable

27

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

27

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
