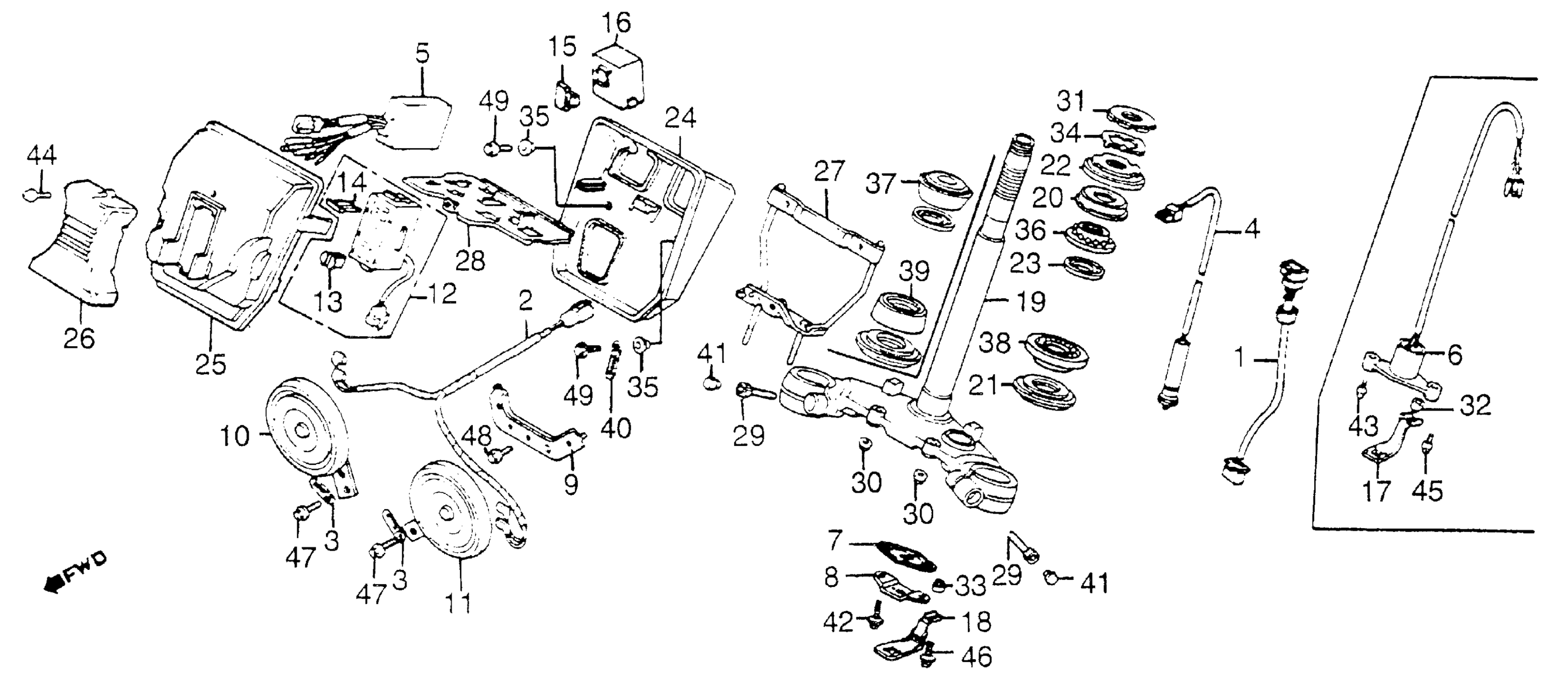

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 STEERING STEM + HORN Diagram

#

Description
Price

2

SUB-HARNESS, HORN

32106-MB4-000

Unavailable

3

CLIP, WIRE (NOT AVAILABLE)

32112-191-000

Unavailable

5

CANCEL UNIT, TURN SIGNAL (NOT AVAILABLE)

35220-MB4-005

Unavailable

6

SENSOR, ANGLE (NOT AVAILABLE)

35230-MB4-000

Unavailable

9

STAY, HORN (NOT AVAILABLE)

38102-MB4-000

Unavailable

10

HORN ASSY. (HIGH) (NOT AVAILABLE)

38110-MB4-640

Unavailable

10

HORN ASSY. (HIGH) (NOT AVAILABLE) This part replaces 38110-MB4-670.

38110-MB4-640

Unavailable

11

HORN ASSY. (LOW) (NOT AVAILABLE)

38120-MB4-640

Unavailable

11

HORN ASSY. (LOW) (NOT AVAILABLE) This part replaces 38120-MB4-670.

38120-MB4-640

Unavailable

12

BOX ASSY., FUSE (NOT AVAILABLE)

38200-MB4-005

Unavailable

13

PULLER, FUSE (NOT AVAILABLE)

38205-MB4-000

Unavailable

14

FUSE, BLADE (15A) This part replaces 38231-SA5-003.

98200-31500

$1.49

14

FUSE, BLADE (15A)

98200-31500

$1.49

17

SUPPORT, SENSOR (NOT AVAILABLE)

50108-MB0-000

Unavailable

19

STEM, STEERING (NOT AVAILABLE) This part replaces 53200-MB4-000.

53200-MB4-010

Unavailable

19

STEM, STEERING (NOT AVAILABLE)

53200-MB4-010

Unavailable

20

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

21

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

22

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

23

HOLDER, GREASE

53223-371-010

Unavailable

24

CASE, CONNECTOR HOLDER (NOT AVAILABLE) This part replaces 61305-MB4-000.

61305-MB4-680

Unavailable

25

COVER, CONNECTOR HOLDER (NOT AVAILABLE)

61306-MB4-770

Unavailable

26

COVER, FUSE HOLDER (NOT AVAILABLE)

61307-MB4-000

Unavailable

27

STAY, CONNECTOR HOLDER CASE (NOT AVAILABLE)

61308-MB4-000

Unavailable

28

PLATE, CONNECTOR HOLDER (NOT AVAILABLE)

61309-MB4-770

Unavailable

29

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

30

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.49

30

NUT, FLANGE (6MM) This part replaces 90301-428-900.

94050-06070

$1.49

30

NUT, FLANGE (6MM)

94050-06070

$1.49

31

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

32

COLLAR, SENSOR (NOT AVAILABLE)

90315-MB0-000

Unavailable

34

WASHER, LOCK

90506-425-830

$7.05

35

WASHER (6X20)

90512-300-000

$3.08

36

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

36

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

38

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

38

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

40

CLAMP (NOT AVAILABLE)

91403-663-000

Unavailable

43

SCREW, PAN (5X16)

93500-05016-0A

$1.49

44

SCREW-WASHER (4X14)

93891-04014-07

$1.49

45

SCREW-WASHER (5X16)

93894-05016-07

$1.49

47

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

47

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

48

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

48

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
