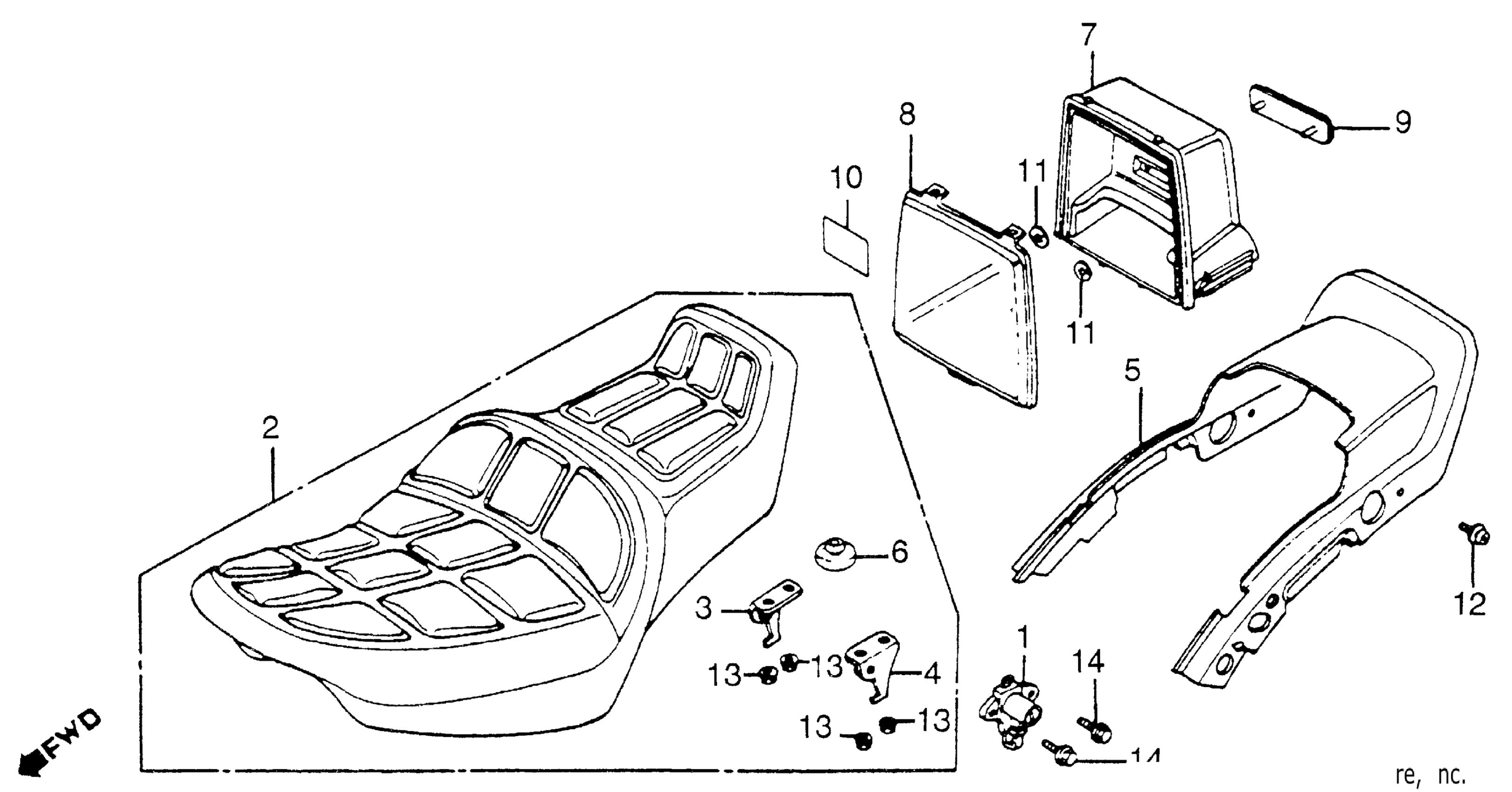

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 SEAT Diagram

HOLDER ASSY., HELMET (NOT AVAILABLE)

50710-MB4-013

Unavailable

SEAT ASSY. (NOT AVAILABLE) This part replaces 77100-MB4-000.

77100-MB4-830

Unavailable

SEAT ASSY. (NOT AVAILABLE) This part replaces 77100-MB4-010.

77100-MB4-830

Unavailable

SEAT ASSY. (NOT AVAILABLE) This part replaces 77100-MB4-020.

77100-MB4-830

Unavailable

SEAT ASSY. (NOT AVAILABLE) This part replaces 77100-MB4-030.

77100-MB4-830

Unavailable

SEAT ASSY. (NOT AVAILABLE)

77100-MB4-830

Unavailable

PLATE, R. SEAT LOCK (NOT AVAILABLE)

77104-MB4-000

Unavailable

PLATE, L. SEAT LOCK (NOT AVAILABLE)

77105-MB4-000

Unavailable

COWL, RR. *R131CU* (CANDY ANDROMEDA RED) (NOT AVAILABLE)

77200-MB4-000ZD

Unavailable

COWL, RR. *NH1Z* (BLACK-Z) (NOT AVAILABLE)

77200-MB4-000ZC

Unavailable

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

BOX, TOOL (NOT AVAILABLE)

83500-MB4-000

Unavailable

COVER, TOOL BOX (NOT AVAILABLE)

83501-MB4-000

Unavailable

EMBLEM, TOOL BOX

83504-MB4-000

Unavailable

MARK, ACCESSORIES & LOADING CAUTION

87512-461-770

Unavailable

NUT, SPEED (3MM)

90313-567-000

$3.97

SCREW-WASHER (5X12)

93891-05012-00

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
