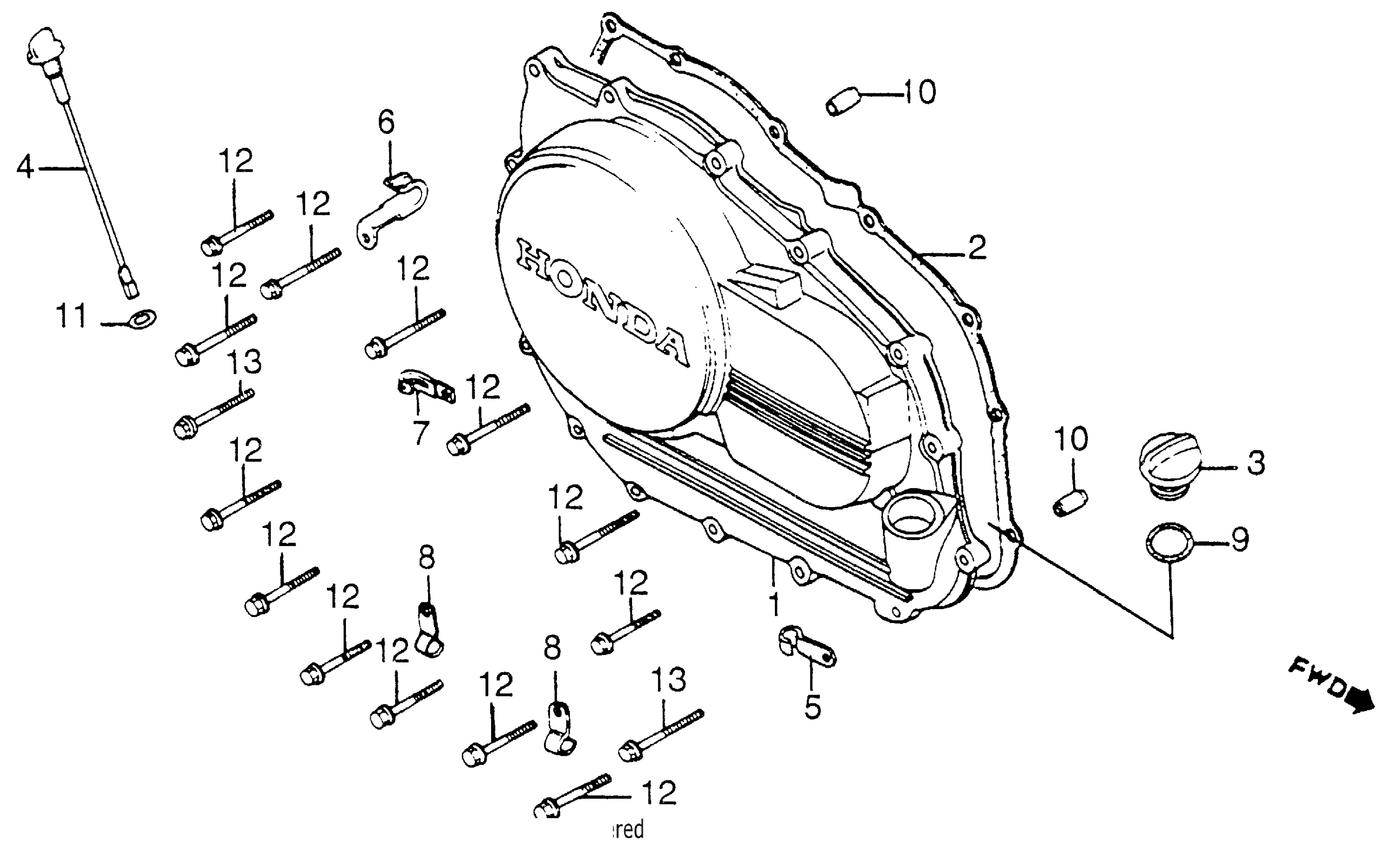

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 RIGHT CRANKCASE COVER Diagram

COVER ASSY., R. (NOT AVAILABLE)

11330-MB4-000

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-MB4-000.

11394-MB4-306

Unavailable

GASKET, R. CRANKCASE COVER

11394-MB4-306

Unavailable

CAP, OIL FILLER

15611-MB0-000

$9.93

DIPSTICK, OIL (NOT AVAILABLE)

15650-MB4-000

Unavailable

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17215-393-780

Unavailable

CLAMP, PULSER WIRE

30301-MB0-000

Unavailable

CLAMP, STARTER CABLE

31211-MB0-000

Unavailable

CLAMP, SWITCH WIRE

35211-443-760

$4.13

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (21.5X3.2)

91307-425-003

$2.59

PIN, DOWEL (8X14)

94301-08140

$2.25

O-RING (8.4X2.4)

94608-10000

$1.49

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
