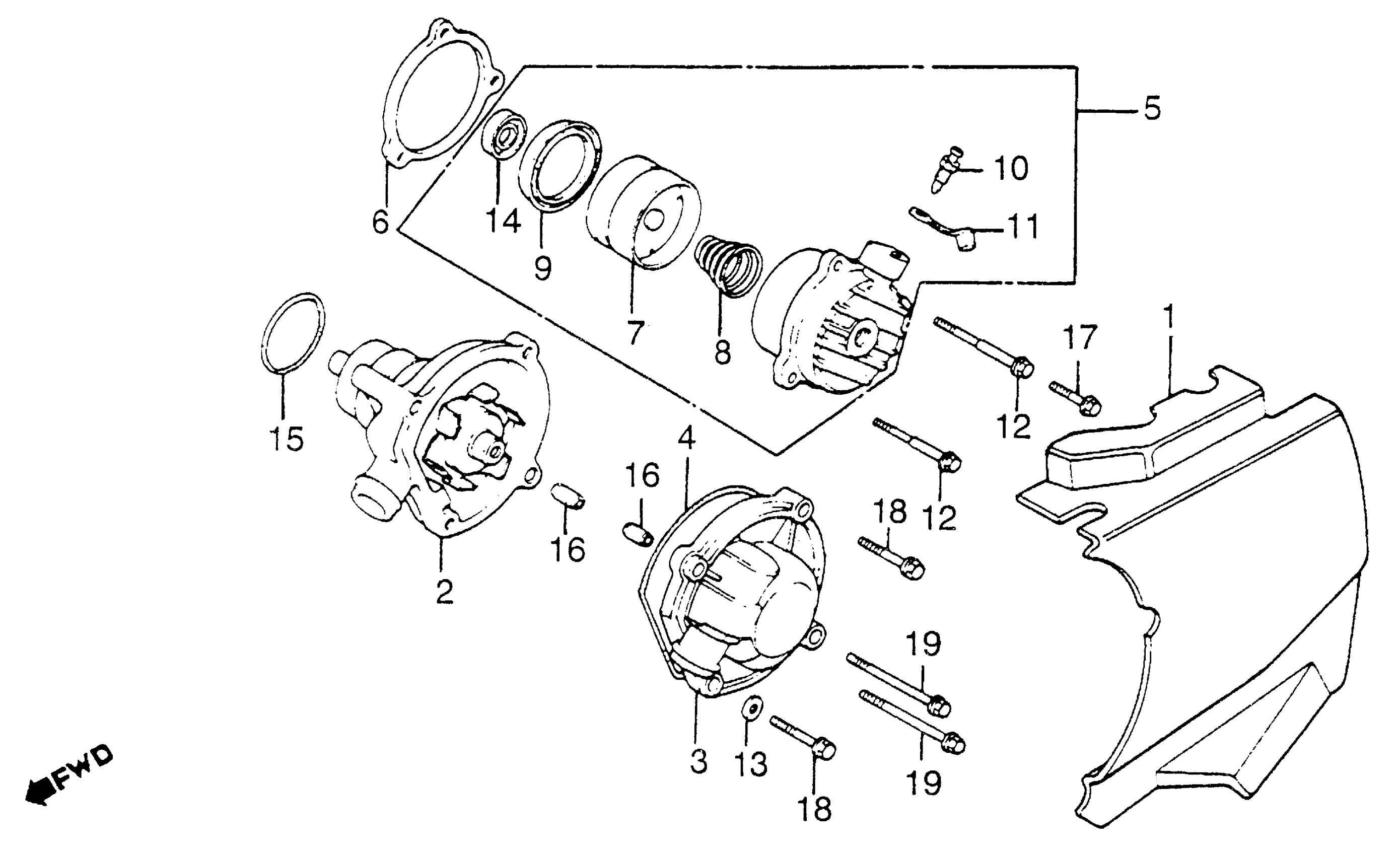

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 REAR COVER + WATER PUMP Diagram

COVER, RR. (NOT AVAILABLE) This part replaces 11341-MB4-000.

11341-MB3-000

Unavailable

WATER PUMP This part replaces 19200-MB4-000.

19200-MB4-010

Unavailable

WATER PUMP (NOT AVAILABLE)

19200-MB4-010

Unavailable

COVER, WATER PUMP (NOT AVAILABLE)

19220-MB4-000

Unavailable

GASKET, WATER PUMP COVER

19226-MB0-000

Unavailable

CYLINDER ASSY., CLUTCH SLAVE

22860-MB0-770

Unavailable

INSULATOR, CLUTCH SLAVE

22862-MB0-307

$5.76

INSULATOR, CLUTCH SLAVE This part replaces 22862-MB0-770.

22862-MB0-307

$5.76

PISTON, SLAVE CYLINDER

22863-MB0-003

$32.02

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

CUP, PISTON

22865-MB0-003

$13.86

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

BOLT, FLANGE (6X55)

90051-MB0-000

Unavailable

WASHER (11MM)

90425-300-000

$2.66

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
