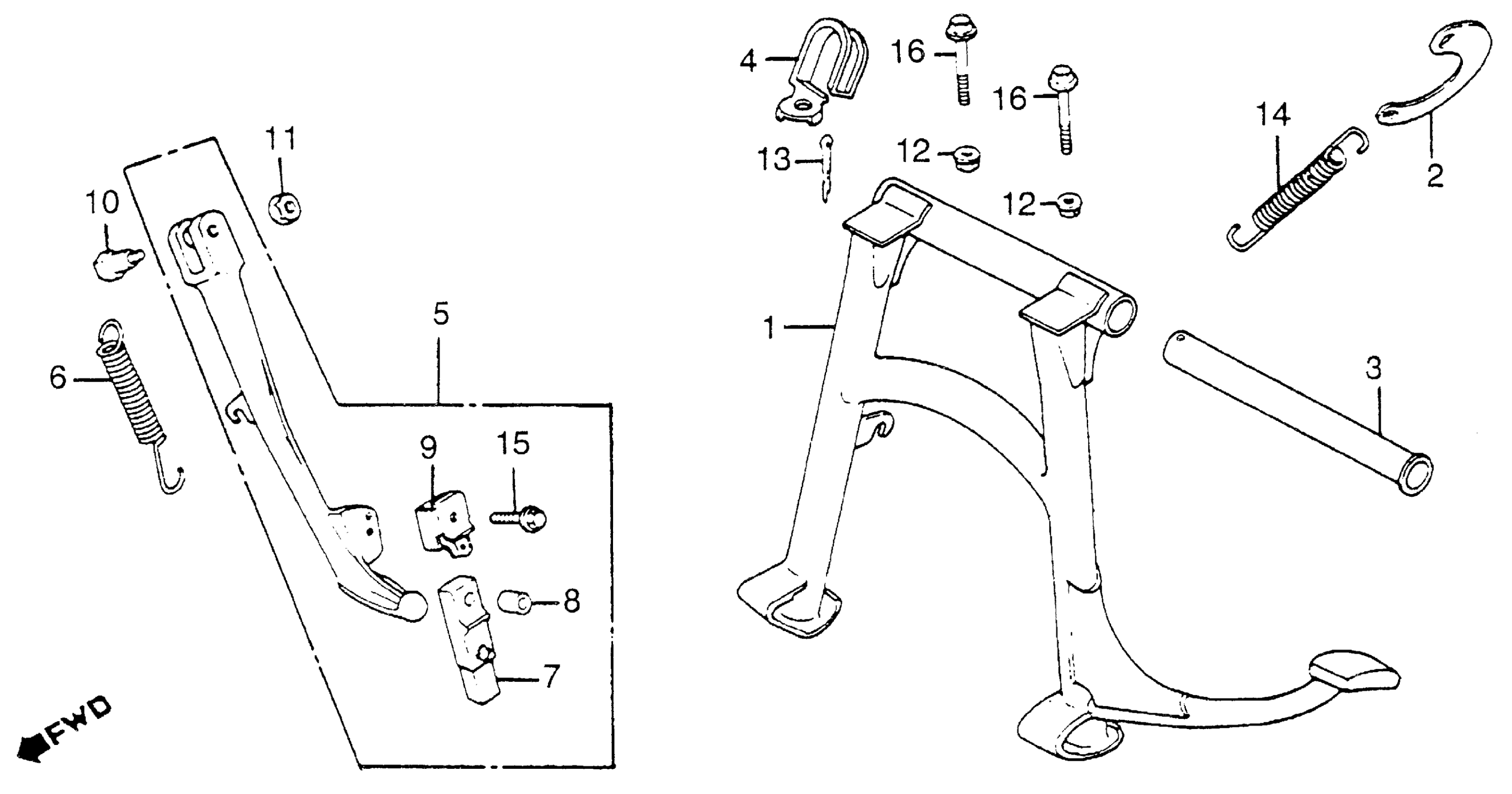

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 MAIN STAND + SIDE STAND Diagram

STAND, MAIN (NOT AVAILABLE)

50500-MB4-000

Unavailable

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

PIPE, MAIN STAND PIVOT (NOT AVAILABLE)

50526-MB0-000

Unavailable

GUIDE, OVERFLOW TUBE (NOT AVAILABLE)

50528-MB4-000

Unavailable

BAR ASSY., SIDE STAND This part replaces 50540-MB1-000.

50540-MB4-830

Unavailable

SPRING, SIDE STAND

50541-MB0-000

$11.75

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

BOLT, SIDE STAND PIVOT (NOT AVAILABLE)

90108-MB0-000

Unavailable

NUT, HEX. (10MM)

94031-10070

Unavailable

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

BOLT, SIDE STAND RUBBER (NOT AVAILABLE)

90115-MB0-000

Unavailable

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
