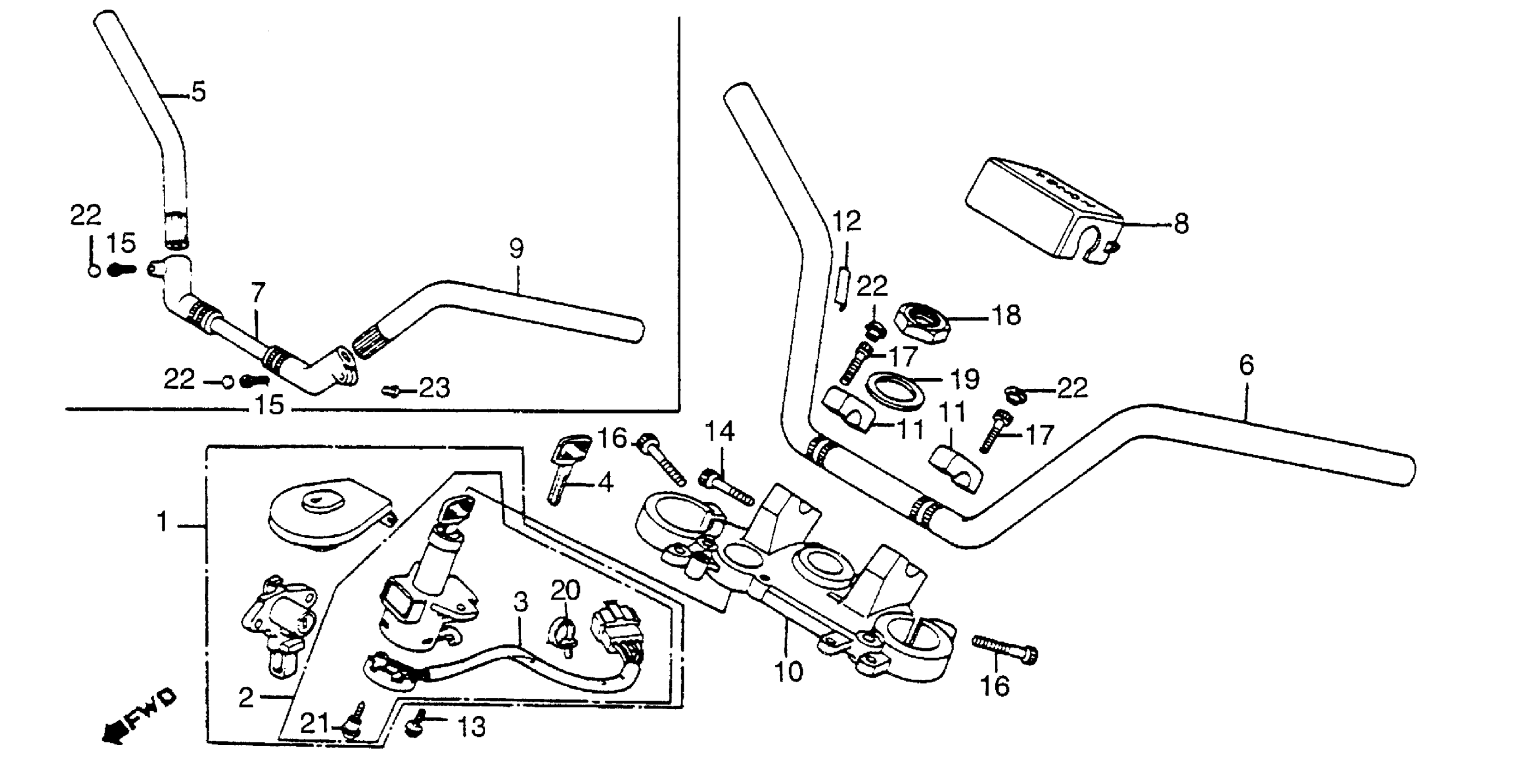

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 HANDLEBAR + TOP BRIDGE Diagram

LOCK SET (NOT AVAILABLE) This part replaces 35010-MB4-770.

35010-MB4-771

Unavailable

LOCK SET (NOT AVAILABLE)

35010-MB4-771

Unavailable

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MB4-771.

35100-MB0-911

Unavailable

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MB4-772.

35100-MB0-911

Unavailable

BASE, CONTACT (NOT AVAILABLE) This part replaces 35101-MB4-771.

35101-MB0-910

Unavailable

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

HANDLEBAR (NOT AVAILABLE)

53100-MB4-770

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE) This part replaces 53230-MB4-000.

53230-MB4-010

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MB4-010

Unavailable

HOLDER (UPPER)

53235-KR3-000

$21.67

HOLDER (UPPER) This part replaces 53235-ME5-000.

53235-KR3-000

$21.67

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-MB1-770

Unavailable

BOLT, SPECIAL SOCKET (NOT AVAILABLE)

90106-422-000

Unavailable

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

BOLT, SOCKET (8X32)

90154-ME9-000

$5.73

NUT, STEERING STEM

90304-425-000

$9.69

WASHER, STEERING STEM

90503-425-000

$4.21

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77
