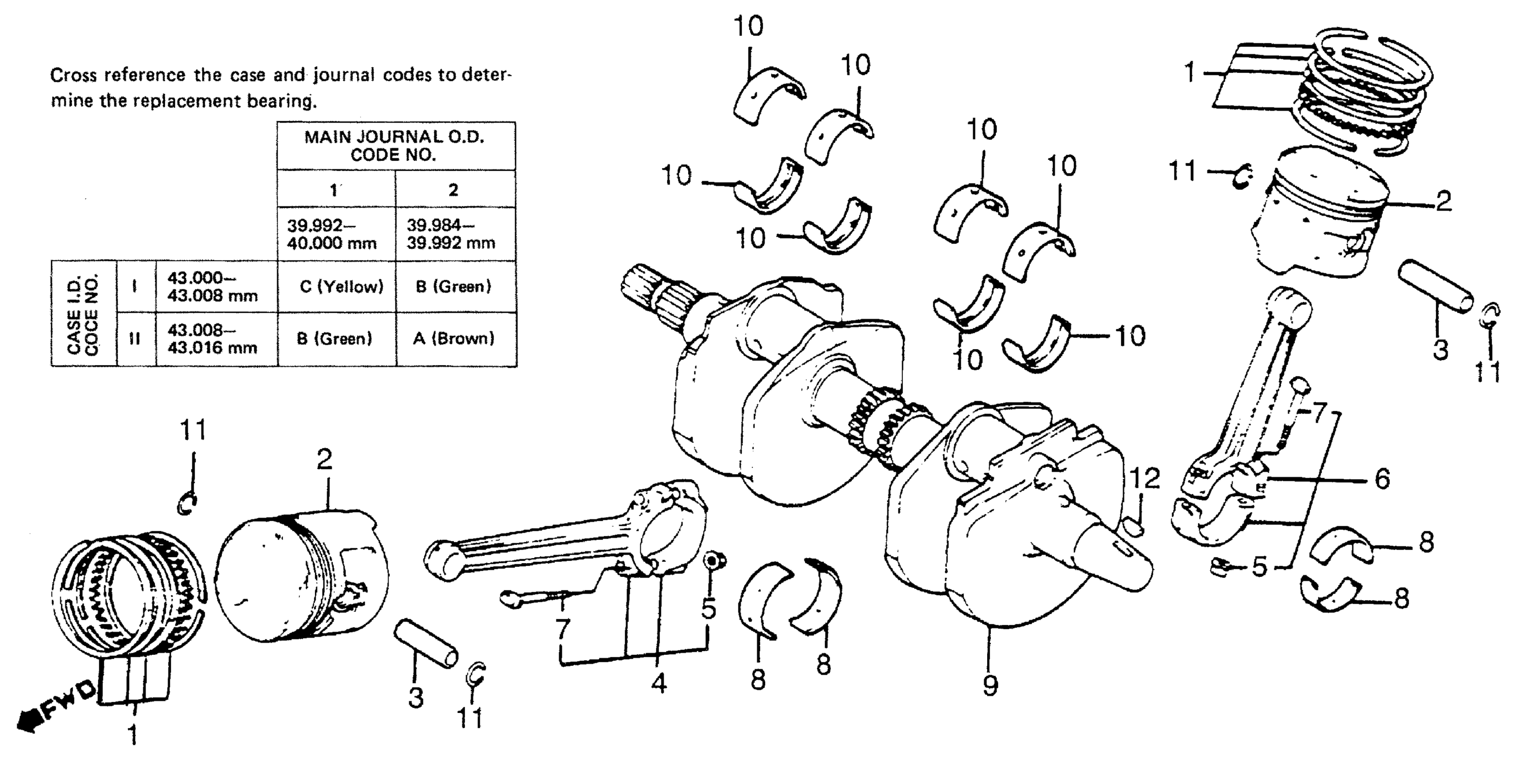

Honda VF1100CA (84) V65 MAGNA, JPN, VIN# 1HFSC120-EA100001 TO 1HFSC120-EA117064 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (RIKEN)

13011-ME9-004

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) (NOT AVAILABLE) | (Optional).

13021-ME9-004

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) (NOT AVAILABLE) | (Optional).

13031-ME9-004

Unavailable

1

RING SET, PISTON (STD) (TEIKOKU) (NOT AVAILABLE)

13011-MB4-005

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) (NOT AVAILABLE) | (Optional).

13021-MB4-005

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) (NOT AVAILABLE) | (Optional).

13031-MB4-005

Unavailable

2

PISTON (STD) (NOT AVAILABLE)

13101-MB4-000

Unavailable

2

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-MB4-000

Unavailable

2

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-MB4-000

Unavailable

3

PIN, PISTON

13111-ME9-000

$19.77

4

ROD ASSY. B, FR. This part replaces 13201-MB4-000.

13202-MB4-405

Unavailable

4

ROD ASSY. B, FR. This part replaces 13202-MB4-000.

13202-MB4-405

Unavailable

4

ROD ASSY. B, FR. This part replaces 13203-MB4-000.

13202-MB4-405

Unavailable

4

ROD ASSY. B, FR. This part replaces 13204-MB4-000.

13202-MB4-405

Unavailable

5

NUT, CONNECTING ROD

13205-634-010

$5.26

6

ROD ASSY. B, RR. This part replaces 13206-MB4-000.

13207-MB4-405

Unavailable

6

ROD ASSY. B, RR. This part replaces 13207-MB4-000.

13207-MB4-405

Unavailable

6

ROD ASSY. B, RR. This part replaces 13208-MB4-000.

13207-MB4-405

Unavailable

6

ROD ASSY. B, RR. This part replaces 13209-MB4-000.

13207-MB4-405

Unavailable

7

BOLT, CONNECTING ROD This part replaces 13213-MC7-004.

13213-MS2-610

$9.92

7

BOLT, CONNECTING ROD

13213-MS2-610

$9.92

8

BEARING A, CONNECTING ROD This part replaces 13224-MB4-003.

13224-MJ4-010

Unavailable

8

BEARING A, CONNECTING ROD

13224-MJ4-010

Unavailable

8

BEARING B, CONNECTING ROD This part replaces 13225-MB4-003.

13225-MJ4-010

Unavailable

8

BEARING B, CONNECTING ROD

13225-MJ4-010

Unavailable

8

BEARING C, CONN ROD This part replaces 13226-MB4-003.

13226-MJ4-010

Unavailable

9

CRANKSHAFT (NOT AVAILABLE) | Use up to Engine SN 2104545 This part replaces 13300-MB4-000.

13300-MB4-010

Unavailable

9

CRANKSHAFT (NOT AVAILABLE)

13300-MB4-010

Unavailable

10

BEARING A, CRANKSHAFT (BROWN) (NOT AVAILABLE) This part replaces 13314-MB4-003.

13314-MB4-013

Unavailable

10

BEARING A, CRANKSHAFT (BROWN) (NOT AVAILABLE)

13314-MB4-013

Unavailable

10

BEARING B, CRANKSHAFT (GREEN) This part replaces 13315-MB4-003.

13315-MB4-013

Unavailable

10

BEARING B, CRANKSHAFT (GREEN)

13315-MB4-013

Unavailable

10

BEARING C, CRANKSHAFT (YELLOW) (NOT AVAILABLE) This part replaces 13316-MB4-003.

13316-MB4-013

Unavailable

10

BEARING C, CRANKSHAFT (YELLOW) (NOT AVAILABLE)

13316-MB4-013

Unavailable

11

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

12

KEY, WOODRUFF (25X14)

90741-413-000

$2.56
