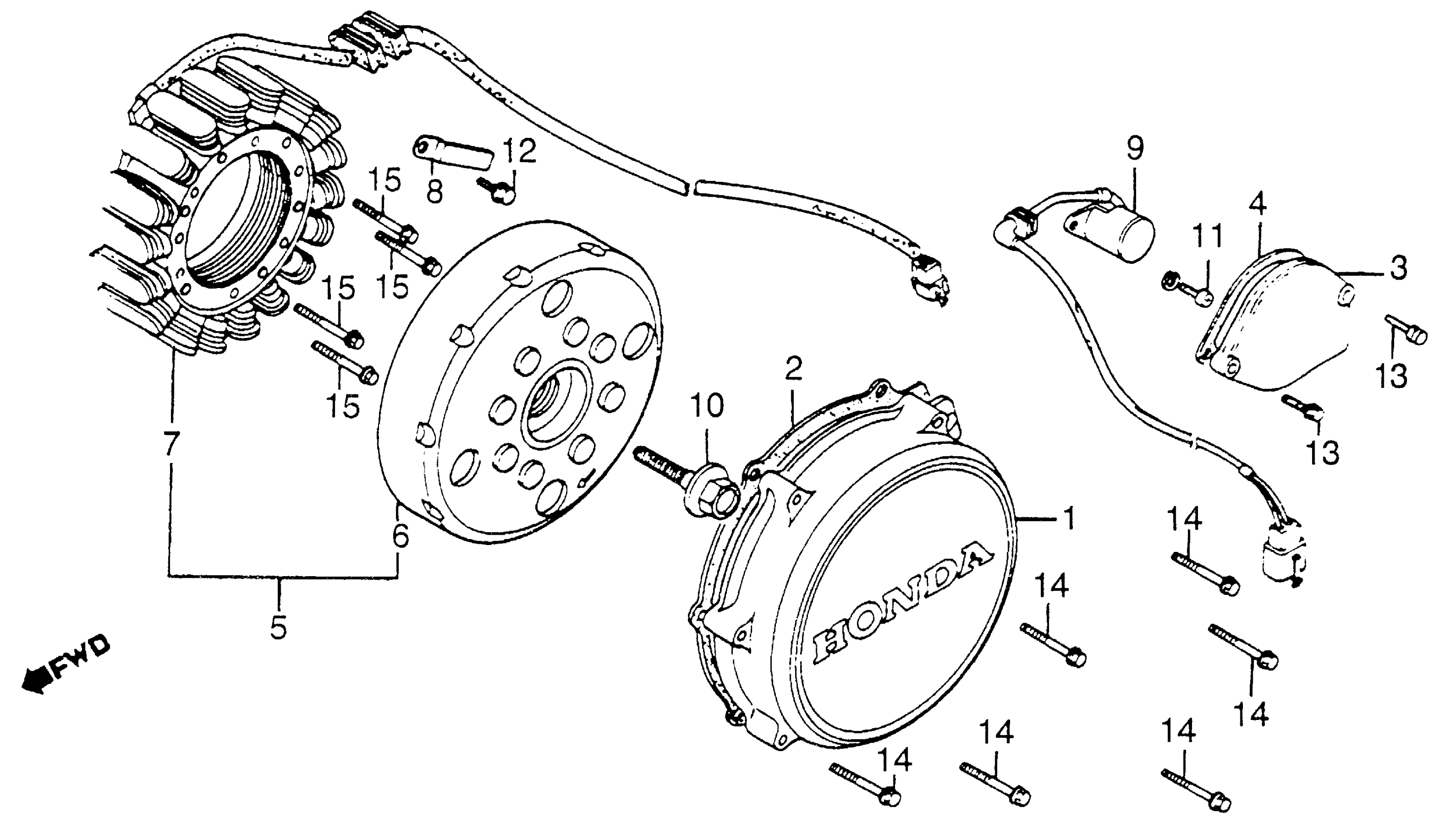

Honda VF1100CA (83) V65 MAGNA, JPN, VIN# JH2SC120-DM000029 TO JH2SC120-DM017677 ALTERNATOR Diagram

#

Description
Price

1

COVER, ALTERNATOR (NOT AVAILABLE)

11631-MB4-000

Unavailable

2

GASKET, ALTERNATOR COVER This part replaces 11636-MB4-000.

11636-MB4-306

Unavailable

2

GASKET, ALTERNATOR COVER

11636-MB4-306

Unavailable

3

COVER, INDICATOR SWITCH (NOT AVAILABLE)

11641-MB0-000

Unavailable

4

GASKET, INDICATOR SWITCH COVER This part replaces 11642-MB0-000.

11642-MB0-306

Unavailable

5

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-MB4-015

Unavailable

6

ROTOR (NOT AVAILABLE)

31110-MB4-005

Unavailable

7

STATOR This part replaces 31120-MB0-405.

31120-MB0-415

Unavailable

7

STATOR

31120-MB0-415

Unavailable

7

STATOR This part replaces 31120-MB4-015.

31120-MB0-415

Unavailable

8

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

31130-MB4-000

Unavailable

9

SWITCH ASSY., CHANGE (NOT AVAILABLE)

35759-MB4-003

Unavailable

10

BOLT, FLANGE (12X40) This part replaces 90017-MB4-000.

90017-MB6-680

Unavailable

11

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

12

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

13

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

13

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

14

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

14

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

15

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

15

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
