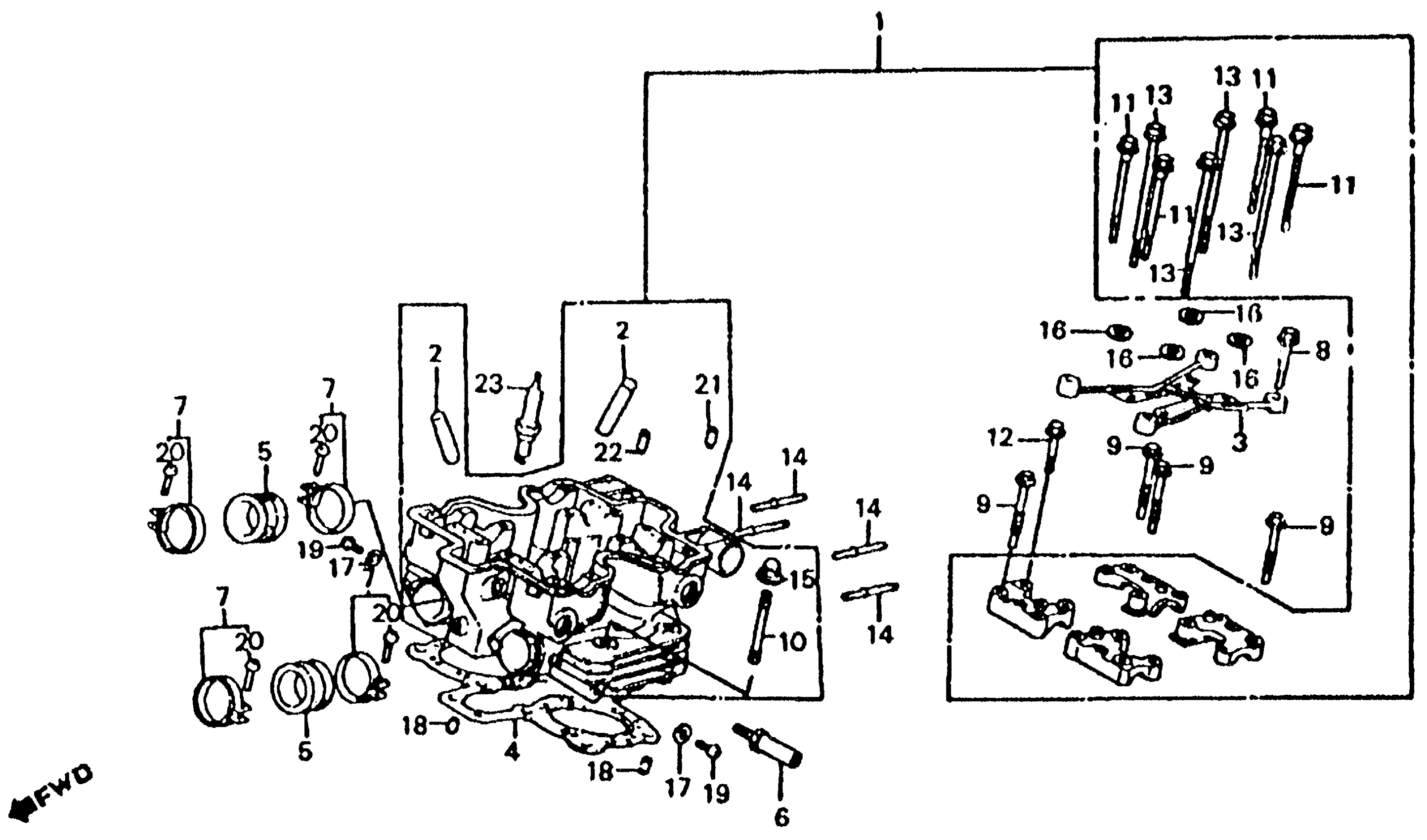

Honda VF1000RAC (85) MOTORCYCLE, JPN, VIN# JH2SC161-FM000003 TO JH2SC161-FM000577 REAR CYLINDER Diagram

CYLINDER HEAD ASSY., RR. This part replaces 12020-MJ4-700.

12020-MJ4-701

Unavailable

CYLINDER HEAD ASSY., RR.

12020-MJ4-701

Unavailable

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

GUIDE, VALVE (OS)

12204-MS2-305

Unavailable

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MB0-010

Unavailable

GASKET, CYLINDER HEAD This part replaces 12251-MB6-010.

12251-MB6-306

Unavailable

GASKET, CYLINDER HEAD This part replaces 12251-MB6-020.

12251-MB6-306

Unavailable

GASKET, CYLINDER HEAD This part replaces 12251-MB6-030.

12251-MB6-306

Unavailable

GASKET, CYLINDER HEAD

12251-MB6-306

Unavailable

INSULATOR, CARBURETOR This part replaces 16212-MB6-000.

16212-MB6-010

$14.02

INSULATOR, CARBURETOR

16212-MB6-010

$14.02

JOINT, BOOSTER

16214-MB0-000

$4.76

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

BAND, INSULATOR

16223-KS5-000

$14.20

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

BOLT, FLANGE (6X62)

90003-MB6-680

Unavailable

BOLT, STUD (9X99)

90005-MB6-680

Unavailable

BOLT, UBS (8X151)

90006-MB0-010

Unavailable

BOLT, FLANGE (6X40)

90008-GE0-710

Unavailable

BOLT, UBS (9X175)

90012-MB6-003

Unavailable

BOLT, STUD (7-6X47)

90035-MB6-000

Unavailable

NUT, CAP (9MM)

90232-MB6-680

$3.89

WASHER (10.2MM)

90401-MJ4-000

Unavailable

WASHER, SEALING (5MM)

90452-323-000

$1.59

PIN, DOWEL (12X24)

91102-MB6-000

Unavailable

SCREW, PAN (5X8)

93500-05008-0G

$1.49

SCREW, PAN (5X28)

93500-05028-0G

$1.49

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

PIN A, DOWEL (12X20)

94301-12200

$2.29

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
