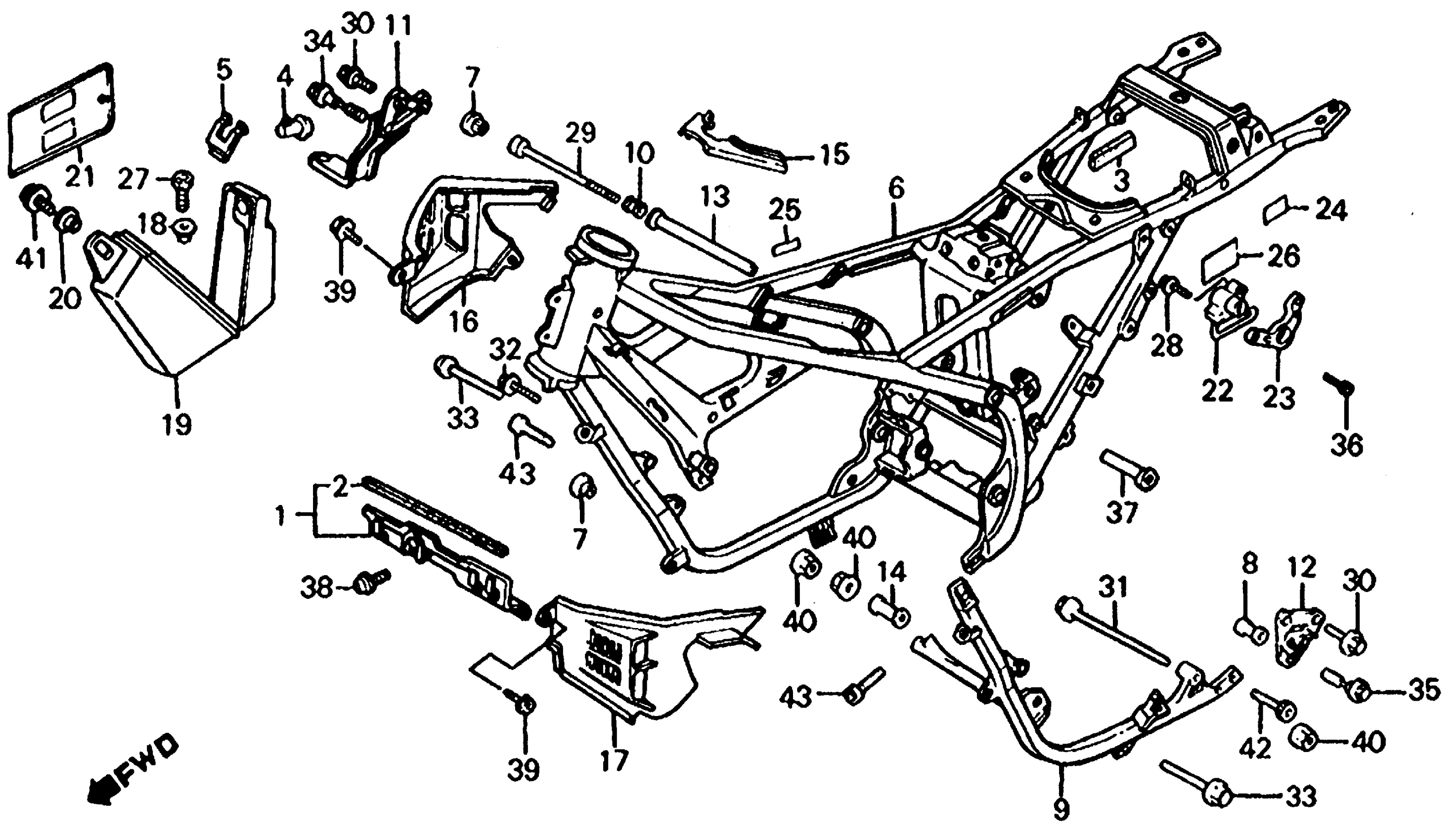

Honda VF1000RAC (85) MOTORCYCLE, JPN, VIN# JH2SC161-FM000003 TO JH2SC161-FM000577 FRAME Diagram

#

Description
Price

1

PLATE, CARBURETOR HEAT GUARD

19125-MB6-830

Unavailable

2

RUBBER, HEAT GUARD SEAL

19127-MB6-000

Unavailable

4

LOCK, FILLER LID

37220-439-007

$54.29

5

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

6

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-MJ4-670ZA

Unavailable

7

CAP, ENGINE HANGER (NOT AVAILABLE)

50200-MB6-000

Unavailable

8

COLLAR, L. ENGINE HANGER (UPPER)

50208-MB2-000

Unavailable

9

SUB-FRAME *NH146M* (ACCURATE SILVER METALLIC)

50210-MJ4-770ZA

Unavailable

10

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50226-MB2-000

Unavailable

11

PLATE, R. ENGINE HANGER CENTER

50356-MJ4-670

Unavailable

12

PLATE, L. ENGINE HANGER CENTER

50357-MJ4-670

Unavailable

13

COLLAR, ENGINE HANGER (UPPER)

50361-MB2-000

Unavailable

14

COLLAR B, ENGINE HANGER

50362-MB0-000

Unavailable

15

COVER, HEAD PIPE GUSSET

61401-MB2-000

Unavailable

16

COVER, R. FR. SIDE (NOT AVAILABLE)

61401-MJ4-670

Unavailable

17

COVER, L. FR. SIDE (NOT AVAILABLE)

61402-MJ4-670

Unavailable

18

COLLAR, TOOL BOX SETTING

64263-MJ4-000

Unavailable

19

BOX, TOOL (NOT AVAILABLE)

77251-MJ4-670

Unavailable

20

COLLAR, TOOL BOX This part replaces 83515-428-000.

83515-KF9-900

Unavailable

21

BAG, OWNER'S MANUAL (NOT AVAILABLE)

83642-MJ4-000

Unavailable

22

HOLDER ASSY., HELMET

84102-MJ4-671

Unavailable

23

BRACKET, HELMET HOLDER

84120-MJ4-670

Unavailable

24

LABEL, HELMET HOLDER

87511-MJ4-670

Unavailable

26

LABEL, RR. DAMPING FORCE ADJUSTING

87519-MJ0-300

Unavailable

27

BOLT, SOCKET (6X14)

90001-ME5-000

$3.43

28

BOLT, BREAK OFF (6MM)

90008-MJ4-670

Unavailable

29

BOLT, SOCKET (10X244)

90100-MB6-000

Unavailable

30

BOLT, SPECIAL FLANGE (8X22)

90100-438-850

$4.85

31

BOLT, FLANGE (10X300)

90101-MB2-000

Unavailable

32

BOLT, FLANGE (8X50) This part replaces 90101-MB6-630.

90103-KCY-650

Unavailable

32

BOLT, FLANGE (8X50)

90103-KCY-650

Unavailable

32

BOLT, FLANGE (8X50) This part replaces 90155-ML0-000.

90103-KCY-650

Unavailable

33

BOLT, FLANGE (10X54)

90105-MB2-000

Unavailable

34

BOLT, FLANGE (8X42)

90107-MB6-000

Unavailable

35

BOLT, FLANGE (8X50) This part replaces 90108-MB6-000.

90108-MB2-000

$5.23

36

BOLT, SOCKET (8X16)

90116-413-000

Unavailable

37

NUT, SPECIAL (10MM)

90303-MB2-000

Unavailable

37

NUT, SPECIAL (10MM)

90303-MB2-900

Unavailable

38

SCREW-WASHER (5X12)

93891-05012-07

$1.49

39

SCREW, TAPPING (5X12)

93904-25280

Unavailable

40

NUT, FLANGE (10MM)

94050-10000

$1.59

41

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

41

BOLT, FLANGE (8X16) This part replaces 95800-08016-00.

95701-08016-00

$1.80

41

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.80

41

BOLT, FLANGE (8X16) This part replaces 95900-08016-00.

95701-08016-00

$1.80

42

BOLT, SOCKET (10X16)

96700-10016-10

Unavailable

43

BOLT, SOCKET (10X25)

96700-10025-10

$2.51
