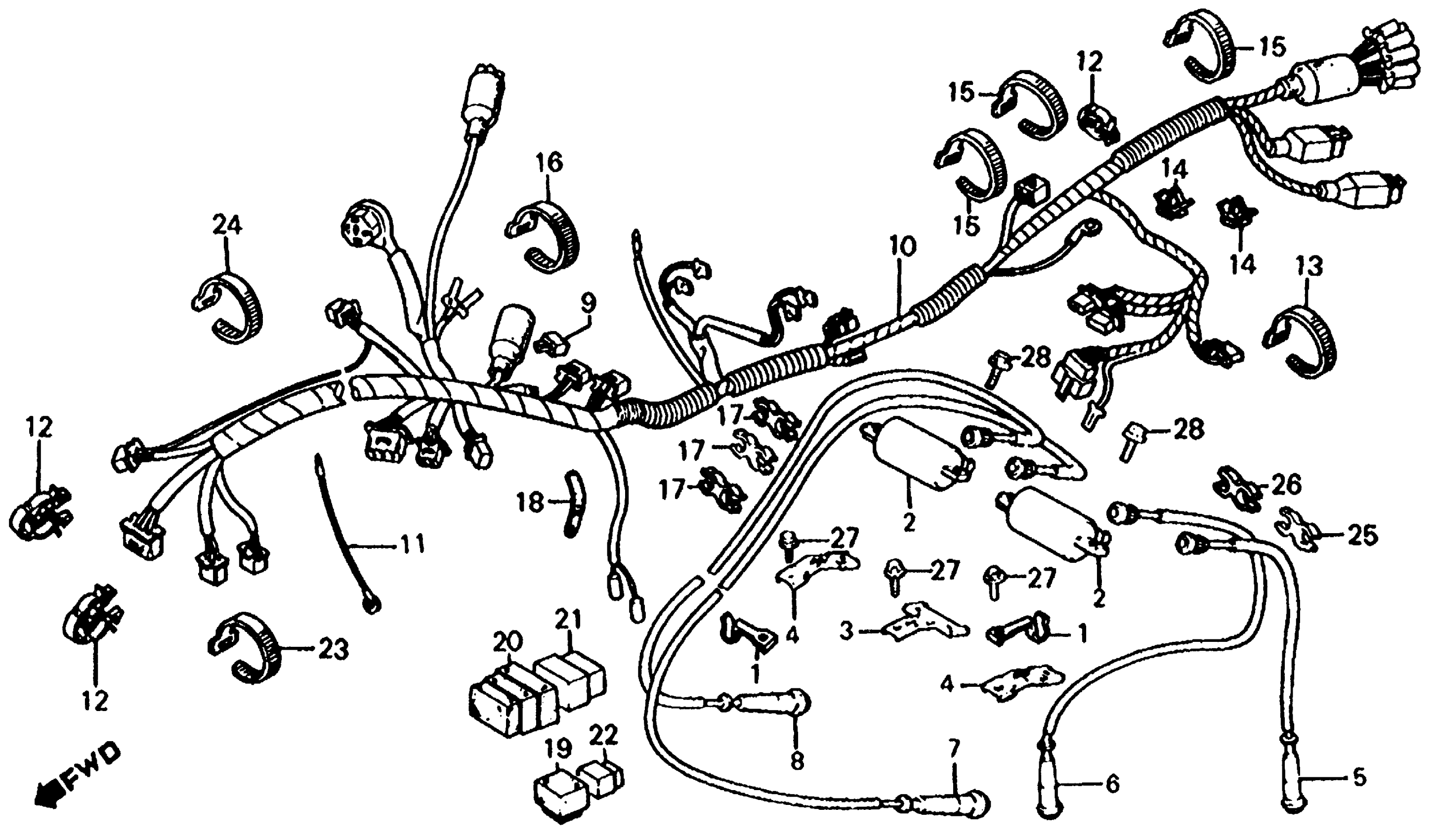

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 WIRE HARNESS + IGNITION COIL Diagram

CLAMP, RESERVE TANK TUBE

19119-MB6-000

Unavailable

COIL, IGNITION

30510-MB0-703

Unavailable

STAY A, IGNITION COIL

30515-MB6-003

Unavailable

STAY B, IGNITION COIL

30516-MB6-003

Unavailable

CAP ASSY. 1, SPARK PLUG

30751-MB6-000

Unavailable

CAP ASSY. 2, SPARK PLUG

30752-MB6-630

Unavailable

CAP ASSY. 3, SPARK PLUG

30753-MB6-630

Unavailable

CAP ASSY. 4, SPARK PLUG (NOT AVAILABLE)

30754-MB2-000

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS

32100-MJ4-870

Unavailable

SUB-CABLE, THERMOSTAT

32111-MJ4-670

Unavailable

CLIP, HARNESS

32127-MJ4-670

$3.45

BAND, WIRE

32161-367-690

$2.92

CLIP, WIRE HARNESS

32161-393-003

$3.07

BAND, CABLE

32161-438-000

$4.13

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

CLAMP, WIRE

32922-MB2-000

Unavailable

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GJ2-004

Unavailable

SUSPENSION, STARTER RELAY (5P)

38506-MJ0-004

Unavailable

RELAY ASSY., POWER (5P) (RC-1203) (MITSUBA)

39762-SB0-003

Unavailable

RELAY ASSY., POWER (5P) (RC-1203) (MITSUBA) This part replaces 39792-SB0-003.

39762-SB0-003

Unavailable

RELAY (4P)

38500-MJ0-405

Unavailable

RELAY (4P) This part replaces 39794-MJ0-004.

38500-MJ0-405

Unavailable

BAND, WIRE HARNESS

90650-MA6-720

$4.15

BAND, WIRE HARNESS

90651-MA6-720

$3.73

CLIP, HOSE

90662-MJ4-670

Unavailable

CLAMP, PIPE

90681-SA7-930

Unavailable

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X18) This part replaces 95700-06018-07.

95701-06018-07

$1.55

BOLT, FLANGE (6X18)

95701-06018-07

$1.55
