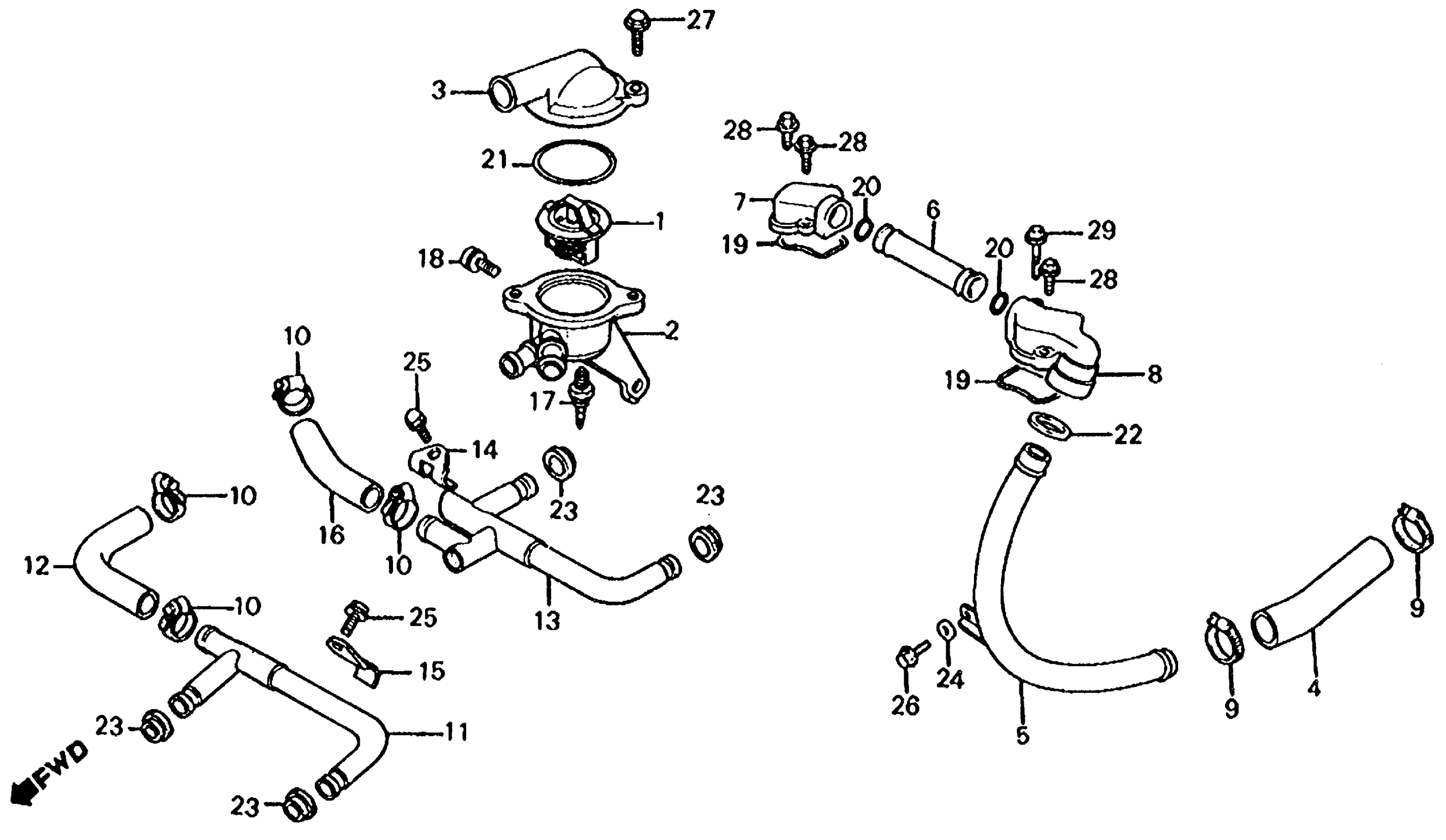

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 WATER PIPE + THERMOSTAT Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$47.39

2

CASE, THERMOSTAT This part replaces 19311-MB6-680.

19311-MB6-681

Unavailable

2

CASE, THERMOSTAT

19311-MB6-681

Unavailable

3

COVER, THERMOSTAT

19315-MB6-680

Unavailable

4

HOSE, CONNECTING

19502-MB6-000

Unavailable

5

PIPE, WATER OUTLET CONNECTING (NOT AVAILABLE)

19504-MB6-000

Unavailable

6

PIPE, CONNECTING

19507-MB6-000

Unavailable

7

CAP A, CONNECTING PIPE (NOT AVAILABLE)

19508-MB6-000

Unavailable

8

CAP B, CONNECTING PIPE

19509-MB6-000

Unavailable

9

CLAMP, WATER HOSE

19516-MB6-000

$13.12

10

CLAMP, WATER HOSE

19503-MB1-870

$11.28

10

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$11.28

11

PIPE, WATER

19520-MB6-680

Unavailable

12

HOSE A, WATER (NOT AVAILABLE)

19526-MB6-680

Unavailable

13

PIPE B, WATER

19530-MB6-680

Unavailable

14

CLAMP, WATER PIPE

19534-MB6-680

Unavailable

15

CLAMP B, WATER PIPE

19535-MB6-680

Unavailable

16

HOSE B, WATER

19536-MB6-680

Unavailable

17

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$73.04

18

BOLT, SPECIAL (10MM)

90042-MB6-680

Unavailable

19

GASKET, CONNECTING CAP

91301-MB0-000

$3.82

20

O-RING (21.9X2.3)

91301-MB6-003

$1.93

20

O-RING (21.9X2.3) This part replaces 91302-371-013.

91301-MB6-003

$1.93

20

O-RING (21.9X2.3) This part replaces 91302-371-023.

91301-MB6-003

$1.93

21

O-RING (54X2)

91307-MB0-003

$3.00

22

SEAL B, WATER PIPE (NOT AVAILABLE)

91315-MB6-000

Unavailable

22

SEAL B, WATER PIPE (NOT AVAILABLE) This part replaces 91315-MB6-003.

91315-MB6-000

Unavailable

23

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.20

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM)

94101-06800

Unavailable

25

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.64

25

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

26

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

26

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

27

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.68

27

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

28

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$1.97

28

BOLT, FLANGE (6X35)

96001-06035-07

$1.97

29

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.28

29

BOLT, FLANGE (6X40)

96001-06040-07

$1.28
