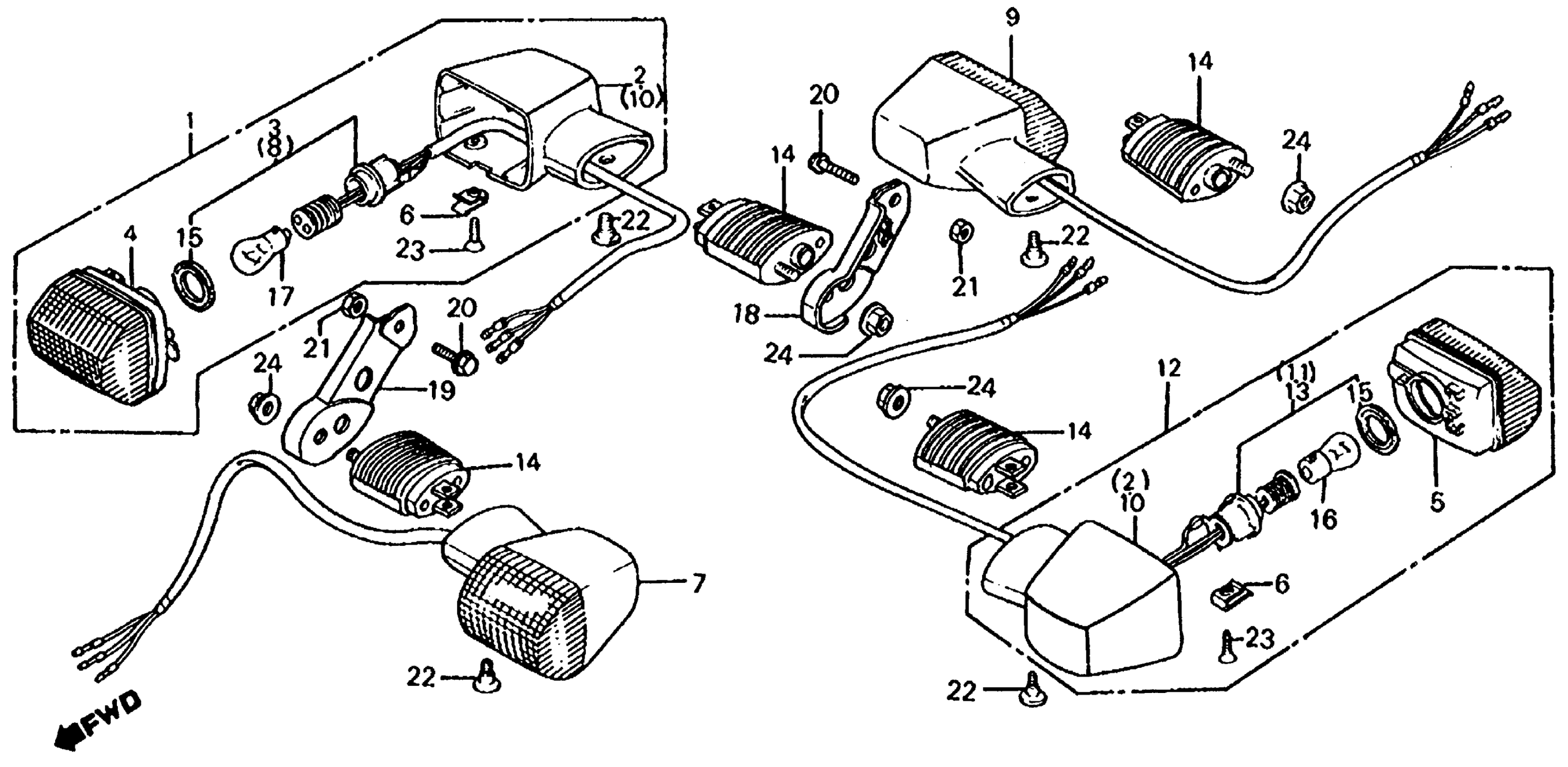

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. *NH1* (BLACK)

33400-MB6-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. *NH1* (BLACK) This part replaces 33400-MB6-671.

33400-MB6-406

Unavailable

2

BASE, R. TURN SIGNAL *NH1* (BLACK)

33401-MB6-003

Unavailable

3

SOCKET, TURN SIGNAL

33405-MB6-405

Unavailable

3

SOCKET, TURN SIGNAL This part replaces 33405-MB6-670.

33405-MB6-405

Unavailable

4

LENS, TURN SIGNAL

33406-MB2-003

Unavailable

5

LENS, TURN SIGNAL

33406-MB2-601

Unavailable

6

NUT, SPECIAL

33407-MB2-003

$3.81

7

TURN SIGNAL ASSY., R. FR.

33400-KM9-405

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33450-MB6-671.

33400-KM9-405

Unavailable

8

SOCKET, TURN SIGNAL

33405-MB6-405

Unavailable

8

SOCKET, TURN SIGNAL This part replaces 33455-MB6-670.

33405-MB6-405

Unavailable

9

TURN SIGNAL ASSY. This part replaces 33600-MB6-671.

33600-MN8-405

Unavailable

9

TURN SIGNAL ASSY.

33600-MN8-405

Unavailable

10

BASE, L. TURN SIGNAL *NH1* (BLACK)

33601-MB6-003

Unavailable

11

SOCKET, R. TURN SIGNAL

33605-MB2-405

Unavailable

11

WIRE, L. TURN SIGNAL This part replaces 33605-MB6-003.

33605-MB2-405

Unavailable

12

TURN SIGNAL ASSY., R. RR.

33600-MR7-405

Unavailable

12

TURN SIGNAL ASSY., R. RR. This part replaces 33650-MB6-671.

33600-MR7-405

Unavailable

13

SOCKET, L. TURN SIGNAL

33605-MB2-405

Unavailable

13

WIRE, L. TURN SIGNAL This part replaces 33655-MB6-003.

33605-MB2-405

Unavailable

14

STAY, TURN SIGNAL

33691-MB2-003

Unavailable

15

SEAL, GASKET

33707-MJ0-003

Unavailable

16

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

17

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

18

STAY, R. FR. TURN SIGNAL (NOT AVAILABLE)

61312-MJ4-670

Unavailable

19

STAY, L. FR. TURN SIGNAL (NOT AVAILABLE)

61313-MJ4-670

Unavailable

20

BOLT, FLANGE (6X12)

90002-MJ4-670

Unavailable

21

NUT, NYLON RING (6MM)

90220-MA5-700

$8.69

22

SCREW, SPECIAL (6X8)

90380-MB2-000

$3.38

23

SCREW-WASHER (4X12) This part replaces 93700-04012-0G.

93891-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93700-04012-1G.

93891-04012-07

$1.49

23

SCREW-WASHER (4X12)

93891-04012-07

$1.49

24

NUT, FLANGE (6MM)

94050-06080

$1.49
