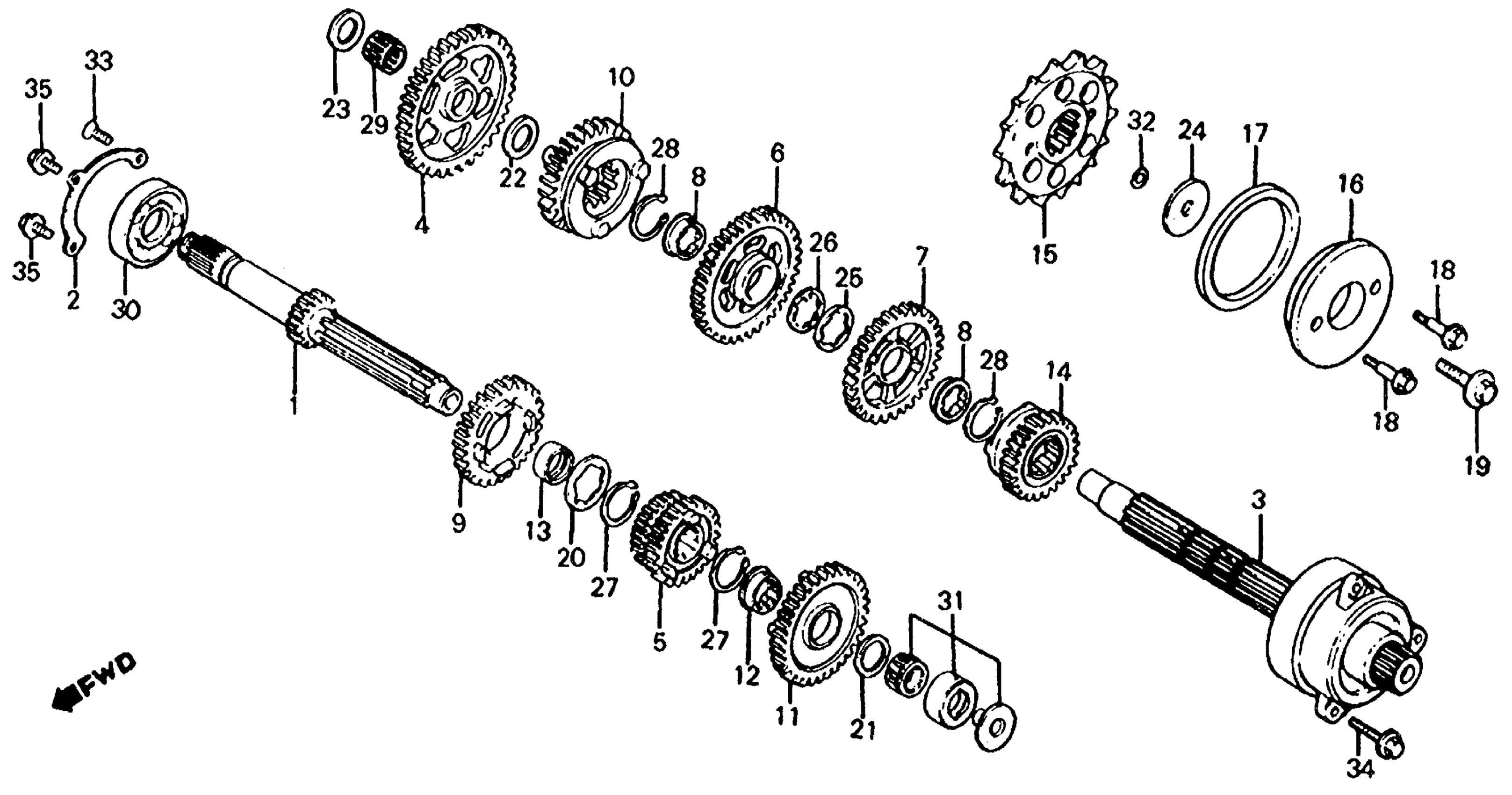

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23211-MB6-000

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE) This part replaces 23212-MB0-010.

23212-MB4-830

Unavailable

2

PLATE, BEARING SETTING

23212-MB4-830

Unavailable

3

COUNTERSHAFT

23220-MJ4-670

Unavailable

4

GEAR, COUNTERSHAFT LOW (41T)

23421-MB6-000

Unavailable

5

GEAR, MAINSHAFT SECOND & THIRD (17T,20T) (NOT AVAILABLE)

23431-MJ4-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)

23441-MJ4-670

Unavailable

7

GEAR, COUNTERSHAFT THIRD (30T) (NOT AVAILABLE)

23461-MJ4-670

Unavailable

8

COLLAR, SPLINE (30X15.5)

23462-MJ4-670

Unavailable

9

GEAR, MAINSHAFT FOURTH (25T)

23471-MJ4-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (31T) (NOT AVAILABLE)

23481-MJ4-670

Unavailable

11

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE)

23491-MB6-680

Unavailable

12

COLLAR, SPLINE (28X15.9)

23492-MB6-680

Unavailable

13

COLLAR (28X13.95)

23495-MB4-000

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (28T)

23501-MJ4-670

Unavailable

15

SPROCKET, DRIVE (17T) This part replaces 23801-MJ4-000.

23801-438-000

Unavailable

15

SPROCKET, DRIVE (17T)

23801-438-000

Unavailable

16

GUIDE, RING

23820-438-003

Unavailable

17

RING, DAMPER

23821-MB6-000

Unavailable

18

BOLT, FLANGE (6X20)

90020-438-000

$3.35

19

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

20

WASHER, THRUST (28MM)

90451-422-000

$8.36

21

WASHER, THRUST (22MM)

90453-MB6-010

Unavailable

22

WASHER, THRUST (22.5MM) (NOT AVAILABLE) This part replaces 90453-704-000.

90453-426-000

Unavailable

23

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

24

WASHER (10.2MM)

90459-438-000

$5.83

25

WASHER, THRUST (30MM)

90461-MJ4-670

Unavailable

26

WASHER, LOCK (30MM)

90462-MJ4-670

Unavailable

27

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

28

CIRCLIP (30MM)

90604-MG8-000

$3.43

29

BEARING, NEEDLE (22X26X13)

91001-MB6-680

$34.56

30

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91006-MB4-003.

91006-MT3-003

$21.55

30

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91006-MB4-004.

91006-MT3-003

$21.55

30

BEARING, RADIAL BALL (6206) (NTN CORP.)

91006-MT3-003

$21.55

31

BEARING, NEEDLE (22MM) (NOT AVAILABLE)

91023-MB6-004

Unavailable

32

O-RING (9.8X2.4)

91305-422-000

$2.47

33

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

34

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

34

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

35

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

35

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
