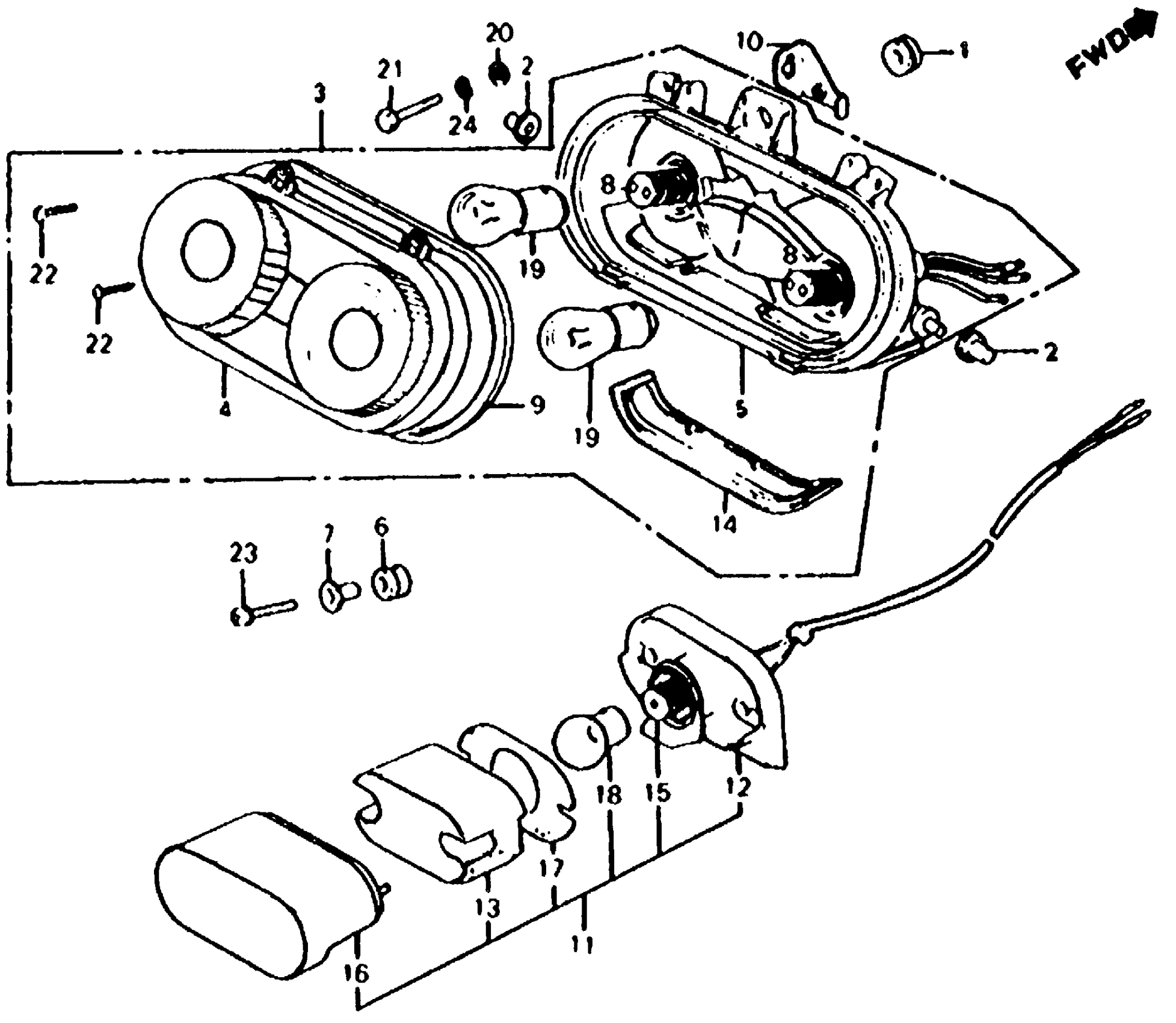

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 TAILLIGHT Diagram

RUBBER A, TAILLIGHT MOUNTING

33704-MJ4-700

Unavailable

UNIT TAILLIGHT This part replaces 33701-MJ4-871.

33701-MJ4-406

Unavailable

LENS, TAILLIGHT

33702-MJ4-671

Unavailable

BASE, TAILLIGHT

33703-MJ4-406

Unavailable

BASE, TAILLIGHT This part replaces 33703-MJ4-870.

33703-MJ4-406

Unavailable

RUBBER B, TAILLIGHT MOUNTING

33705-MJ4-700

Unavailable

COLLAR, TAILLIGHT SETTING

33706-MJ4-700

Unavailable

WIRE

33708-MJ4-601

Unavailable

GASKET, LENS

33709-MJ4-601

Unavailable

STAY, TAILLIGHT WIRE

33711-MJ4-700

Unavailable

LIGHT ASSY., LICENSE (12V 8W) This part replaces 33720-MJ4-670.

33720-ML7-670

Unavailable

LIGHT ASSY., LICENSE (12V 8W)

33720-ML7-670

Unavailable

BASE

33721-MB2-003

Unavailable

LENS, LICENSE

33722-MB1-013

$19.68

LENS, LICENSE

33722-MJ4-671

Unavailable

WIRE, LICENSE

33725-MJ4-670

Unavailable

COVER, LICENSE LIGHT

33727-ME4-671

$27.26

GASKET, LENS

33729-MB1-003

$6.30

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

BOLT, HEX. (5X10) This part replaces 92000-05010-0A.

92101-05010-0A

$1.49

BOLT, HEX. (5X10)

92101-05010-0A

$1.49

SCREW, TAPPING (4X14)

90101-GW6-000

Unavailable

SCREW, TAPPING (4X14) This part replaces 90901-MJ4-601.

90101-GW6-000

Unavailable

SCREW-WASHER (4X18)

93892-04020-00

Unavailable

WASHER, SPRING (5MM)

94111-05000

$1.49
