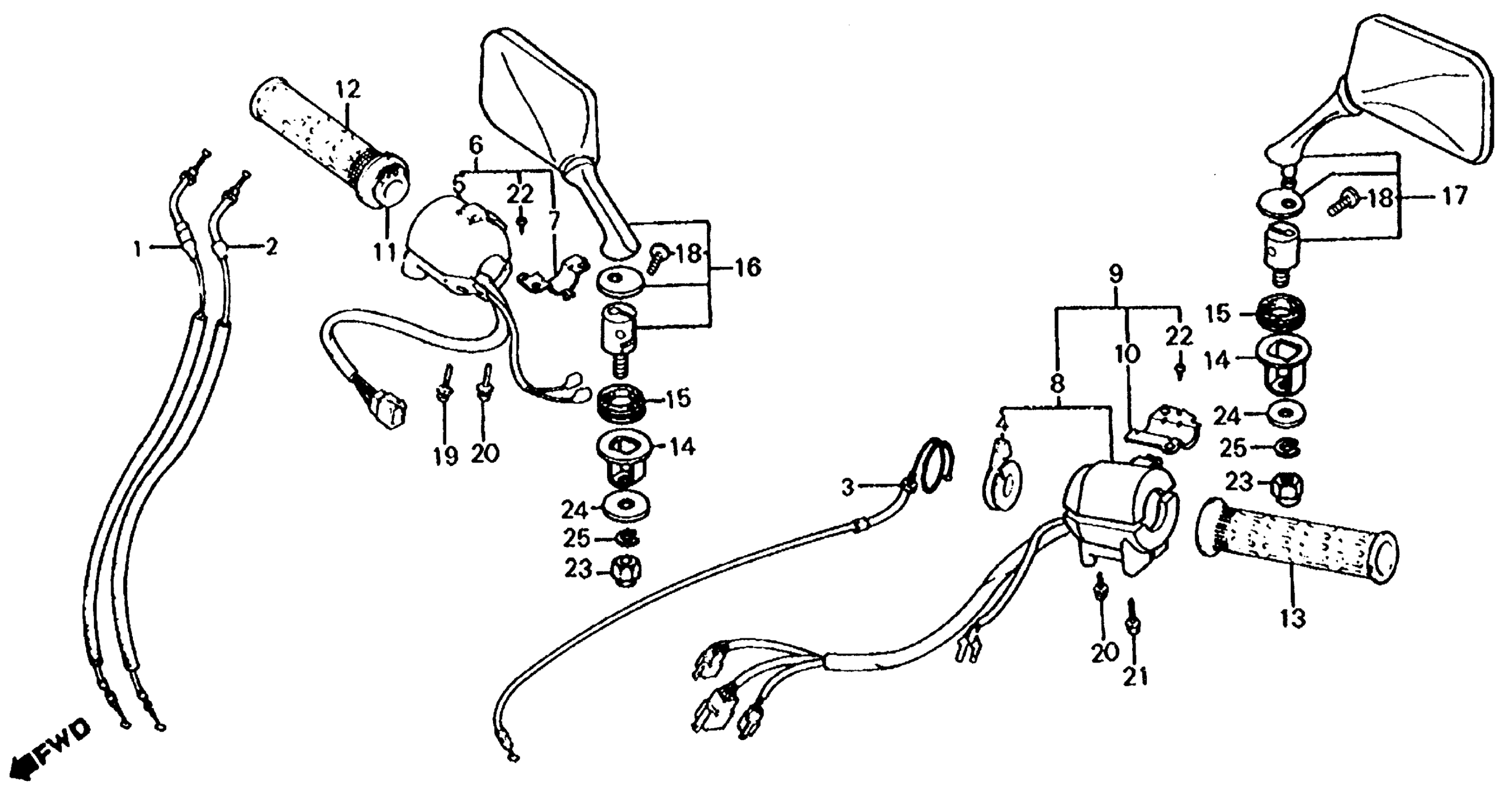

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 SWITCHES + CABLES + MIRRORS Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MJ4-000

Unavailable

2

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MJ4-000

Unavailable

3

CABLE, CHOKE (NOT AVAILABLE)

17950-MJ4-000

Unavailable

4

LEVER, CHOKE This part replaces 17962-KE8-700.

17962-KE8-701

Unavailable

4

LEVER, CHOKE

17962-KE8-701

Unavailable

6

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE) This part replaces 35130-MJ4-671.

35130-MJ4-672

Unavailable

6

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE)

35130-MJ4-672

Unavailable

7

PLATE, STOP SWITCH SETTING This part replaces 35152-KE8-702.

35152-KE8-703

$7.61

7

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.61

9

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MJ4-671

Unavailable

10

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.79

11

PIPE, THROTTLE GRIP

53141-422-000

$21.74

12

GRIP, R. HANDLE

53165-422-000

$15.95

13

GRIP, L. HANDLE (COO) This part replaces 53166-422-000.

53166-422-305

$13.19

14

STAY, MIRROR MOUNTING

64211-MJ4-000

Unavailable

15

RUBBER, MIRROR MOUNTING

64212-MA3-770

Unavailable

16

MIRROR, R. (NOT AVAILABLE)

88110-MJ4-003

Unavailable

17

MIRROR, L.

88120-MJ4-003

Unavailable

18

SCREW, PAN (6X14)

93500-06014-0G

$1.49

19

SCREW-WASHER (5X20)

93892-05020-07

$1.49

20

SCREW-WASHER (5X28)

93892-05028-07

$1.49

21

SCREW-WASHER (5X45)

93892-05045-07

$1.49

22

SCREW, TAPPING (3X8)

93901-32120

$1.49

23

NUT, CAP (10MM)

94021-10270-0S

Unavailable

24

WASHER, PLAIN (10MM)

94101-10700

$1.49

25

WASHER, SPRING (10MM)

94111-10700

Unavailable
