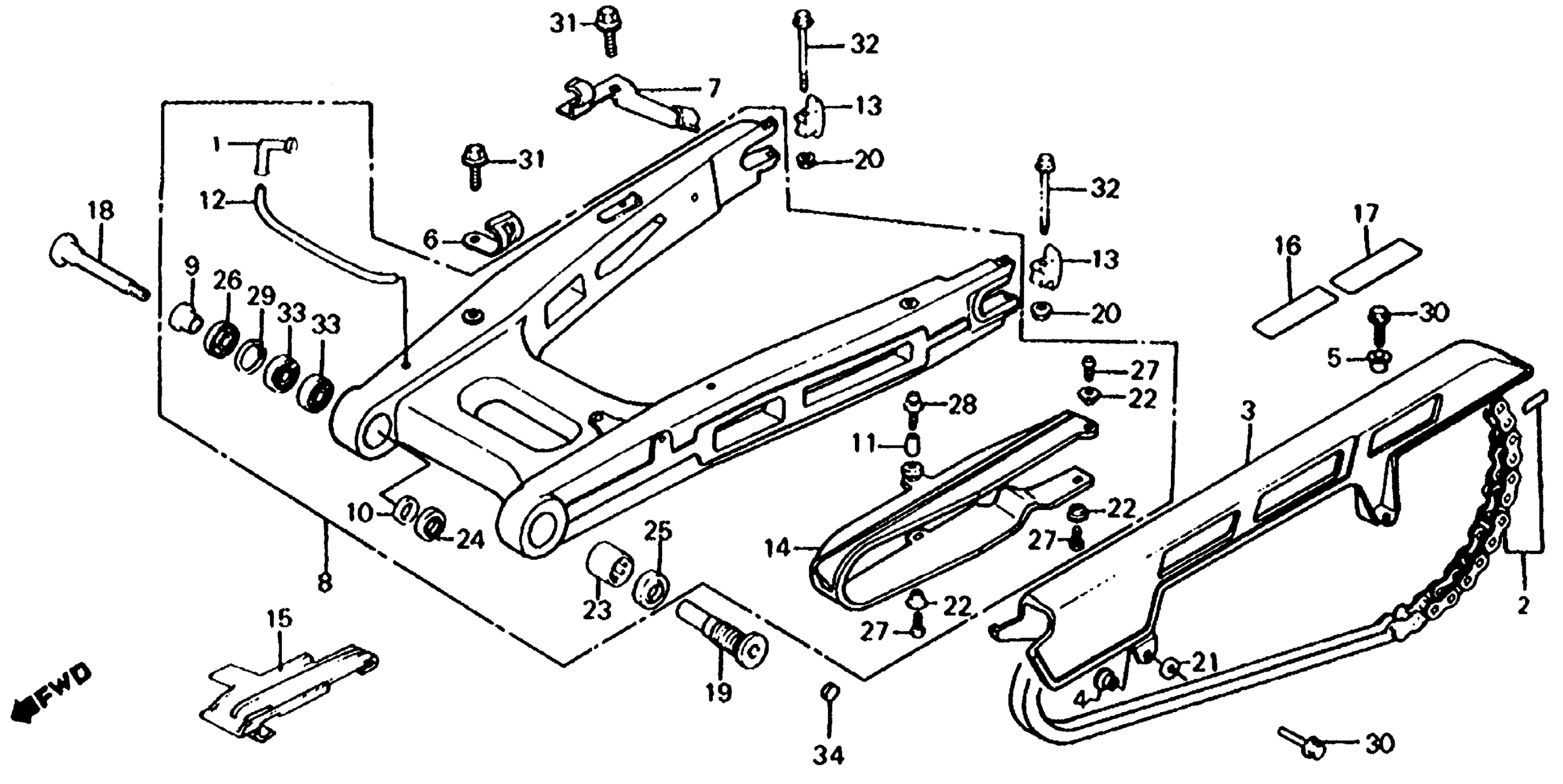

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 SWINGARM + DRIVE CHAIN CASE Diagram

#

Description
Price

1

JOINT, TUBE

19103-463-000

Unavailable

2

CHAIN SET, DRIVE (50LO-110LE) (NOT AVAILABLE)

405A3-MB6-005

Unavailable

2

CHAIN SET, DRIVE (50ZL-110LE) (DAIDO)

405A3-MJ4-672

Unavailable

3

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-MJ4-000

Unavailable

4

COLLAR, CHAIN CASE

40512-MB2-000

Unavailable

5

COLLAR, CHAIN CASE

40514-310-000

$6.26

6

CLAMP A, RR. BRAKE HOSE

43437-MJ4-670

Unavailable

7

CLAMP B, RR. BRAKE HOSE

43438-MJ4-000

Unavailable

8

SWINGARM ASSY., RR.

52100-MJ4-000

Unavailable

9

COLLAR, SWINGARM PIVOT (NOT AVAILABLE)

52102-MA6-000

Unavailable

10

COLLAR, SWINGARM PIVOT (B)

52102-MB2-000

Unavailable

11

COLLAR, CHAIN SLIDER (NOT AVAILABLE)

52105-MJ4-000

Unavailable

12

HOSE, DRAIN

52106-MB2-000

Unavailable

13

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-MJ4-000

Unavailable

14

SLIDER, CHAIN (NOT AVAILABLE)

52170-MJ4-000

Unavailable

15

SLIDER B, CHAIN (NOT AVAILABLE)

52171-MJ4-000

Unavailable

16

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-MJ4-670

Unavailable

17

LABEL, DRIVE CHAIN CAUTION

87507-MB6-630

Unavailable

18

BOLT, R. SWINGARM PIVOT

90121-MB2-000

Unavailable

19

BOLT, L. SWINGARM PIVOT

90122-MB2-000

Unavailable

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

20

NUT, FLANGE (8MM)

90309-428-731

$3.35

21

WASHER (6MM)

90485-MB2-000

$1.91

22

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

23

BEARING, SWINGARM PIVOT (NOT AVAILABLE)

91071-MB2-701

Unavailable

24

OIL SEAL (24X34X5.5) (NOT AVAILABLE)

91203-148-003

Unavailable

25

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

25

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

26

DUST SEAL (24X40X5.5) (NOT AVAILABLE)

91214-MA6-003

Unavailable

26

DUST SEAL (24X40X5.5) (NOT AVAILABLE) This part replaces 91214-MA6-006.

91214-MA6-003

Unavailable

27

SCREW, PAN (5X12)

93500-05012-0H

$1.49

28

SCREW-WASHER (5X25) This part replaces 93894-05025-17.

93894-05025-07

$1.49

29

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

30

BOLT, FLANGE (6X18) This part replaces 95700-06018-07.

95701-06018-07

$1.55

30

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-10.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95800-06010.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95900-06010-00.

95701-06010-00

$1.49

32

BOLT, FLANGE (8X65) This part replaces 95700-08065-00.

95701-08065-00

$1.72

32

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

32

BOLT, FLANGE (8X65) This part replaces 95900-08065-00.

95701-08065-00

$1.72

33

BEARING, RADIAL BALL (6203)

96100-62030-10

Unavailable
