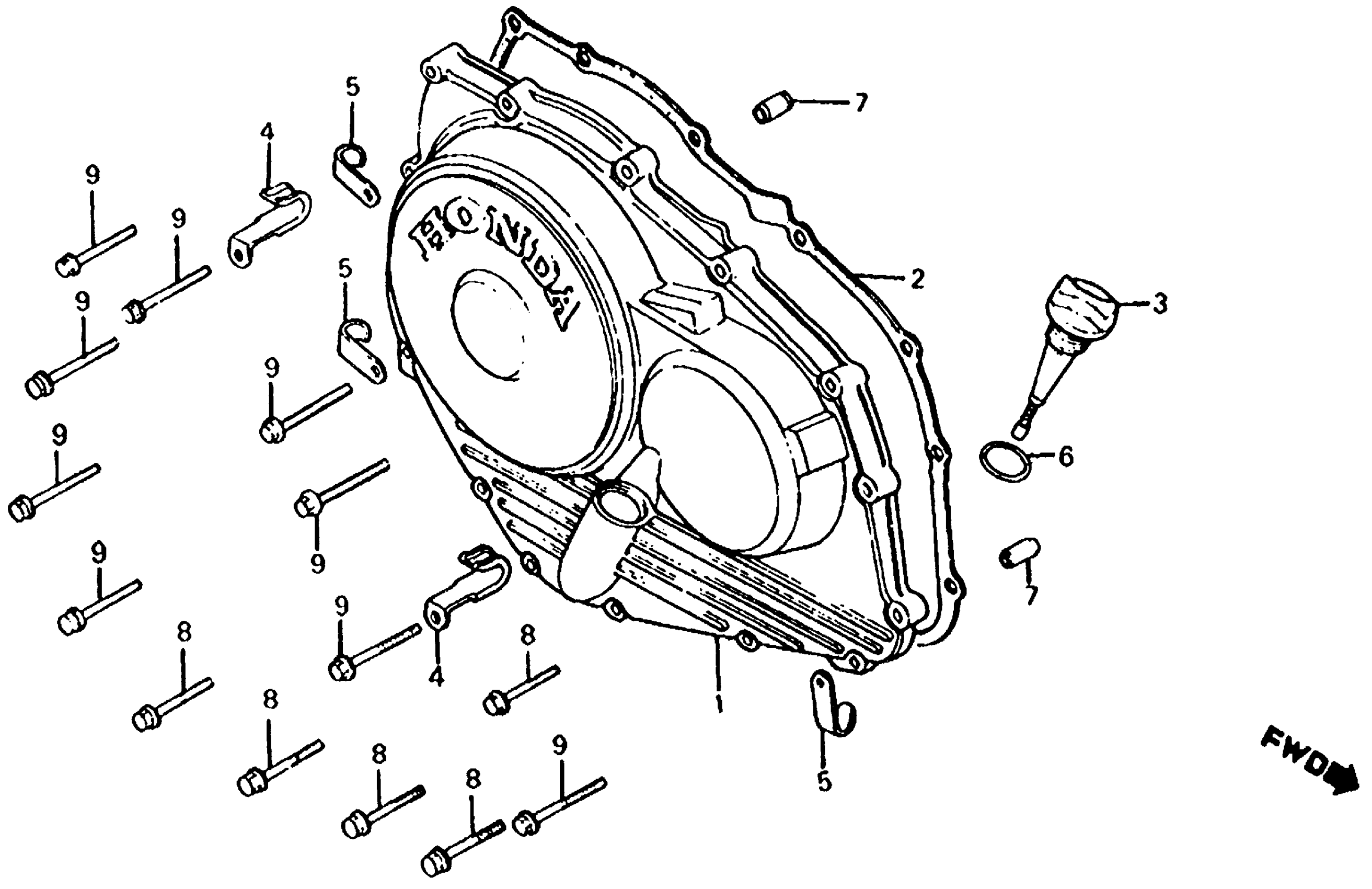

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

COVER ASSY., R. (NOT AVAILABLE)

11330-MB6-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-MB0-000.

11394-MB0-306

$43.97

2

GASKET, R. CRANKCASE COVER

11394-MB0-306

$43.97

3

DIPSTICK, OIL This part replaces 15650-MB2-000.

15650-MR1-000

$24.92

3

DIPSTICK, OIL

15650-MR1-000

$24.92

4

CLAMP, PULSER WIRE

30301-MB0-000

Unavailable

5

CLAMP, SWITCH WIRE

35211-443-760

$4.13

6

O-RING (22X3.0)

91307-425-003

$2.59

7

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

8

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

8

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

9

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

9

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
