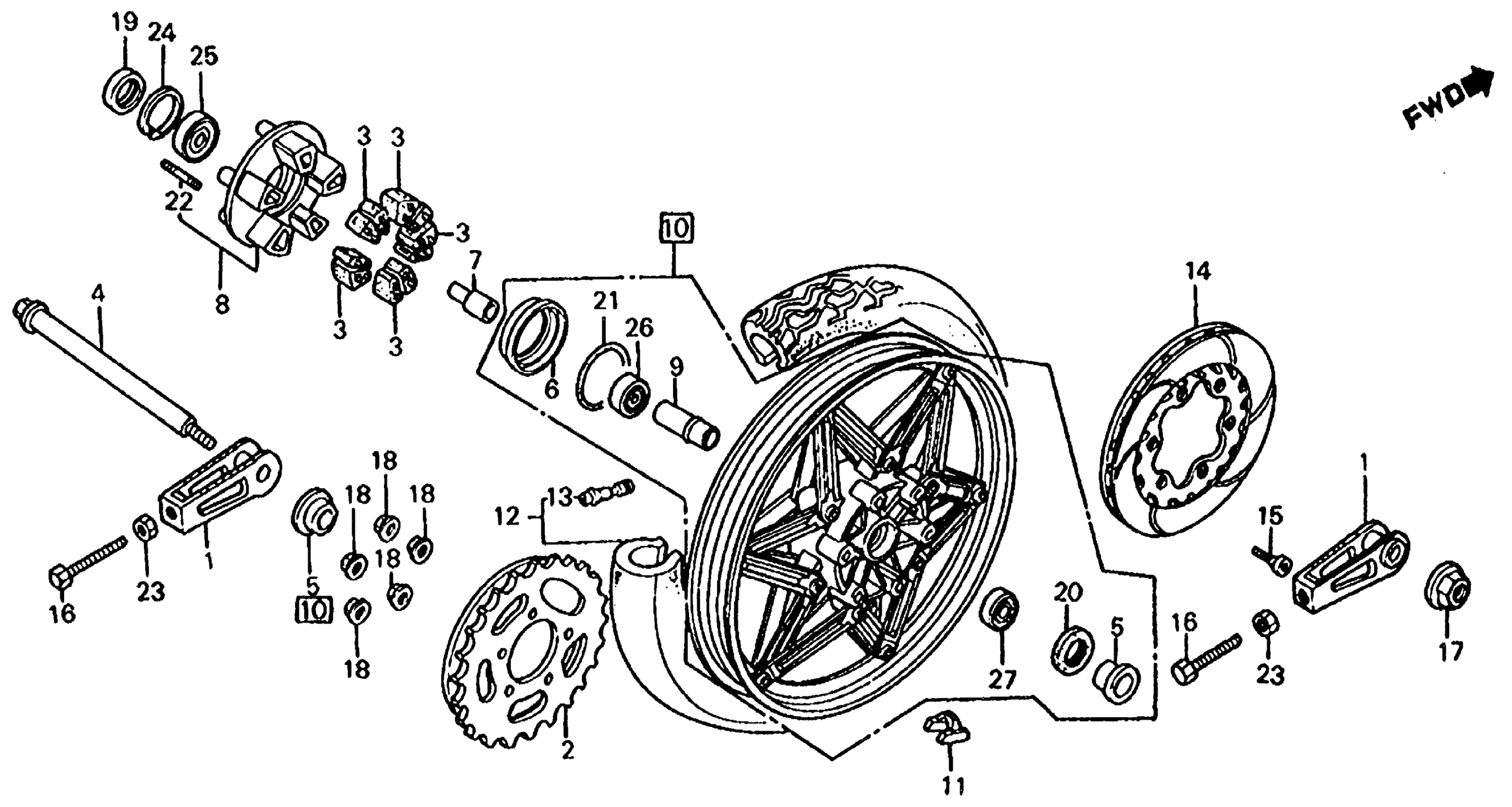

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-MJ4-000

Unavailable

2

SPROCKET, FINAL DRIVEN (44T)

41200-438-000

Unavailable

3

DAMPER, RR. WHEEL

41241-422-000

Unavailable

4

AXLE, RR. WHEEL

42301-MJ4-000

Unavailable

5

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-MJ4-000

Unavailable

6

SLEEVE, RR. WHEEL HUB

42604-438-710

Unavailable

7

SLEEVE, RR. AXLE

42605-MJ4-000

Unavailable

8

FLANGE, FINAL DRIVEN

42610-MB2-670

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-MJ4-000

Unavailable

10

WHEEL, RR.

42650-MJ4-670

Unavailable

11

WEIGHT, BALANCE (10G)

42704-MJ0-000

Unavailable

11

WEIGHT, BALANCE (20G)

42705-MJ0-000

Unavailable

11

WEIGHT, BALANCE (30G)

42706-MJ0-000

Unavailable

12

TIRE ASSY., RR. (140/80V17) (V250 K500) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB6-611.

42710-MB6-612

Unavailable

12

TIRE ASSY., RR. (140/80V17) (V250 K500) (DUNLOP) (NOT AVAILABLE)

42710-MB6-612

Unavailable

13

VALVE, RIM (BS)

42753-425-003

$11.00

13

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

14

DISK, RR. BRAKE

43350-MJ4-000

Unavailable

15

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

16

BOLT, CHAIN ADJUSTING

90119-438-000

Unavailable

17

NUT, FLANGE (18MM)

90305-MB4-003

$12.52

18

NUT, FLANGE (12MM)

90309-375-003

$8.61

19

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

20

DUST SEAL (34X52X7)

91253-MJ4-003

Unavailable

21

O-RING (66X3.6)

91258-438-711

Unavailable

22

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

23

NUT, HEX. (10MM)

94001-10000-0S

$1.49

24

CIRCLIP (INNER) (62MM)

94520-62000

$2.13

25

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

26

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$18.44

27

BEARING, RADIAL BALL (6205UU)

96150-62050-10

$29.85
