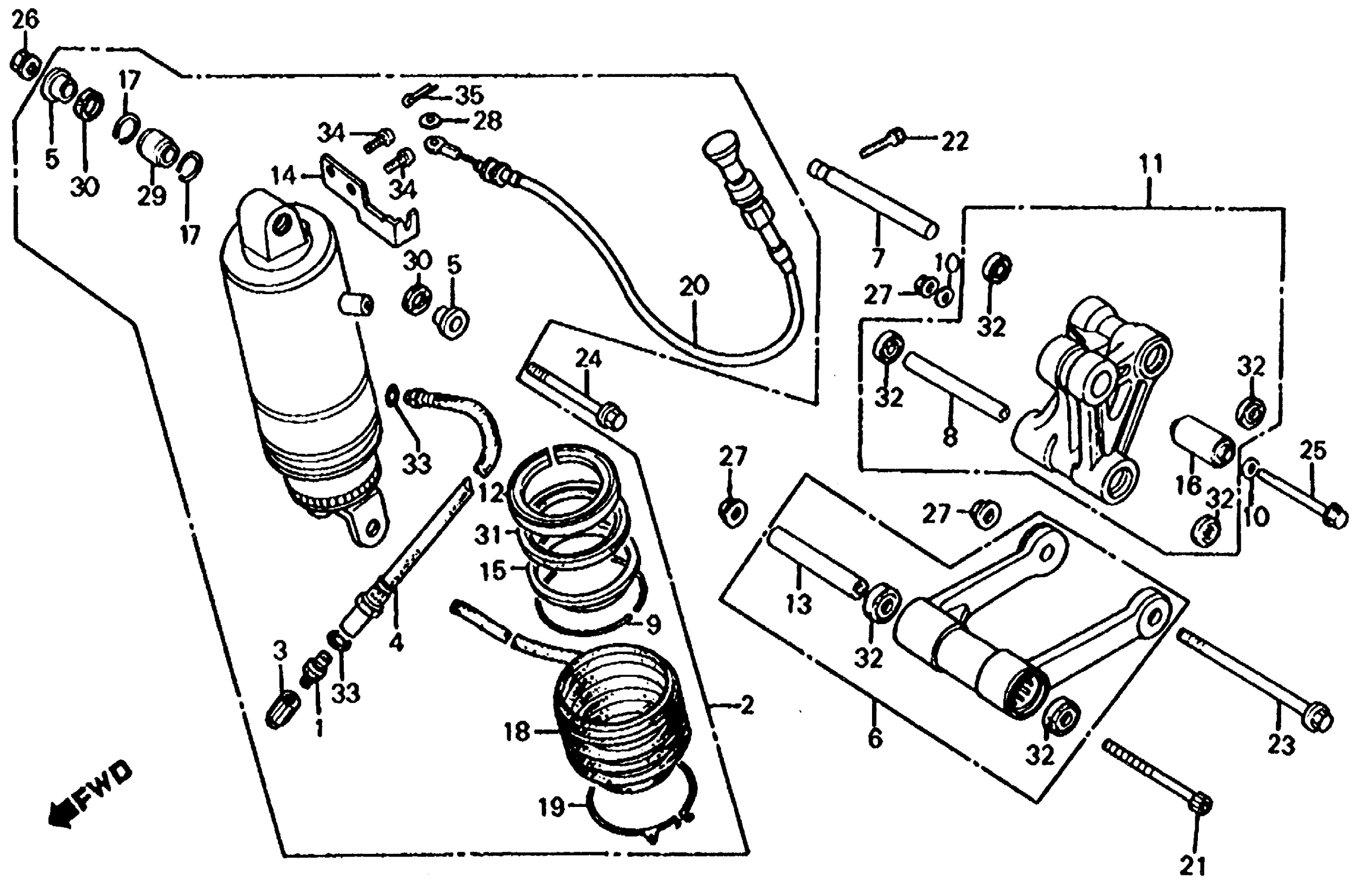

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

VALVE, AIR (SHOWA)

51456-469-013

$33.69

2

CUSHION ASSY,REAR This part replaces 52400-MJ4-671.

52400-MB6-405

Unavailable

3

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

4

HOSE, RR. SHOCK ABSORBER

52432-MJ4-671

Unavailable

5

COLLAR, BUSH (NOT AVAILABLE)

52453-MB6-631

Unavailable

6

ROD ASSY., SHOCK CONNECTING

52460-MB6-000

Unavailable

7

SHAFT, CUSHION ARM (UPPER)

52462-MB2-700

Unavailable

8

COLLAR, CONNECTING ROD (LOWER)

52463-MB6-000

Unavailable

9

RING B, STOPPER

52463-MC7-013

Unavailable

10

WASHER, THRUST

52466-MB2-000

Unavailable

11

ARM ASSY., SHOCK ABSORBER

52470-MB6-000

Unavailable

12

CASE, GUIDE

52472-MC7-003

Unavailable

13

COLLAR, CONNECTING ROD

52475-MJ0-000

Unavailable

14

HOLDER, ADJUSTING

52476-MJ0-003

Unavailable

15

RING, BACK-UP

52477-MC7-013

Unavailable

16

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52485-MA2-003

Unavailable

17

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

18

BOOT, RR. SHOCK (NOT AVAILABLE)

52611-MB2-003

Unavailable

19

BAND, BOOT

52612-MA2-003

$5.98

20

CABLE, CONTROL (NOT AVAILABLE)

52650-MJ4-671

Unavailable

21

BOLT, SOCKET (10X115)

90105-MB6-000

Unavailable

22

BOLT, SOCKET (8X32)

90116-KE7-000

Unavailable

23

BOLT, FLANGE (10X100)

90108-MR8-000

Unavailable

23

BOLT, FLANGE (10X100) This part replaces 90153-MA1-000.

90108-MR8-000

Unavailable

24

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

25

BOLT D, FLANGE (NOT AVAILABLE)

90189-MA2-003

Unavailable

26

NUT, AXLE (10MM)

90304-GA6-003

$2.89

27

NUT, U (10MM)

90304-GE8-003

$3.67

28

WASHER, PLAIN

90550-MJ0-003

Unavailable

29

BEARING, SPHERICAL (14MM) This part replaces 91077-KA4-831.

91077-KN5-004

$22.62

29

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

30

DUST SEAL

91254-MB6-631

Unavailable

31

OIL SEAL (65X80X10.5)

91257-MC7-003

Unavailable

32

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

33

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

33

O-RING (5.8X1.9)

91305-323-000

$2.92

33

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

34

SCREW, PAN (4X8)

93500-04008-0G

$1.49

34

SCREW, PAN (4X8) This part replaces 93500-04008-1G.

93500-04008-0G

$1.49

35

PIN, COTTER (1.6)

94201-16080

$1.49
