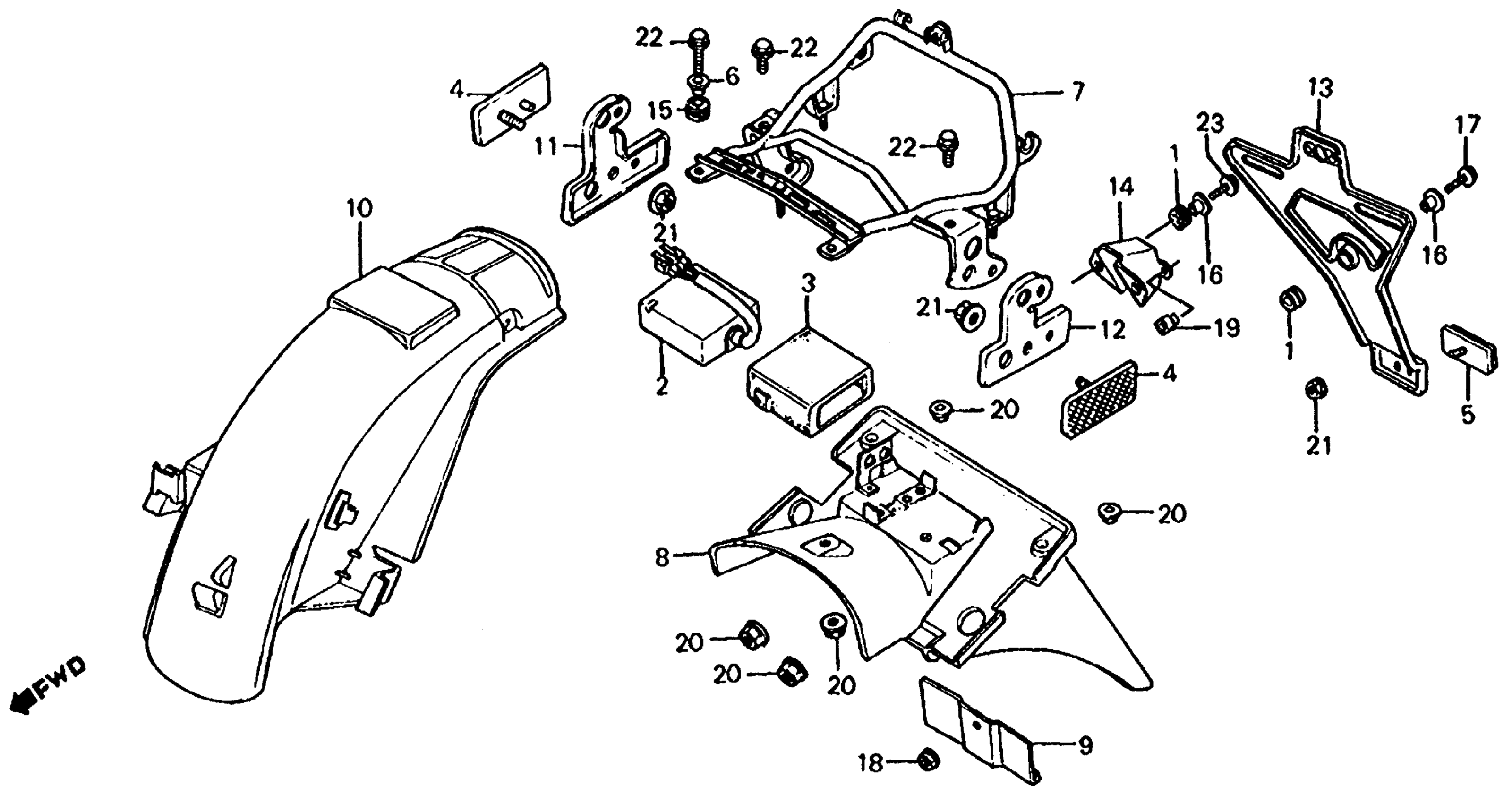

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 REAR FENDER + SPARK UNIT Diagram

#

Description
Price

2

MODULE, IGN CONT This part replaces 30400-MJ4-671.

30400-MB6-631

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30400-MB4-005

Unavailable

3

RUBBER, SPARK UNIT

30411-MJ4-670

Unavailable

4

REFLECTOR, REFLEX

33741-MC7-612

$14.43

5

REFLECTOR, RR. REFLEX

33742-MB2-672

$22.05

6

COLLAR, SETTING

61104-422-000

$6.91

7

STAY, SEAT COWL

77310-MJ4-700

Unavailable

8

FENDER A, RR. (NOT AVAILABLE)

80100-MJ4-670

Unavailable

9

PATCH, RR. FENDER

80101-MJ4-670

Unavailable

10

FENDER B, RR.

80105-MB2-010

Unavailable

10

FENDER B, RR. (NOT AVAILABLE) This part replaces 80105-MJ4-000.

80105-MB2-010

Unavailable

11

BASE, R. RR. REFLEX REFLECTOR (NOT AVAILABLE)

84111-MJ4-760

Unavailable

12

BASE, L. RR. REFLEX REFLECTOR (NOT AVAILABLE)

84121-MJ4-760

Unavailable

13

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-MJ4-670

Unavailable

14

BRACKET, LICENSE LIGHT

84703-MJ4-670

Unavailable

15

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

16

COLLAR (6.2X14)

84706-MJ4-670

Unavailable

17

SCREW (6X25)

90114-GB4-810

Unavailable

18

NUT, NYLON RING (6MM)

90220-MA5-700

$8.69

19

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

20

NUT, FLANGE (6MM)

90302-187-000

$2.39

21

NUT, FLANGE (5MM)

94050-05080

$1.49

22

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

23

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

23

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
