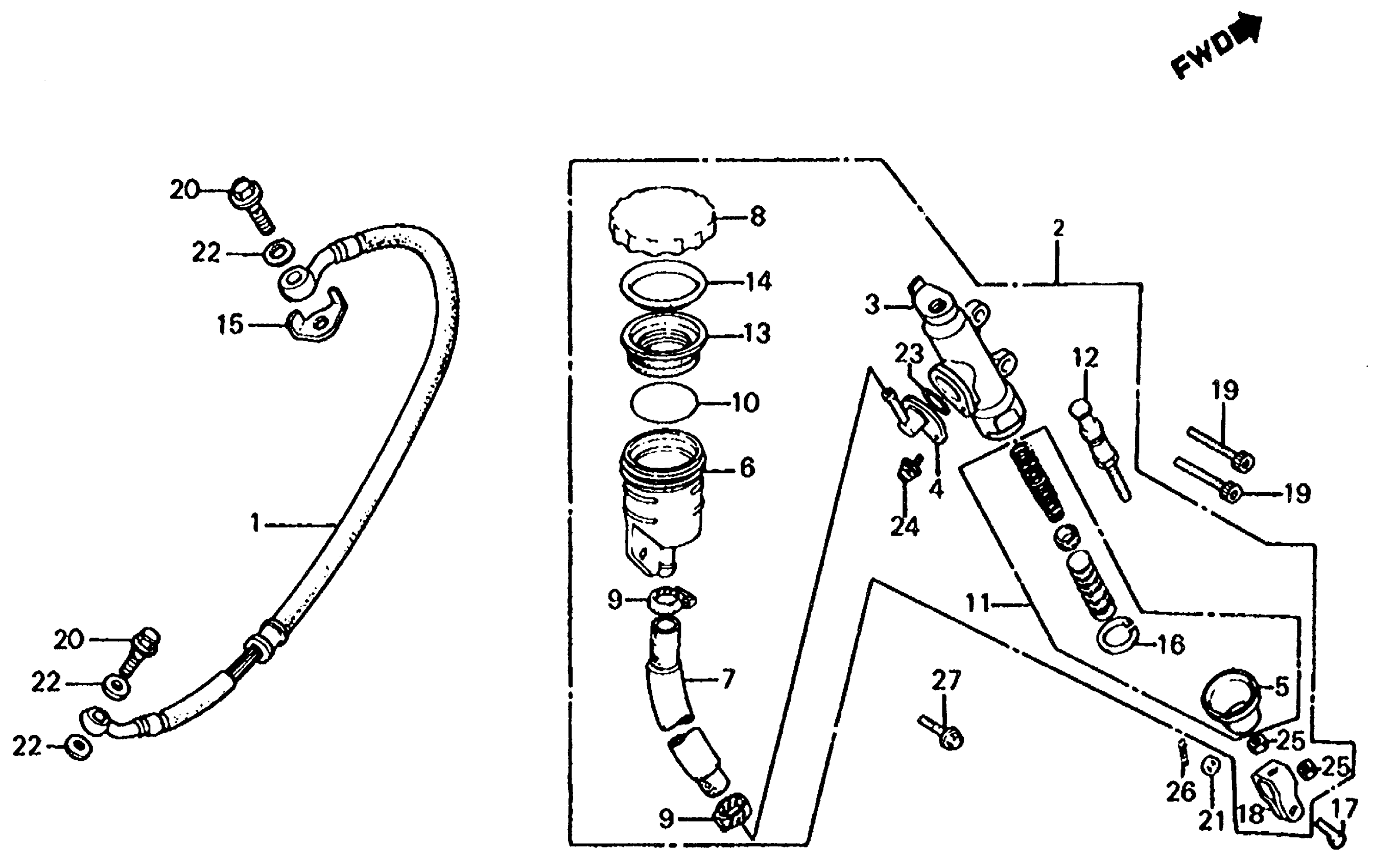

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 REAR BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MJ4-670

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE

43500-MJ4-006

Unavailable

3

BODY, RR. MASTER CYLINDER

43501-MJ6-006

Unavailable

4

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$11.10

5

BOOT

43504-MB2-006

$9.24

6

CUP, MASTER CYLINDER OIL

43511-443-761

Unavailable

7

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-MC7-612

Unavailable

8

CAP, OIL CUP

43513-MB4-672

Unavailable

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.90

10

FLOAT, RR. MASTER CYLINDER

43515-MJ4-006

Unavailable

11

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$41.66

12

ROD, PUSH

43530-MB2-006

$32.09

13

DIAPHRAGM

45520-300-000

$8.34

14

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

15

STOPPER, OIL BOLT

45535-MJ4-000

Unavailable

16

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.76

17

PIN, BRAKE ROD

46503-MB6-000

Unavailable

18

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

19

BOLT, SOCKET (6X22)

90115-MB2-000

Unavailable

20

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

20

BOLT, OIL (10X22)

90145-KM3-751

$10.11

21

WASHER (7X12)

90501-310-000

$1.48

22

WASHER, OIL BOLT

90545-300-000

$5.79

23

O-RING (14.8X2.4)

91212-422-006

$2.37

24

SCREW-WASHER (4X12)

93893-04012-08

$1.32

24

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.32

25

NUT, HEX. (8MM)

94002-08000-0S

$1.31

26

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

26

PIN, COTTER (1.6X25)

94201-16250

$1.01

27

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$0.93

27

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
