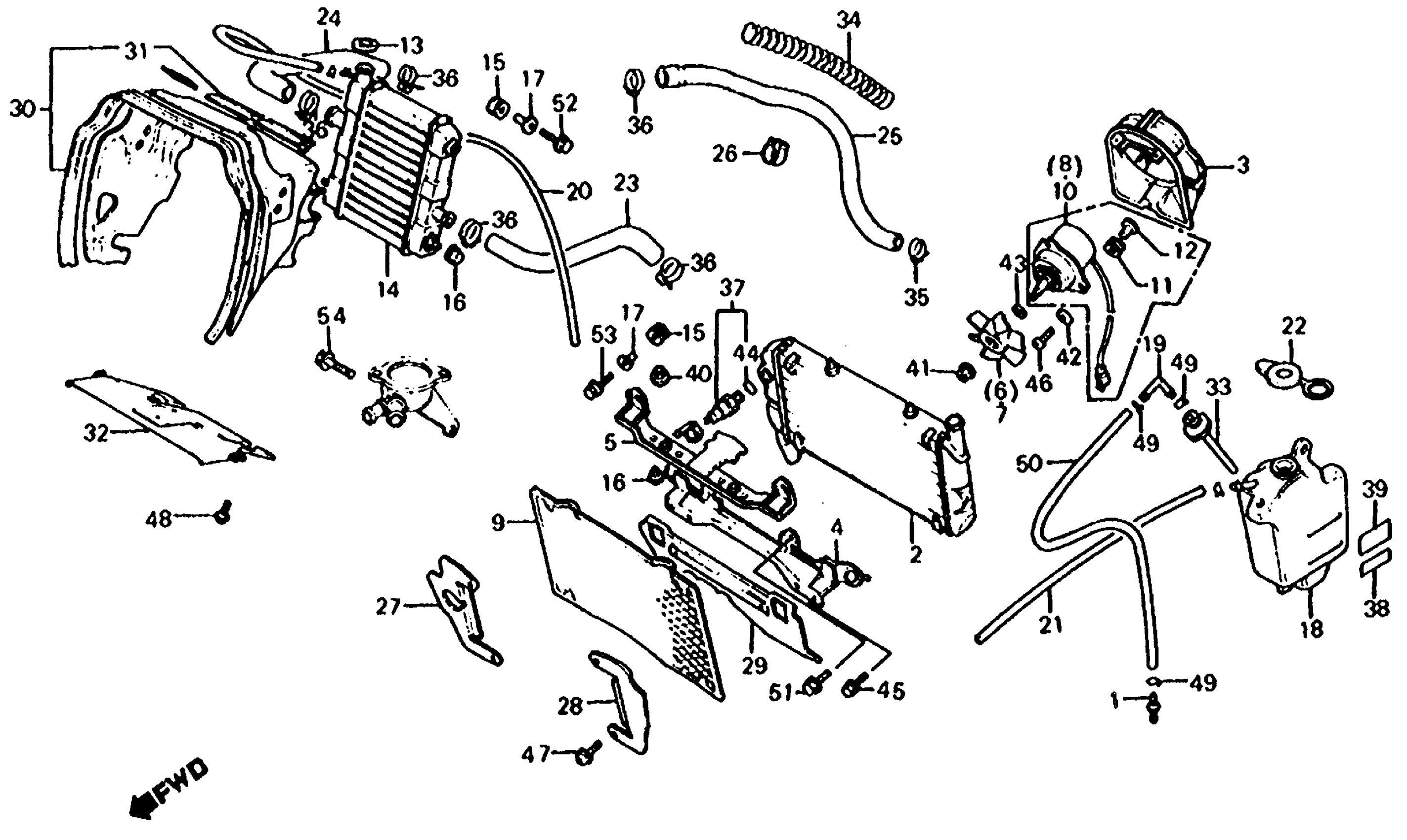

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 RADIATOR Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.95

2

RADIATOR, MAIN

19010-MJ4-670

Unavailable

3

SHROUD

19015-MJ4-671

Unavailable

4

STAY, RADIATOR (LOWER)

19017-MJ4-670

Unavailable

5

STAY, RADIATOR (UPPER)

19018-MJ4-670

Unavailable

6

FAN, R. COOLING

19024-MB6-631

Unavailable

7

FAN, L. COOLING

19025-MB6-631

Unavailable

8

MOTOR ASSY., R. FAN

19030-MJ4-405

Unavailable

8

MOTOR ASSY., R. FAN This part replaces 19030-MJ4-671.

19030-MJ4-405

Unavailable

9

GRILLE, RADIATOR

19032-MJ4-670

Unavailable

10

MOTOR ASSY., L. FAN

19035-MJ4-405

Unavailable

10

MOTOR ASSY., L. FAN This part replaces 19035-MJ4-671.

19035-MJ4-405

Unavailable

11

GROMMET

19031-HA7-671

$4.04

11

GROMMET This part replaces 19041-MB6-003.

19031-HA7-671

$4.04

12

COLLAR This part replaces 19044-MB6-003.

19032-HA7-671

$3.48

13

CAP, RADIATOR This part replaces 19045-MB6-631.

19045-MY3-621

$40.44

13

CAP, RADIATOR

19045-MY3-621

$40.44

14

SUB-RADIATOR ASSY.

19050-MJ4-670

Unavailable

15

RUBBER, RADIATOR SETTING

19051-KA4-000

$3.80

16

RUBBER, RADIATOR SETTING

19051-MB2-000

$4.53

17

COLLAR, RADIATOR SETTING

19052-MB0-000

$6.34

18

TANK, RESERVE (NOT AVAILABLE)

19101-MJ4-670

Unavailable

19

JOINT, TUBE

19103-MJ4-670

Unavailable

20

TUBE, FR. OVERFLOW

19107-MJ4-000

Unavailable

21

TUBE, OVERFLOW (7.3X700) (NOT AVAILABLE)

19108-MJ4-670

Unavailable

22

CAP, RESERVE TANK

19109-KPC-640

$4.80

22

CAP, RESERVE TANK This part replaces 19109-MJ4-305.

19109-KPC-640

$4.80

23

HOSE A, RADIATOR (NOT AVAILABLE)

19115-MJ4-670

Unavailable

24

HOSE B, RADIATOR (NOT AVAILABLE)

19116-MJ4-670

Unavailable

25

HOSE C, RADIATOR (NOT AVAILABLE)

19120-MJ4-670

Unavailable

26

CLAMP, HOSE (C)

19121-MJ4-670

Unavailable

27

PLATE, R. MAIN RADIATOR SIDE

19130-MJ4-670

Unavailable

28

PLATE, L. MAIN RADIATOR SIDE

19131-MJ4-670

Unavailable

29

GUARD, WIND (LOWER)

19132-MJ4-670

Unavailable

30

SHROUD, FR. RADIATOR (NOT AVAILABLE)

19140-MJ4-670

Unavailable

31

RUBBER, FR. SHROUD

19141-MJ4-000

Unavailable

32

PLATE, RADIATOR (LOWER)

19201-MJ4-000

Unavailable

33

TUBE, LEVEL This part replaces 19205-MF5-000.

19205-MF5-010

Unavailable

33

TUBE, LEVEL

19205-MF5-010

Unavailable

34

CABLE A, GUARD

19511-MJ4-670

Unavailable

35

CLAMP, WATER HOSE

19515-MJ4-670

$17.15

36

CLAMP, WATER HOSE

19516-MB6-000

$14.41

37

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

37

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

38

LABEL, RESERVE TANK

87507-MB4-670

Unavailable

39

LABEL, RADIATOR CAUTION

87508-MJ4-670

Unavailable

40

NUT-WASHER (6MM)

90311-GC3-000

Unavailable

41

NUT, SPECIAL (5MM) (MITSUBA)

90311-MB6-003

$4.70

42

WASHER, SPECIAL

90501-MB6-003

Unavailable

43

WASHER, PLAIN (7MM)

90511-MB6-003

Unavailable

44

O-RING (13.5X1.4)

91307-PH7-660

$2.83

44

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

45

BOLT-WASHER (6X10)

93493-06010-07

Unavailable

46

SCREW, PAN (4X20)

93500-04020-0H

$1.49

47

SCREW-WASHER (4X16)

93891-04016-08

$1.49

48

SCREW-WASHER (5X10)

93893-05010-07

$1.49

49

CLIP, TUBE (C12)

95002-80000

$1.49

50

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

51

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

51

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

52

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

52

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

53

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

53

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

54

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

54

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
