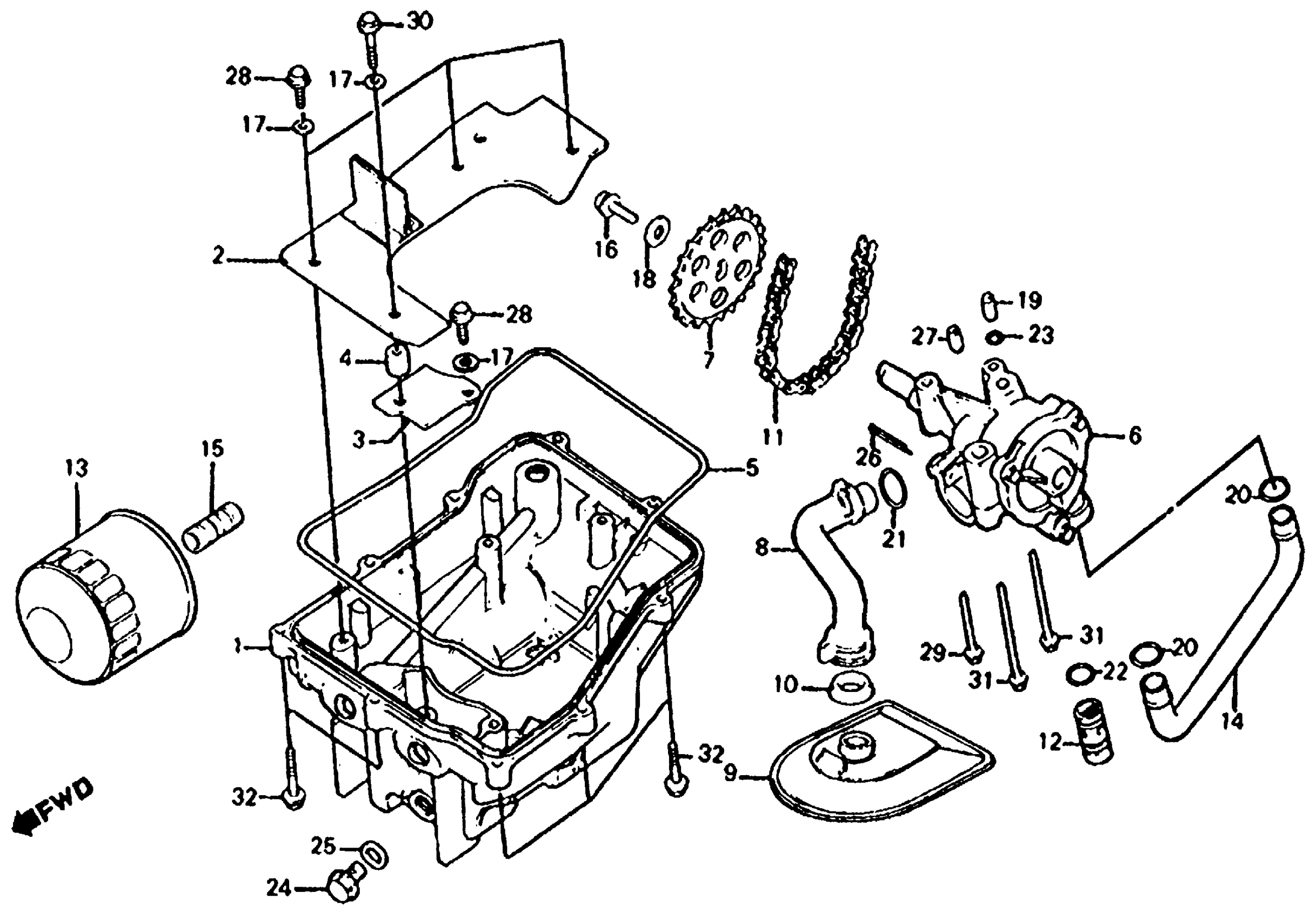

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 OIL PUMP + OIL PAN + OIL FILTER Diagram

#

Description
Price

1

PAN, OIL

11210-MB6-P00

Unavailable

1

PAN, OIL This part replaces 11210-MB6-680.

11210-MB6-P00

Unavailable

1

PAN, OIL This part replaces 11210-MB6-681.

11210-MB6-P00

Unavailable

2

PLATE, BAFFLE (UPPER)

11211-MB6-830

Unavailable

3

PLATE, BAFFLE (LOWER)

11212-MB6-830

Unavailable

4

COLLAR, BAFFLE PLATE

11213-MB6-830

Unavailable

5

GASKET, OIL PAN

11315-MB0-010

Unavailable

6

PUMP ASSY., OIL

15100-MB6-680

Unavailable

7

SPROCKET, OIL PUMP DRIVEN

15134-MB6-000

Unavailable

8

PIPE, OIL STRAINER

15151-MB6-000

Unavailable

9

STRAINER, OIL

15153-MB6-000

Unavailable

10

GASKET, OIL STRAINER

15154-425-000

$7.99

11

CHAIN, STARTING (56L) This part replaces 15161-ME5-003.

28101-KB4-671

$38.46

12

VALVE ASSY., RELIEF

15220-MJ4-000

Unavailable

13

FILTER, OIL This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

13

FILTER, OIL This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

13

FILTER, OIL

15410-MJ0-405

$13.44

14

PIPE, OIL

15511-MB0-000

Unavailable

15

BOSS, OIL FILTER

90019-MB0-000

$8.61

16

BOLT, HEX. (6X16) This part replaces 90021-KE8-000.

90021-KE8-010

$2.28

16

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

17

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

18

WASHER (6X2.3)

90488-MB0-000

$4.37

19

PIN, KNOCK (8X14)

90701-MB4-000

Unavailable

20

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

21

O-RING (18.5X2.4) (ARAI)

91311-MB0-003

$2.03

22

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

22

O-RING (14.8X2.2)

91313-MG7-004

$3.67

23

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

23

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

23

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

24

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

25

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

26

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

28

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

29

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

29

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

30

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

30

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

30

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

31

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.19

31

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

32

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

32

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
