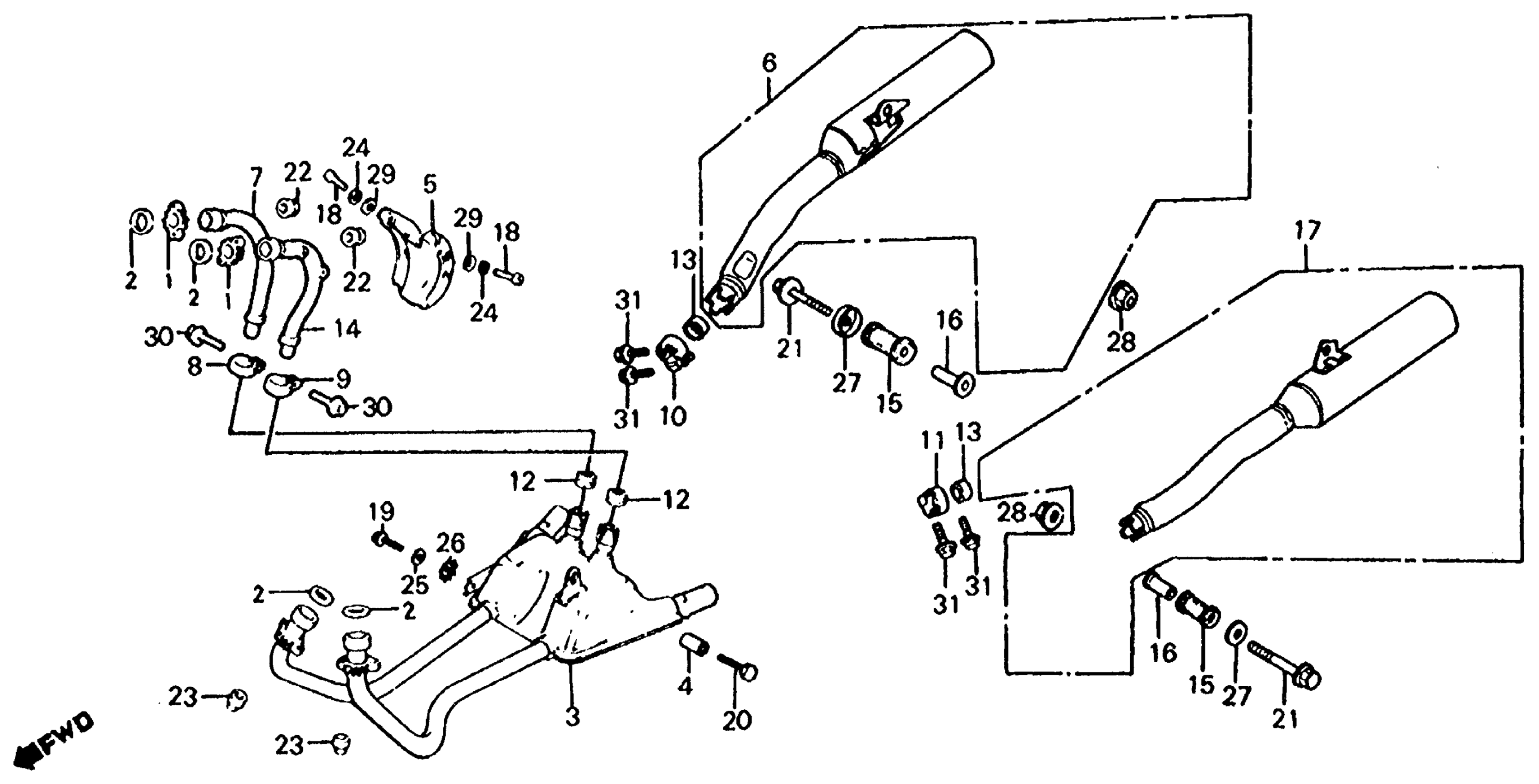

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MB4-000

$43.26

1

JOINT, EX. PIPE (NOT AVAILABLE) This part replaces 18231-MB6-630.

18231-MB4-000

$43.26

2

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$4.94

3

CHAMBER, EX.

18300-MJ4-670

Unavailable

4

COLLAR, CHAMBER

18313-MJ4-670

Unavailable

5

PROTECTOR, RR. EX. PIPE

18316-MB6-003

Unavailable

6

MUFFLER, R. EX. (NOT AVAILABLE)

18330-MJ4-671

Unavailable

7

PIPE, R. RR. EX.

18370-MB6-003

Unavailable

8

BAND, R. EX. PIPE

18373-MB6-003

Unavailable

9

BAND, L. EX. PIPE

18374-MB6-003

Unavailable

10

BAND, MUFFLER

18376-KV0-000

Unavailable

10

BAND, MUFFLER This part replaces 18376-MB2-003.

18376-KV0-000

Unavailable

10

BAND, MUFFLER This part replaces 18376-MJ4-003.

18376-KV0-000

Unavailable

11

BAND, L. MUFFLER This part replaces 18377-MB2-003.

18377-MT3-000

$27.65

11

BAND, L. MUFFLER This part replaces 18377-MJ4-003.

18377-MT3-000

$27.65

11

BAND, L. MUFFLER

18377-MT3-000

$27.65

12

GASKET, EX. This part replaces 18391-MJ4-000.

18392-ML0-000

Unavailable

12

GASKET, EX.

18392-ML0-000

Unavailable

13

GASKET, RR. MUFFLER

18392-MJ4-670

$14.41

14

PIPE, L. RR. EX.

18420-MB6-003

Unavailable

15

RUBBER, MUFFLER SETTING

18421-MB0-000

$5.90

16

COLLAR, MUFFLER SETTING

18422-MB0-000

$6.16

17

MUFFLER, L. EX.

18430-MJ4-671

Unavailable

18

BOLT, FLANGE (6X8)

90012-ZE6-000

$1.72

19

BOLT, HEX. (8X20)

90103-MJ4-670

Unavailable

20

BOLT, FLANGE (8X65)

90156-MA0-770

$6.80

20

BOLT, HEX. (8X65)

90157-KA9-000

$7.32

21

BOLT, SPECIAL FLANGE (8X45)

90158-MB1-000

$4.77

22

NUT, FLANGE (6MM)

94050-06020

$1.67

23

NUT, CAP (6MM)

90304-438-000

$6.64

24

WASHER, SPRING (6MM)

90401-MB2-000

Unavailable

25

WASHER (8.5MM)

90457-422-000

$2.29

26

WASHER, TONGUED

90504-MJ4-670

Unavailable

27

WASHER, SPECIAL (8MM)

90557-MB0-000

Unavailable

28

NUT, FLANGE (8MM)

94050-08000

$0.86

29

WASHER, PLAIN (6MM)

94101-06200

$0.62

30

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

30

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

31

BOLT, FLANGE (8X35) This part replaces 95700-08035-07.

95701-08035-07

$1.28

31

BOLT, FLANGE (8X35)

95701-08035-07

$1.28
